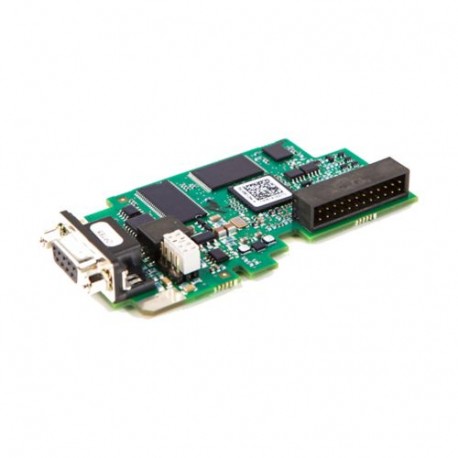

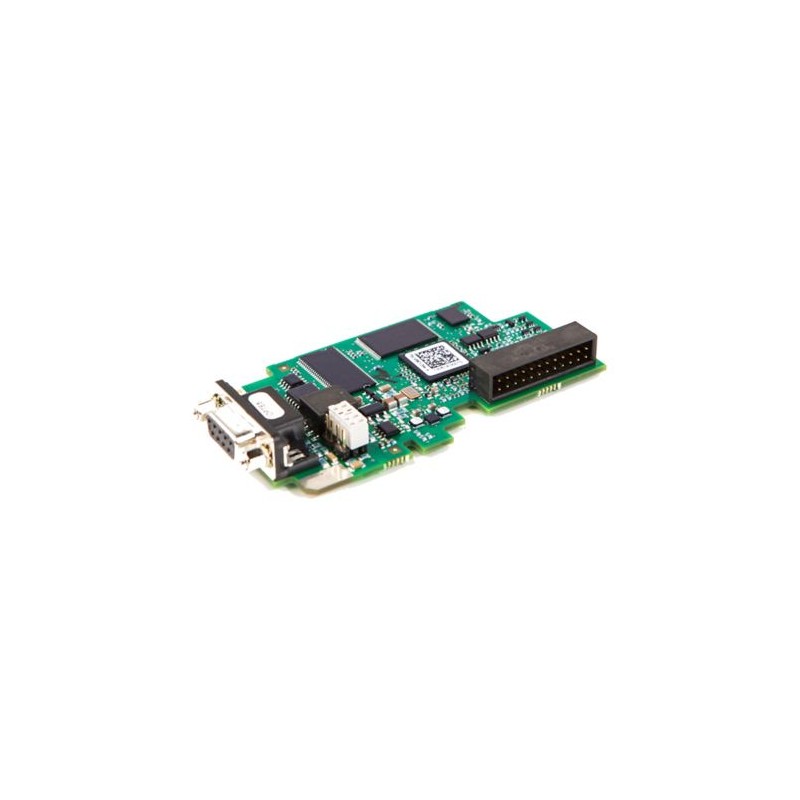

OPTE5 EP-401410 EATON ELECTRIC Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

OPTE5 EP-401410 EATON ELECTRIC

OPTE5

EP-401410

EP-401410

EATON-MOELLER

Maggiori dettagli


Convertitori di frequenza Power XL

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $475.70
Prezzo unitario: $475.70
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton SPX Accessory Fieldbus module
Catalog Number
EP-401410
EAN
4015082969073
Product Length/Depth
120 mm
Product Height
20 mm
Product Width
60 mm
Product Weight
0.1 kg
Certifications
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
CE marking
UL File No.: E134360
UL Listed
IEC/EN 61800-3
Certified by UL for use in Canada
UL report applies to both US and Canada
IEC 61800-5
UL 508C
CSA-C22.2 No. 14
Catalog Notes
The field bus module is plugged into the variable-frequency drive.
Model Code
OPTE5

Informazioni generali

Connection type
1 x D-SUB socket, 9-pin, Field bus
Product Category
Accessories

Comunicazione

Protocol
PROFIBUS-DP

Verifica di progetto

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
