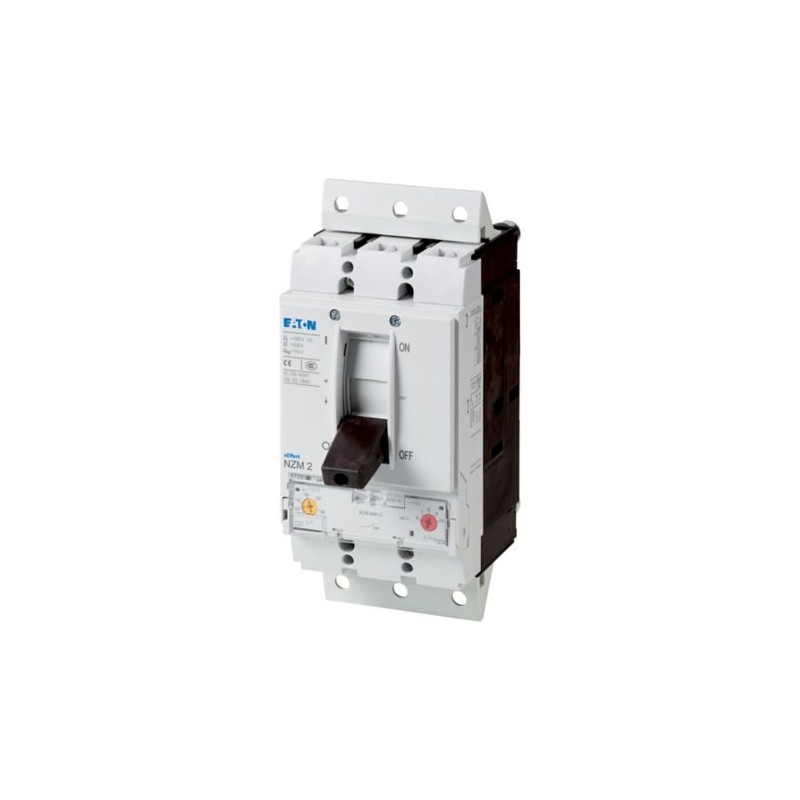

NZMH2-A125-SVE 113333 Y7-113333 EATON ELECTRIC breaker, 3p, 125A, modulo plug-in
NZMH2-A125-SVE
113333
Y7-113333
EATON-MOELLER
breaker, 3p, 125A, modulo plug-in
Auto NZM, 3P, 125A, collegabile
Eaton Moeller series NZM - Molded Case Circuit Breaker. Circuit-breaker, 3p, 125A, plug-in module, H, frame 2, A125-SVE
Interruttore automatico NZM2, 3 poli, Potenza di commutazione 400/415 V 50 Hz( Icu ): 150 kA, Corrente nominale = corrente nominale ininterrotta Corrente nominale = Corrente nominale ininterrotta( In = Iu ): 125 A, Tipo di installazione: Unità a innesto, Collegamento a vite, Standard/Approvazione: IEC, Funzione di protezione: Protezione del sistema e dei cavi
Apparecchi elettrici a bassa tensione > Breaker per trasformatori / generatori / impianti
Interruttori automatici con custodia modellata NZM
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller series NZM molded case circuit breaker thermo-magnetic
Catalog Number
113333
EAN
4015081128686
Product Length/Depth
180 mm
Product Height
245 mm
Product Width
105 mm
Product Weight
2.797 kg
Compliances
RoHS conform
Certifications
IEC
IEC/EN 60947
IEC/EN 60947
Model Code
NZMH2-A125-SVE
Dati tecnici - elettrici
Voltage rating
690 V - 690 V
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated short-time withstand current (t = 0.3 s)
1.9 kA
Rated short-time withstand current (t = 1 s)
1.9 kA
Amperage Rating
125 A
Instantaneous current setting (Ii) - min
750 A
Instantaneous current setting (Ii) - max
1250 A
Overload current setting (Ir) - min
100 A
Overload current setting (Ir) - max
125 A
Short delay current setting (Isd) - min
0 A
Short delay current setting (Isd) - max
0 A
Short-circuit release non-delayed setting - min
750 A
Short-circuit release non-delayed setting - max
1250 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
150 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
150 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
37.5 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
5 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
286 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
105 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
40 kA
Short-circuit total breaktime
< 10 ms
Electrical connection type of main circuit
Screw connection
Isolation
500 V AC (between auxiliary contacts and main contacts)
300 V AC (between the auxiliary contacts)
300 V AC (between the auxiliary contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
5000 operations at 690 V AC-3
7500 operations at 690 V AC-1
10000 operations at 400 V AC-1
10000 operations at 415 V AC-1
6500 operations at 400 V AC-3
6500 operations at 415 V AC-3
7500 operations at 690 V AC-1
10000 operations at 400 V AC-1
10000 operations at 415 V AC-1
6500 operations at 400 V AC-3
6500 operations at 415 V AC-3
Direction of incoming supply
As required
Dati tecnici - comunicazione
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated short-time withstand current (t = 0.3 s)
1.9 kA
Rated short-time withstand current (t = 1 s)
1.9 kA
Amperage Rating
125 A
Instantaneous current setting (Ii) - min
750 A
Instantaneous current setting (Ii) - max
1250 A
Overload current setting (Ir) - min
100 A
Overload current setting (Ir) - max
125 A
Short delay current setting (Isd) - min
0 A
Short delay current setting (Isd) - max
0 A
Short-circuit release non-delayed setting - min
750 A
Short-circuit release non-delayed setting - max
1250 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
150 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
150 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
37.5 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
5 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
286 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
105 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
40 kA
Short-circuit total breaktime
< 10 ms
Electrical connection type of main circuit
Screw connection
Isolation
500 V AC (between auxiliary contacts and main contacts)
300 V AC (between the auxiliary contacts)
300 V AC (between the auxiliary contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
5000 operations at 690 V AC-3
7500 operations at 690 V AC-1
10000 operations at 400 V AC-1
10000 operations at 415 V AC-1
6500 operations at 400 V AC-3
6500 operations at 415 V AC-3
7500 operations at 690 V AC-1
10000 operations at 400 V AC-1
10000 operations at 415 V AC-1
6500 operations at 400 V AC-3
6500 operations at 415 V AC-3
Direction of incoming supply
As required
Dati tecnici - meccanici
Mounting Method
Plug-in unit
Built-in device plug-in technique
DIN rail (top hat rail) mounting optional
Built-in device plug-in technique
DIN rail (top hat rail) mounting optional
Degree of protection
IP20 (basic degree of protection, in the operating controls area)
IP20
IP20
Degree of protection (IP), front side
IP40 (with insulating surround)
IP66 (with door coupling rotary handle)
IP66 (with door coupling rotary handle)
Degree of protection (terminations)
IP00 (terminations, phase isolator and strip terminal)
IP10 (tunnel terminal)
IP10 (tunnel terminal)
Protection against direct contact
Finger and back-of-hand proof to DIN EN 50274/VDE 0106 part 110
Shock resistance
20 g (half-sinusoidal shock 20 ms)
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Position of connection for main current circuit
Front side
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Lifespan, mechanical
20000 operations
| Caratteristica | Valore |
|---|---|
| corrente permanente nominale Iu (EF001389) | 125 A |
| tensione nominale (EF003977) | 690 V |
| corrente limite nominale di disinserzione al corto circuito a 400 V, 50 Hz (EF007048) | 150 kA |
| campo di corrente dell'interruttore di sovraccarico (EF002336) | 100 A |
| intervallo di regolazione dell'attivatore di corto circuito con ritardo breve (EF007129) | 0 A |
| intervallo di regolazione dell'attivatore di corto circuito non ritardato (EF007131) | 750 A |
| potenza dissipata (EF005387) | None W |
| tipologia costruttiva dell'apparecchio (EF008240) | Built-in device plug-in technique |
| protezione dalle dispersioni a terra integrata (EF007296) | false |
| tipo di collegamento circuito elettrico principale (EF006819) | Screw connection |
| adatto per montaggio su guida a cappello (EF007250) | false |
| montaggio su guida a DIN opzionale (EF008904) | true |
| numero di contatti ausiliari, contatti di riposo (EF001377) | 0 |
| numero di contatti ausiliari, contatti di chiusura (EF001376) | 0 |
| numero di contatti ausiliari, invertitori (EF003531) | 0 |
| con segnalatore di intervento presente (EF007006) | false |
| con sganciatore di minima tensione integrato (EF001390) | false |
| numero di poli (EF001391) | 3 |
| posizione del collegamento per circuito elettrico principale (EF006671) | Front side |
| tipo di elemento di azionamento (EF006976) | Rocker lever |
| apparecchio completo con unità di sicurezza (EF008906) | true |
| azionamento a motore integrato (EF006697) | false |
| azionamento a motore opzionale (EF007386) | true |
| grado di protezione (IP) (EF005474) | IP20 |
