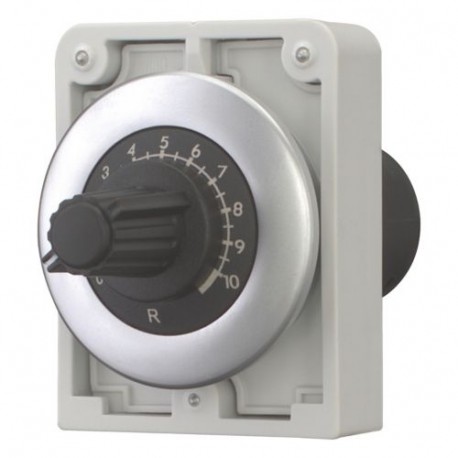

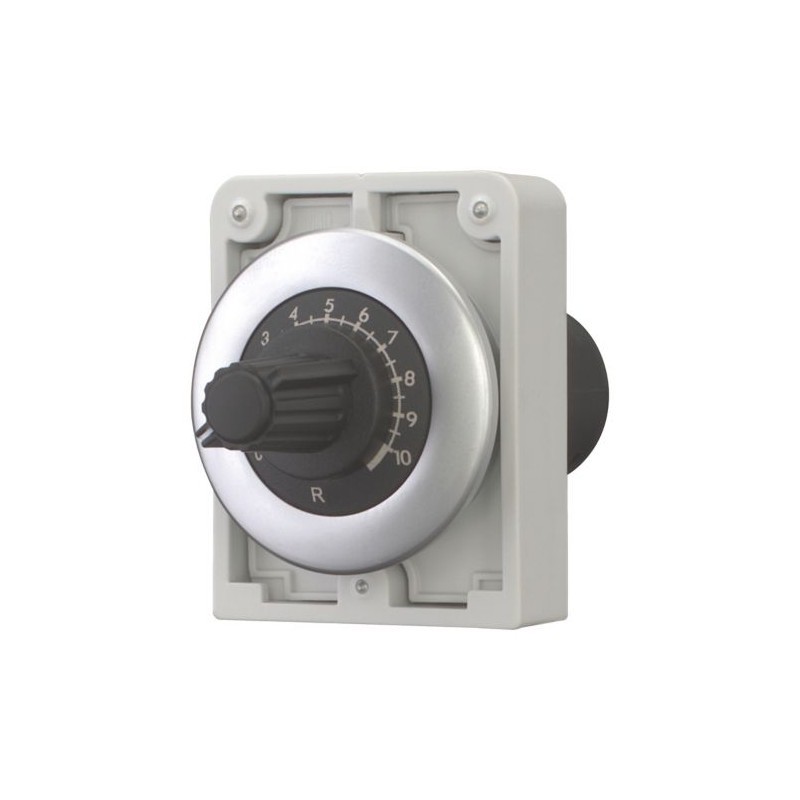

M30C-FR1M 187037 Y7-187037 EATON ELECTRIC Potentiometer, Flat Front, R 1000 kOhm Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

M30C-FR1M 187037 Y7-187037 EATON ELECTRIC Potentiometer, Flat Front, R 1000 kOhm

M30C-FR1M

187037

Y7-187037

EATON-MOELLER

Potentiometer, Flat Front, R = 1000 kOhm

Potenziometro 30 mm R = 1000 kOhm Anello Metallico Frontale Piatto

Eaton Moeller® series M30 Potentiometer, flat front, M30, 30.5 mm, R 1000 kΩ, P 0.5 W, Metal bezel

Potenziometro, Struttura RMQ: frontale piatto, Riferimento gruppo di parti (ad es. DIL): M30, Diametro foro di montaggio: 30,5 mm, Unità singola, Descrizione: 3 morsetti a vite singoli, Precisione del valore di resistenza: ± 10% (lineare), Impedenza: R= 1000 kΩ, Potenza nominale: P= 0,5 W, Grado di protezione: IP66, Cornice in metallo, Connessione SmartWire-DT: no, Norme: IEC/EN 60947, VDE 0660

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Potenziometro per dispositivi di controllo

Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $67.60
Prezzo unitario: $67.60
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series M30 Potentiometer
Catalog Number
187037
EAN
4015081821037
Product Length/Depth
36 mm
Product Height
63 mm
Product Width
46 mm
Product Weight
0.055 kg
Certifications
VDE 0660
IEC/EN 60947
Model Code
M30C-FR1M

Features & Functions

Bezel color
Titanium
Design
Flat front
Electric connection type
Screw connection
Fitted with:
3 individual screw terminals

General

Degree of protection
IP66
NEMA Other
Lifespan, mechanical
25,000 Operations
Opening diameter
30 mm
Overvoltage category
III
Pollution degree
3
Rated impulse withstand voltage (Uimp)
4000 V AC
Type
Potentiometer

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
Not planned

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Terminal capacities

Terminal capacity (solid)
0.5 - 1.5 mm²
Terminal capacity (stranded)
0.5 - 1.5 mm²
Tightening torque
0.5 Nm, Screw terminals

Electrical rating

Power consumption
0.5 W
Rated insulation voltage (Ui)
250 V
Resistance
1000000 Ohm

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0.5 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 187037 Apparecchi elettrici a bassa tensione (EC001027)
Caratteristica Valore
resistenza (EF002431) 1000000 Ohm
assorbimento di potenza (EF000346) 0.5 W
diametro del foro (EF000079) 30 mm
numero di giri (EF006943) 1
tipo di collegamento elettrico (EF003961) raccordo a vite
grado di protezione (IP) (EF005474) IP66
indice di protezione (NEMA) (EF011959) altro
