> EATON - MOELLER>Ausili di controllo e segnalazione >L25LT-WS 025426 ELECTRIC Lente, pulsante luminoso, bianca
Prodotto precedente Prodotto successivo

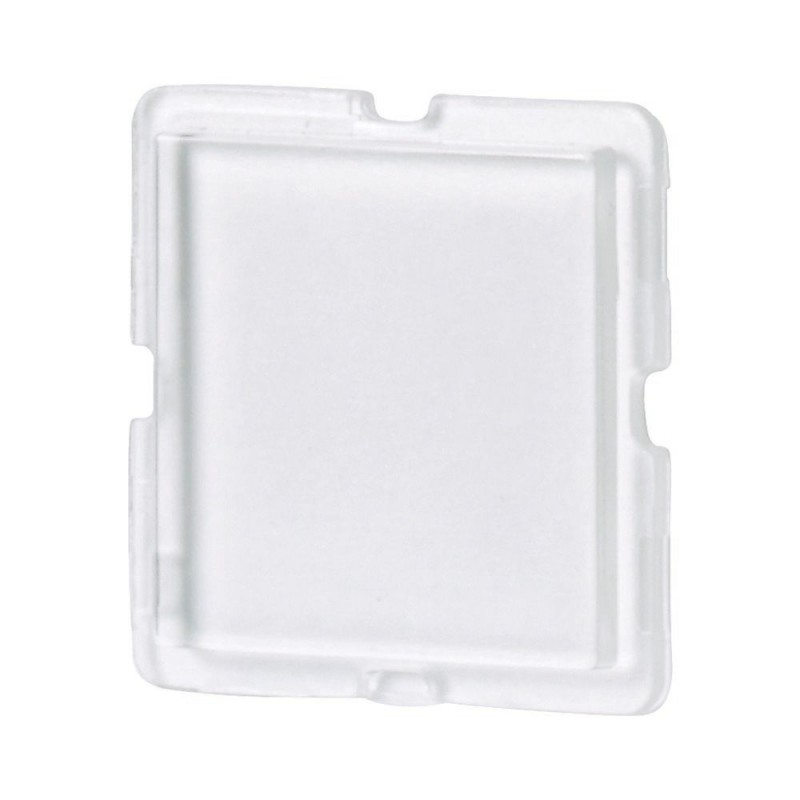

L25LT-WS 025426 EATON ELECTRIC Lente, pulsante luminoso, bianca Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

L25LT-WS 025426 EATON ELECTRIC Lente, pulsante luminoso, bianca

L25LT-WS

025426

EATON-MOELLER

Lente, pulsante luminoso, bianca

Piastra indicatrice bianca trasparente per RMQ16 25x25

Eaton Moeller® series RMQ16 Lens, illuminated pushbutton actuator, white

Maggiori dettagli


apparecchi elettrici a bassa tensione > obiettivo per dispositivi di controllo del circuito

Ausili di controllo e segnalazione

* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $2.39
Prezzo unitario: $2.39

*Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Comprati di solito insieme

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series RMQ16 Accessory Lens
Catalog Number
025426
EAN
4015080254263
Product Length/Depth
2 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
0.002 kg
Compliances
CE
Model Code
L25LT-WS

Features & Functions

Design
Flat
Fitted with:
Customized inscription using the Label Editor
Lens color
White

General

Product category
Accessories
Type
Lenses for indicator lights

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 23 Mbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
L25LT-WS L25LT-WS 025426 EN_025434.pdf 1 Mbytes L25LT-WS L25LT-WS 025426 EN_025434.pdf
