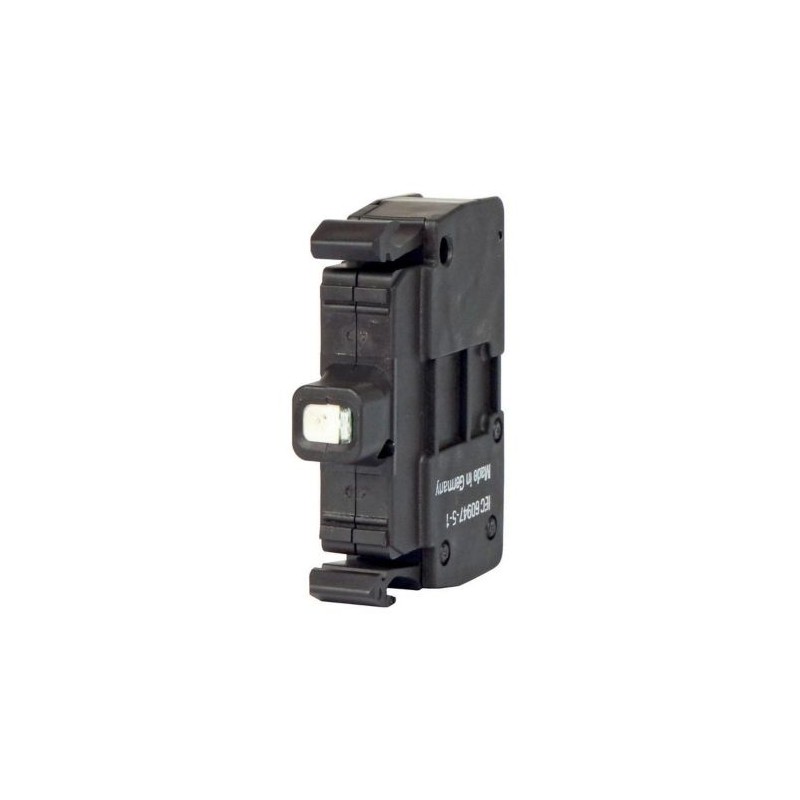

M22-CLED230-G 216577 Y7-216577 EATON ELECTRIC Elemento LED, verde, fissaggio frontale, cage Clamp Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

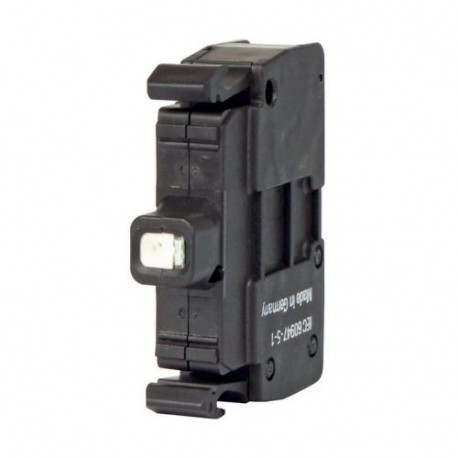

M22-CLED230-G 216577 Y7-216577 EATON ELECTRIC Elemento LED, verde, fissaggio frontale, cage Clamp

M22-CLED230-G

216577

Y7-216577

EATON-MOELLER

20

Elemento LED, verde, fissaggio frontale, cage Clamp

Elemento LED 85-264 V AC Verde Fissaggio Frontale Connessione a Scatto

Eaton Moeller® series M22 LED element, green, front mount, cage clamp M22-CLED230-G

Elemento LED, Fissaggio: Fissaggio frontale, Tecnologia di collegamento: Morsetto a gabbia, Descrizione: Il morsetto a gabbia è un marchio registrato di Wago Kontakttechnik GmbH/Minden, Germania, Tensione nominale di esercizio: Ue= 85 - 264 V AC, 50/60 Hz V, Corrente nominale di esercizio: Ie= 5 - 15 mA, Consumo energetico: Pmax.= 0,33 W, A 230 V, Grado di protezione: IP20, Connessione SmartWire-DT: no, Norme: IEC 60947-5-1

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Portalampada per lampada di controllo circuiti

Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $289.41
Prezzo unitario: $14.47
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Comprati di solito insieme

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
216577
EAN
4015082165772
Product Length/Depth
39 mm
Product Height
39 mm
Product Width
10 mm
Product Weight
0.01 kg
Compliances
CE Marked
Certifications
UL 508
CSA Std. C22.2 No. 94-91
IEC 60947-5
CSA Std. C22.2 No. 14-05
EN 60947-5
VDE
CSA
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
IEC 60947-5-1
UL
CE
CSA Class No.: 3211-03
CSA File No.: 012528
UL File No.: E29184
IEC/EN 60947-5
UL Category Control No.: NKCR
Catalog Notes
Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany
Model Code
M22-CLED230-G

Features & Functions

Fitted with:
Diode
Light source
Light color
Green

General

Degree of protection
IP20
Lifespan, electrical
100,000 h (at 25°C, according to EN60064)
Operating torque
0.8 Nm
Overvoltage category
III
Pollution degree
3
Rated impulse withstand voltage (Uimp)
6000 V AC
Voltage type
AC

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Terminal capacities

Terminal capacity (solid)
0.75 - 2.5 mm²
Terminal capacity (stranded)
0.5 - 2.5 mm²

Electrical rating

Power consumption
Max. 0.33 W
Rated insulation voltage (Ui)
500 V
Rated operational current (Ie) - min
5 mA
Rated operational current (Ie) - max
15 mA
Rated operational voltage (Ue) at AC - max
264 V
Rated operational voltage (Ue) at AC - min
85 V
Rated operational voltage (Ue) at DC - max
0 V
Rated operational voltage (Ue) at DC - min
0 V

Communication

Connection to SmartWire-DT
No
Connection type
Front fixing

Contacts

Force for positive opening - min
0 N

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 216577 Apparecchi elettrici a bassa tensione (EC000204)
Caratteristica Valore
trasformatore integrato (EF001358) false
con preresistenza integrata (EF001399) false
con corpo luminoso (EF005905) true
con diodo integrato (EF001400) true
portalampada (EF000048) None
tensione d'esercizio nominale Ue per AC 50 Hz (EF007029) 85 V
tensione d'esercizio nominale Ue per AC 60 Hz (EF007030) 85 V
tensione d'esercizio nominale Ue per DC (EF007031) 0 V
tipo di tensione per l'azionamento (EF008242) AC
sorgente luminosa (EF002423) LED
tipo di collegamento circuito elettrico ausiliario (EF006820) Spring clamp connection
colore del corpo luminoso (EF001402) Green
tipo di fissaggio (EF002442) Front fastening

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22-CLED230-G Y7-216577 216577 EN_216380.pdf 100 Kbytes M22-CLED230-G Y7-216577 216577 EN_216380.pdf
