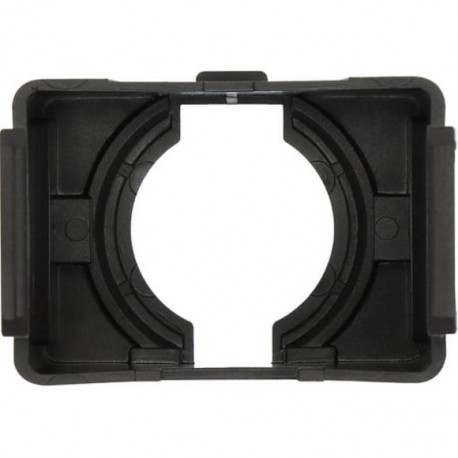

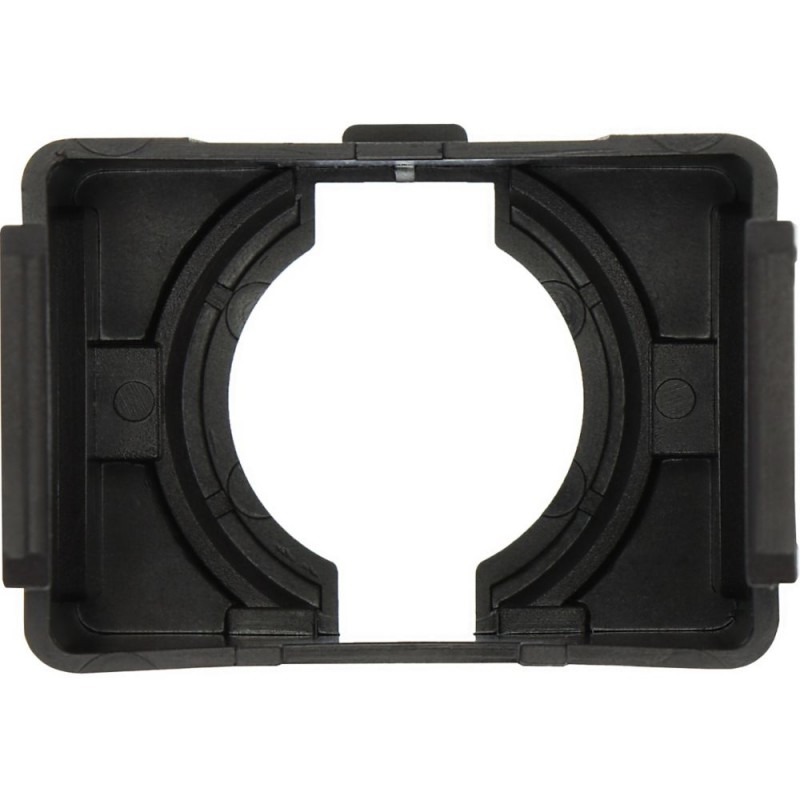

ZVV-P3 024671 Y7-24671 EATON ELECTRIC Prolunga interblocco, 25mm, T5b, P3 Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

ZVV-P3 024671 Y7-24671 EATON ELECTRIC Prolunga interblocco, 25mm, T5b, P3

ZVV-P3

024671

Y7-24671

EATON-MOELLER

Prolunga interblocco, 25mm, T5b, P3

Prolunga ad incastro 25 mm per T5(B) P3

Eaton Moeller® series ZVV Interlock extension, 25mm, T5b, P3

Accessori per interruttori a camme a T/sezionatori P secondo IEC/EN60947-3, design generale: materiale isolante-scatola per montaggio superficiale, montaggio ad incasso, montaggio centrale, montaggio posteriore Montaggio su scheda di distribuzione di servizio IVS. Gli interruttori a T capaci, robusti e compatti sono utilizzati nell'industria, nei lavori manuali e nella gestione dei servizi edili. È possibile scegliere tra una varietà di circuiti standard. Come componenti aggiuntivi vengono realizzati circuiti speciali specifici per il cliente. Le possibilità sono quasi illimitate. L'ampia gamma di accessori completa la gamma di interruttori e completa le possibilità di applicazione.

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Accessori per la tecnologia degli interruttori a bassa tensione

Sezionatori e interruttori a camme

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $5.66
Prezzo unitario: $5.66
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

Comprati di solito insieme

Più venduti

Dettagli



General specifications

Product Name
Eaton Moeller® series ZVV Accessory Interlock extension
Catalog Number
024671
EAN
4015080246718
Product Length/Depth
33 mm
Product Height
25 mm
Product Width
33 mm
Product Weight
0.009 kg
Certifications
UL/CSA certification not required
Model Code
ZVV-P3

Specifiche del prodotto

Type
Interlock elements
Product Category
Interlock extensions
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Accessory/spare part type
Mechanical locking
Used with
UV-P3
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Shaft length
25 mm
Static heat dissipation, non-current-dependent Pvs
0 W

ETIM for 024671 Apparecchi elettrici a bassa tensione (EC002498)
Caratteristica Valore
tipo di accessori/pezzi di ricambio (EF000215) bloccaggio meccanico
accessorio (EF013236)
pezzo di ricambio (EF013237) No

Datasheet - PDF
