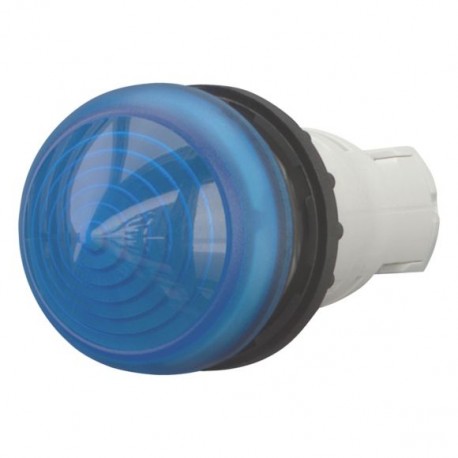

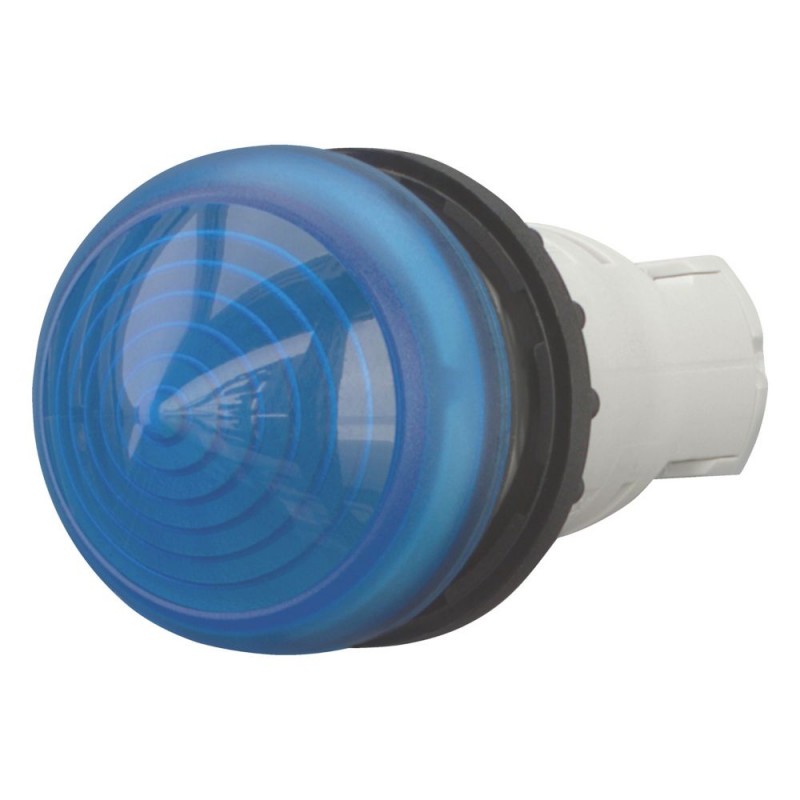

M22-LCH-B 216918 Y7-216918 EATON ELECTRIC Indicatore luminoso, compatto, sporgente, azzurro Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

M22-LCH-B 216918 Y7-216918 EATON ELECTRIC Indicatore luminoso, compatto, sporgente, azzurro

M22-LCH-B

216918

Y7-216918

EATON-MOELLER

Indicatore luminoso, compatto, sporgente, azzurro

LED; 22 millimetri; Compatto; Conico; Blu

Eaton Moeller® series M22 Indicator light, RMQ-Titan, Extended, conical, without light elements, For filament bulbs, neon bulbs and LEDs up to 2.4 W, with BA 9s lamp socket, Blue

Indicatore luminoso, Gamma prodotti: RMQ-Titan, Unità completa, Design: Esteso, conico, Descrizione: senza elementi luminosi, Per lampadine a incandescenza, neon e lampadine LED fino a 2,4 W, con portalampada BA 9s, Colore lente: Blu, Grado di protezione: IP66, IP67, IP69K, Collegamento SmartWire-DT: no, Dimensioni frontali: 29,7, Norme: IEC/EN 60947, VDE 0660

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Lampada da quadro

Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $15.77
Prezzo unitario: $15.77
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series M22 Indicator light
Catalog Number
216918
EAN
4015082169183
Product Length/Depth
57 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.017 kg
Certifications
CE
CSA
IEC/EN 60947
UL
UL 508
UL Category Control No.: NKCR
UL File No.: E29184
CSA Class No.: 3211-03
CSA File No.: 012528
CSA-C22.2 No. 14-05
VDE 0660
IEC/EN 60947-5
Catalog Notes
Without light elements
Model Code
M22-LCH-B

Features & Functions

Bezel color
Chrome
Bezel material
Other
Design
Extended, conical
Fitted with:
BA 9s lamp socket
Front ring
Lens color
Blue

General

Degree of protection
NEMA 4X, 13
Degree of protection (front side)
IP67/IP69K
Opening diameter
22.5 mm
Overvoltage category
III
Pollution degree
3
Product category
RMQ-Titan
Rated impulse withstand voltage (Uimp)
4000 V AC
Size
Front diameter: 29.7 mm
Type
Indicator lights

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Terminal capacities

Terminal capacity
0.5 - 1.5 mm², solid
0.5 - 1.5 mm², stranded

Electrical rating

Rated insulation voltage (Ui)
250 V

Communication

Connection to SmartWire-DT
No

Contacts

Force for positive opening - min
0 N

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 216918 Apparecchi elettrici a bassa tensione (EC000223)
Caratteristica Valore
numero di segnalatori luminosi installabili (EF006669) 1
colore della lente (EF000207) blu
tipo di lente (EF006253) tondo
diametro del foro (EF000079) 22.5 mm
larghezza dell'apertura (EF004565) 0 mm
altezza dell'apertura (EF004778) 22.5 mm
con anello frontale (EF006014) Sì
materiale dell'anello frontale (EF005972) altro
colore dell'anello frontale (EF002429) cromo
versione della lente (EF008343) alto
grado di protezione (IP), lato frontale (EF003118) IP67/IP69K
indice di protezione (NEMA) (EF011959) 4X, 13

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22-LCH-B Y7-216918 216918 EN_289241.pdf 3 Mbytes M22-LCH-B Y7-216918 216918 EN_289241.pdf
