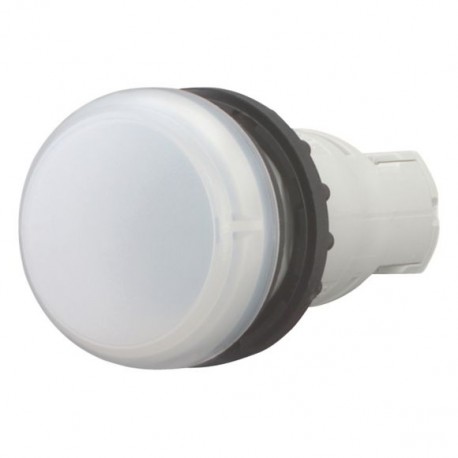

M22-LC-W 216907 Y7-216907 EATON ELECTRIC Indicatore luminoso, compatto, piatto, bianco Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

M22-LC-W 216907 Y7-216907 EATON ELECTRIC Indicatore luminoso, compatto, piatto, bianco

M22-LC-W

216907

Y7-216907

EATON-MOELLER

Indicatore luminoso, compatto, piatto, bianco

Indicatore luminoso 22 mm Compact Bianco

Eaton Moeller® series M22 Indicator light, RMQ-Titan, Flush, without light elements, For filament bulbs, neon bulbs and LEDs up to 2.4 W, with BA 9s lamp socket, white

Indicatore luminoso, Gamma prodotti: RMQ-Titan, Unità completa, Design: Incasso, Descrizione: senza elementi luminosi, Per lampadine a filamento, neon e lampadine LED fino a 2,4 W, con portalampada BA 9s, Colore lente: bianco, Grado di protezione: IP66, IP67, IP69K, Collegamento SmartWire-DT: no, Dimensioni frontali: 29,7, Norme: IEC/EN 60947, VDE 0660

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Lampada da quadro

Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $13.99
Prezzo unitario: $13.99
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series M22 Indicator light
Catalog Number
216907
EAN
4015082169077
Product Length/Depth
53 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.017 kg
Certifications
IEC/EN 60947-5
VDE 0660
CE
UL
CSA
CSA-C22.2 No. 14-05
UL 508
IEC/EN 60947
UL Category Control No.: NKCR
UL File No.: E29184
CSA Class No.: 3211-03
CSA File No.: 012528
Catalog Notes
Without light elements
Model Code
M22-LC-W

Features & Functions

Bezel color
Chrome
Bezel material
Other
Design
Flush
Fitted with:
BA 9s lamp socket
Lens color
White

General

Degree of protection
NEMA 4X, 13
Degree of protection (front side)
IP67/IP69K
Opening diameter
22.5 mm
Overvoltage category
III
Pollution degree
3
Product category
RMQ-Titan
Rated impulse withstand voltage (Uimp)
4000 V AC
Size
Front diameter: 29.7 mm
Type
Indicator lights

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Terminal capacities

Terminal capacity
0.5 - 1.5 mm², stranded
0.5 - 1.5 mm², solid

Electrical rating

Rated insulation voltage (Ui)
250 V

Communication

Connection to SmartWire-DT
No

Contacts

Force for positive opening - min
0 N

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 216907 Apparecchi elettrici a bassa tensione (EC000223)
Caratteristica Valore
numero di segnalatori luminosi installabili (EF006669) 1
colore della lente (EF000207) bianco
tipo di lente (EF006253) tondo
diametro del foro (EF000079) 22.5 mm
larghezza dell'apertura (EF004565) 0 mm
altezza dell'apertura (EF004778) 22.5 mm
con anello frontale (EF006014) No
materiale dell'anello frontale (EF005972) altro
colore dell'anello frontale (EF002429) cromo
versione della lente (EF008343) piatto
grado di protezione (IP), lato frontale (EF003118) IP67/IP69K
indice di protezione (NEMA) (EF011959) 4X, 13

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22-LC-W Y7-216907 216907 EN_289241.pdf 3 Mbytes M22-LC-W Y7-216907 216907 EN_289241.pdf
