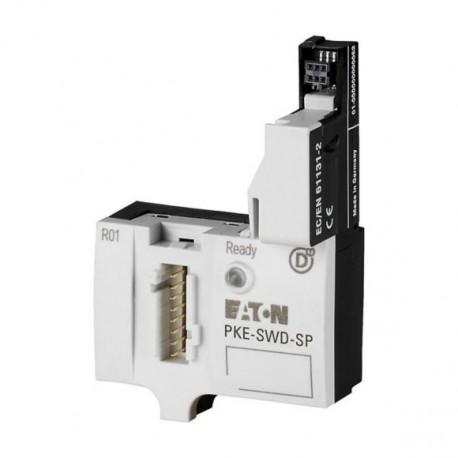

PKE-SWD-SP 150614 Y7-150614 EATON ELECTRIC Elemento funzionale, SmartWire-DT, PKE / XTPE
PKE-SWD-SP
150614
Y7-150614
EATON-MOELLER
Elemento funzionale, SmartWire-DT, PKE / XTPE
Elemento funzione SmartWire-DT per PKE12/32
Eaton Moeller® series PKE Function element, SmartWire-DT, PKE / XTPE
Elemento funzionale, collegamento SmartWire-DT: Sì, utilizzabile con: PKE12, PKE32, PKE65
Apparecchi elettrici a bassa tensione > Accessori per la tecnologia degli interruttori a bassa tensione
Interruttori di protezione motore elettronici
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Comprati di solito insieme
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series PKE Function element
Catalog Number
150614
EAN
4015081468669
Product Length/Depth
71 mm
Product Height
46.8 mm
Product Width
45 mm
Product Weight
0.028 kg
Certifications
CSA
UL
CE
UL508
CSA-C22.2 No. 14
CSA Class No.: 3211-07
UL Category Control No.: NKCR
CSA File No.: 165628
IEC60847-4-1
UL File No.: E29184
IEC/EN 61131-2
UL Category Control No.: NLDX, NLDX7
UL
CE
UL508
CSA-C22.2 No. 14
CSA Class No.: 3211-07
UL Category Control No.: NKCR
CSA File No.: 165628
IEC60847-4-1
UL File No.: E29184
IEC/EN 61131-2
UL Category Control No.: NLDX, NLDX7
Model Code
PKE-SWD-SP
Features & Functions
Functions
Motor protection
Display of Set value of overload releases
Display of Contactor state PKE
Display of Trip indications (Overload, Short-circuit,...)
Display of Part no. of trip block
Display of Motor current in %
Display of Thermal motor image in %
Remote disconnection of motor-protective circuit-breaker
Motor protection for heavy starting duty
Display of Set time lag (CLASS)
For connecting the motor-protective circuit-breaker with PKE-XTU(W)A-... trip blocks(motor protection) to SmartWire-DT
Display of Set value of overload releases
Display of Contactor state PKE
Display of Trip indications (Overload, Short-circuit,...)
Display of Part no. of trip block
Display of Motor current in %
Display of Thermal motor image in %
Remote disconnection of motor-protective circuit-breaker
Motor protection for heavy starting duty
Display of Set time lag (CLASS)
For connecting the motor-protective circuit-breaker with PKE-XTU(W)A-... trip blocks(motor protection) to SmartWire-DT
General
Accessory/spare part type
Communication and measuring function
Current consumption
35 mA, SmartWire-DT network, 15-V-SWD supply
Degree of protection
IP20
Overvoltage category
II
Pollution degree
2
Product category
Ambient conditions, mechanical
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Mounting position
As PKE12/35/65
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient storage temperature - min
-30 °C
Ambient storage temperature - max
70 °C
Environmental conditions
Condensation: prevent with appropriate measures
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Electro magnetic compatibility
Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Burst impulse
1 kV, SmartWire-DT cable, Signal cable, according to IEC/EN 61131-2, Level 3
1 kV, CAN/DP-bus cable, SmartWire-DT cables, according to IEC/EN 61131-2, Level 3
1 kV, CAN/DP-bus cable, SmartWire-DT cables, according to IEC/EN 61131-2, Level 3
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Electromagnetic fields
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Radio interference class
Class A (EN 55011)
Communication
Addressing
Address set automatically
Connection to SmartWire-DT
Yes
Connection type
SWD: Plug, 8-pole
External device plug SWD4-8SF2-5, SmartWire-DT
External device plug SWD4-8SF2-5, SmartWire-DT
LED indicator
Status indication of SmartWire-DT network: Green LED
Station
SmartWire-DT slave, SmartWire-DT network
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0.5 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| tipo di accessori/pezzi di ricambio (EF000215) | comunicazione e funzione di misura |
| accessorio (EF013236) | Sì |
| pezzo di ricambio (EF013237) | No |
