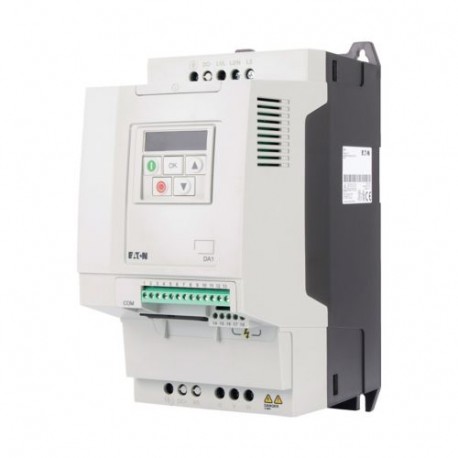

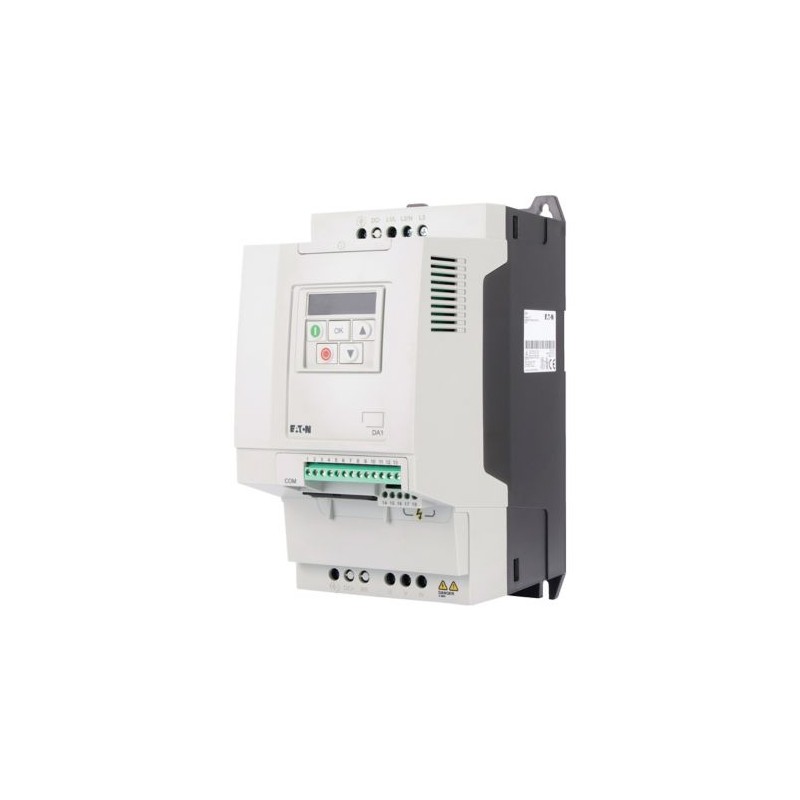

DA1-32024FB-A20C 169099 Y7-169099 EATON ELECTRIC PowerXL Drive Serie DA1
DA1-32024FB-A20C
169099
Y7-169099
EATON-MOELLER
PowerXL Drive - Serie DA1
Convertitore di frequenza Ent: 3 x 230 V Sal: 3 x 230 V 24 A 5,5 kW
Eaton DA1 Variable frequency drive, 230 V AC, 3-phase, 24 A, 5.5 kW, IP20/NEMA 0, Radio interference suppression filter, 7-digital display assembly
Convertitore di frequenza, Riferimento gruppo di parti (ad es. DIL): DA1, Tensione nominale di esercizio: Eu = 230 V AC, 3 fasi, 240 V AC, 3 fasi, Tensione di uscita con Ve: U2 = 230 V AC, 3 fasi, 240 V AC, 3 fasi, Tensione di rete (50/60 Hz): ULN = 200 (-10%) - 240 (+10%) V, Corrente nominale di esercizio Con sovraccarico del 150%: Cioè = 24 A, Nota: Corrente nominale di funzionamento a una frequenza di funzionamento di 16 kHz e una temperatura dell'aria ambiente di +50 °C, Nota: Ciclo di sovraccarico di 60 s ogni 600 s, Potenza nominale del motore assegnata Nota: per motori asincroni trifase a 4 poli, con ventilazione interna ed esterna normale con 1500 giri/min-1 a 50 Hz o 1800 min-1 a 60 Hz, Ciclo di sovraccarico di 60 s ogni 600 s, a 230 V, 50 Hz, potenza nominale del motore 150 % di sovraccarico: p = 5,5 kW, 150 % di sovraccarico: IM = 19,6 A, potenza nominale del motore Nota: con 220 - 240 V, 60 Hz, potenza nominale del motore 150 % di sovraccarico: p = 7,5 HP, potenza nominale del motore 150 % di sovraccarico: IM = 22 A, Grado di protezione: IP20/NEMA 0, Interfaccia/bus di campo (integrato): OP-Bus (RS485)/Modbus RTU, CANopen®, Connessione bus di campo (opzionale): Ethernet IP, DeviceNet, PROFIBUS, PROFINET, Modbus-TCP, EtherCAT, SmartWire-DT, Dotato di: Filtro antidisturbo radio, Chopper freno, Protezione PCB aggiuntiva, Set di 7 display digitali, Dimensioni del telaio: FS3, Norme: Specifiche per i requisiti generali: IEC/EN 61800-2, Requisiti EMC: IEC/EN 61800-3, Requisiti di sicurezza: IEC/EN 61800-5-1
Apparecchi elettrici a bassa tensione > Convertitore di frequenza inferiore a 1 Kv
Convertitori di frequenza Power XL
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton DA1 Variable frequency drive
Catalog Number
169099
EAN
4015081655830
Product Length/Depth
204 mm
Product Height
273 mm
Product Width
131 mm
Product Weight
3.5 kg
Certifications
CSA-C22.2 No. 14
IEC/EN61800-3
IEC/EN 61800-3
RoHS, ISO 9001
UL report applies to both US and Canada
CUL
EAC
UL
UL File No.: E172143
RCM
Specification for general requirements: IEC/EN 61800-2
CE
Certified by UL for use in Canada
IEC/EN61800-5
Safety: EN 61800-5-1: 2003
UkrSEPRO
UL 508C
UL Category Control No.: NMMS, NMMS7
IEC/EN61800-3
IEC/EN 61800-3
RoHS, ISO 9001
UL report applies to both US and Canada
CUL
EAC
UL
UL File No.: E172143
RCM
Specification for general requirements: IEC/EN 61800-2
CE
Certified by UL for use in Canada
IEC/EN61800-5
Safety: EN 61800-5-1: 2003
UkrSEPRO
UL 508C
UL Category Control No.: NMMS, NMMS7
Catalog Notes
The brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.
Model Code
DA1-32024FB-A20C
General
Cable length
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
C2 ≤ 5 m, Radio interference level, maximum motor cable length
150 m, unscreened, maximum permissible, Motor feeder
200 m, screened, with motor choke, maximum permissible, Motor feeder
C3 ≤ 25 m, Radio interference level, maximum motor cable length
100 m, screened, maximum permissible, Motor feeder
C2 ≤ 5 m, Radio interference level, maximum motor cable length
150 m, unscreened, maximum permissible, Motor feeder
200 m, screened, with motor choke, maximum permissible, Motor feeder
C3 ≤ 25 m, Radio interference level, maximum motor cable length
100 m, screened, maximum permissible, Motor feeder
Communication interface
EtherCAT, optional
SmartWire-DT, optional
DeviceNet, optional
PROFIBUS, optional
Ethernet IP, optional
Modbus RTU, built in
PROFINET, optional
OP-Bus (RS485), built in
CANopen®, built in
Modbus-TCP, optional
SmartWire-DT, optional
DeviceNet, optional
PROFIBUS, optional
Ethernet IP, optional
Modbus RTU, built in
PROFINET, optional
OP-Bus (RS485), built in
CANopen®, built in
Modbus-TCP, optional
Connection to SmartWire-DT
Yes
In conjunction with DX-NET-SWD1 SmartWire DT module
In conjunction with DX-NET-SWD1 SmartWire DT module
Degree of protection
IP20
NEMA Other
NEMA Other
Electromagnetic compatibility
1st and 2nd environments (according to EN 61800-3)
Fitted with:
Radio interference suppression filter
PC connection
Brake chopper
Internal DC link
IGBT inverter
Breaking resistance
Control unit
7-digital display assembly
Additional PCB protection
PC connection
Brake chopper
Internal DC link
IGBT inverter
Breaking resistance
Control unit
7-digital display assembly
Additional PCB protection
Frame size
FS3
Functions
4-quadrant operation possible
Mounting position
Vertical
Product Category
Variable frequency drives
Protection
Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)
Protocol
MODBUS
PROFIBUS
CAN
PROFINET IO
DeviceNet
EtherNet/IP
Other bus systems
TCP/IP
PROFIBUS
CAN
PROFINET IO
DeviceNet
EtherNet/IP
Other bus systems
TCP/IP
Safety function/level
STO (Safe Torque Off, SIL2, PLc Cat 2)
Suitable for
Branch circuits, (UL/CSA)
Radio interference class
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Ambient operating temperature - min
-10 °C
Altitude
Max. 4000 m
Above 1000 m with 1 % derating per 100 m
Max. 1000 m
Above 1000 m with 1 % derating per 100 m
Max. 1000 m
Ambient operating temperature - max
50 °C
Ambient operating temperature at 150% overload - min
-10 °C
Ambient operating temperature at 150% overload - max
50 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
60 °C
Climatic proofing
< 95 average relative humidity (RH), no condensation, no corrosion
Main circuit
Efficiency
96.9 % (η)
Heat dissipation at current/speed
117 W at 25% current and 50% speed
125 W at 50% current and 0% speed
151 W at 50% current and 50% speed
171 W at 50% current and 90% speed
201 W at 100% current and 0% speed
229 W at 100% current and 50% speed
257 W at 100% current and 90% speed
94 W at 25% current and 0% speed
125 W at 50% current and 0% speed
151 W at 50% current and 50% speed
171 W at 50% current and 90% speed
201 W at 100% current and 0% speed
229 W at 100% current and 50% speed
257 W at 100% current and 90% speed
94 W at 25% current and 0% speed
Input current ILN at 150% overload
26.4 A
Leakage current at ground IPE - max
0.93 mA
Mains switch-on frequency
Maximum of one time every 30 seconds
Mains voltage - min
200 V
Mains voltage - max
240 V
Operating mode
U/f control
Sensorless vector control (SLV)
Optional: Vector control with feedback (CLV)
Speed control with slip compensation
Sensorless vector control (SLV)
Optional: Vector control with feedback (CLV)
Speed control with slip compensation
Output frequency - min
0 Hz
Output frequency - max
500 Hz
Output voltage (U2)
230 V AC, 3-phase
240 V AC, 3-phase
240 V AC, 3-phase
Overload current IL at 150% overload
36 A
Rated control supply voltage
10 V DC (Us, max. 10 mA)
Rated frequency - min
48 Hz
Rated frequency - max
62 Hz
Rated operational current (Ie) at 150% overload
24 A
Rated operational power at 220/230 V, 50 Hz, 1-phase
5.5 kW
Rated operational voltage
230 V AC, 3-phase
240 V AC, 3-phase
240 V AC, 3-phase
Resolution
0.1 Hz (Frequency resolution, setpoint value)
Short-circuit protection rating
40 A, UL (Class CC or J), Safety device (fuse or miniature circuit-breaker), Power Wiring
Starting current - max
200 %, IH, max. starting current (High Overload), for 4 seconds every 40 seconds, Power section
Supply frequency
50/60 Hz
Switching frequency
16 kHz, 4 - 16 kHz adjustable (audible), fPWM, Power section, Main circuit
System configuration type
AC supply systems with earthed center point
Voltage rating - max
240 VAC
Motor rating
Assigned motor current IM at 220 - 240 V, 60 Hz, 150% overload
22 A
Assigned motor current IM at 230 V, 50 Hz, 150% overload
19.6 A
Assigned motor power at 230/240 V, 60 Hz, 1-phase
7.5 HP
Apparent power
Apparent power at 230 V
9.56 kVA
Apparent power at 240 V
9.98 kVA
Braking function
Braking resistance
20 Ω
Braking torque
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
Max. 30 % MN, Standard - Main circuit
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
Max. 30 % MN, Standard - Main circuit
Switch-on threshold for the braking transistor
390 VDC
Control circuit
Number of inputs (analog)
2
Number of inputs (digital)
5
Number of outputs (analog)
2
Number of outputs (digital)
2
Number of relay outputs
2 (parameterizable, 1 N/O and 1 changeover contact, 6 A (250 V, AC-1) / 5 A (30 V, DC-1))
Rated control voltage (Uc)
24 V DC (external, max. 100 mA)
Design verification
Equipment heat dissipation, current-dependent Pvid
170.5 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
24 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| tensione di rete (EF006780) | 200 V |
| frequenza di rete (EF006783) | 50/60 Hz |
| numero di fasi d'entrata (EF007117) | 3 |
| numero di fasi d'uscita (EF006998) | 3 |
| max. frequenza d'uscita (EF007350) | 500 Hz |
| tensione d'uscita massima (EF009560) | 250 V |
| corrente di uscita nominale I2N (EF009561) | 24 A |
| max. potenza erogata con carico quadrato a tensione d'uscita nominale (EF007366) | 5.5 kW |
| max. potenza erogata con carico lineare a tensione d'uscita nominale (EF007364) | 5.5 kW |
| assorbimento di potenza (EF000346) | 170.5 W |
| tolleranza di frequenza di rete simmetrica relativa (EF007454) | 10 % |
| tolleranza di tensione di rete simmetrica relativa (EF007453) | 10 % |
| numero di uscite analogiche (EF001995) | 2 |
| numero di ingressi analogici (EF001994) | 2 |
| numero di uscite digitali (EF001993) | 2 |
| numero di ingressi digitali (EF001992) | 5 |
| con elemento di comando (EF001538) | Sì |
| impiego ammesso in ambito industriale (EF007294) | Sì |
| impiego ammesso in ambito residenziale e commerciale (EF007295) | Sì |
| supporta il protocollo per TCP/IP (EF003050) | Sì |
| supporta il protocollo per PROFIBUS (EF003052) | Sì |
| supporta il protocollo per CAN (EF003053) | Sì |
| supporta il protocollo per INTERBUS (EF003054) | No |
| supporta il protocollo per ASI (EF003051) | No |
| supporta il protocollo per EIB (EF003055) | No |
| supporta il protocollo pour Modbus (EF003057) | Sì |
| supporta il protocollo per Data-Highway (EF003058) | No |
| supporta il protocollo per DeviceNet (EF003059) | Sì |
| supporta il protocollo per SUCONET (EF003060) | No |
| supporta il protocollo per LON (EF003017) | No |
| supporta il protocollo per PROFINET IO (EF007525) | Sì |
| supporta il protocollo per PROFINET CBA (EF007524) | No |
| supporta il protocollo per SERCOS (EF006657) | No |
| supporta il protocollo per Foundation Fieldbus (EF007522) | No |
| supporta il protocollo per EtherNet/IP (EF007521) | Sì |
| supporta il protocollo per AS-Interface Safety at Work (EF007519) | No |
| supporta il protocollo per DeviceNet Safety (EF007520) | No |
| supporta il protocollo per INTERBUS-Safety (EF006662) | No |
| supporta il protocollo per PROFIsafe (EF007526) | No |
| supporta il protocollo per SafetyBUS p (EF007527) | No |
| supporta il protocollo per BACnet (EF011944) | No |
| supporta il protocollo per altri sistemi bus (EF003062) | Sì |
| numero di interfacce HW Industrial Ethernet (EF003020) | 0 |
| numero di interfacce PROFINET (EF006932) | 0 |
| numero di interfacce HW seriali RS232 (EF003021) | 0 |
| numero di interfacce HW seriali RS422 (EF003022) | 0 |
| numero di interfacce HW seriali RS485 (EF003023) | 1 |
| numero di interfacce HW seriali TTY (EF003024) | 0 |
| numero di interfacce HW USB (EF003025) | 0 |
| numero di interfacce HW parallele (EF003026) | 0 |
| numero di interfacce HW altre (EF003027) | 0 |
| con interfaccia ottica (EF003028) | No |
| con collegamento PC (EF006107) | Sì |
| chopper di frenatura integrato (EF007293) | Sì |
| funzionamento a 4 quadranti possibile (EF006803) | Sì |
| tipo di convertitore (EF006978) | inverter a tensione impressa |
| grado di protezione (IP) (EF005474) | IP20 |
| indice di protezione (NEMA) (EF011959) | altro |
| altezza (EF000040) | 273 mm |
| larghezza (EF000008) | 131 mm |
| profondità (EF000049) | 204 mm |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| DA1-32024FB-A20C Y7-169099 169099 IT_169099.pdf | 129 Kbytes |
|
Recensioni: (0) ▲
Nessun commento per il momento.
Inserisci recensione
nascondi form
| Valutazione: |
|
| Nome: | |
| Email: | |
| Titolo: | |
| Testo: | |
| Mi consiglia questo prodotto da acquistare? | |
|
|
|
| Inserisci recensione | |
Tutti i feedback che riceviamo dagli elementi che offriamo sono reali e verificati. Un piccolo gesto, ma di grande valore. Quindi grazie per quel minuto si spende in noi lasciare il vostro parere e punteggio sui prodotti, perché ci aiuta a continuare a migliorare e di offrire ancora maggiore qualità del servizio.
