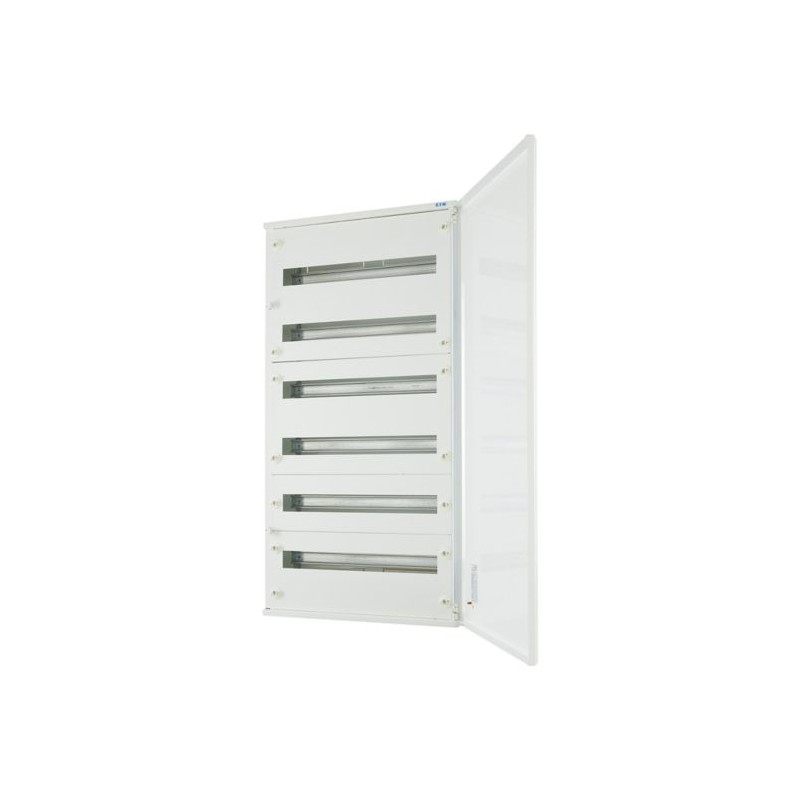

BF-O-6/144-E 285220 Y7-285220 EATON ELECTRIC superficie armadio 6 righe 144mod Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

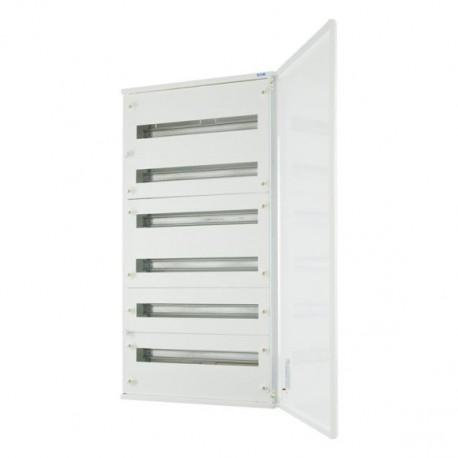

BF-O-6/144-E 285220 Y7-285220 EATON ELECTRIC superficie armadio 6 righe 144mod

BF-O-6/144-E

285220

Y7-285220

EATON-MOELLER

superficie armadio 6 righe 144mod

Braccio. Metallo. superficie opaca della porta, 24 UM per fila, 6 file,

BF-O-6/144-E Q. PARETE 6X24MOD 545L 1050H

Maggiori dettagli


sistemi di distribuzione elettrica (inclusi distributori per impianti) > Quadro di distribuzione piccolo

Scatole di distribuzione compatti

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $471.12
Prezzo unitario: $471.12
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Comprati di solito insieme

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton xComfort BF small distribution board
Catalog Number
285220
EAN
4015082852207
Product Length/Depth
150 mm
Product Height
1060 mm
Product Width
555 mm
Product Weight
16.2 kg
Compliances
RoHS conform
Certifications
IEC/EN 61439-1
IEC/EN 62208
IEC/EN 61439-3
Model Code
BF-O-6/144-E

Delivery program

Type
Basic deviceBF flat DBOInstallation distribution boards
Application
Indoor (installation site)
Color
Traffic white (RAL 9016)
White

Technical data - electrical

Voltage rating at AC
415 V AC
Frequency rating of contacts
50 Hz / 60 Hz

Technical data - mechanical

Closure type
Other
Enclosure material
Steel
Width in number of modular spacings
24
Mounting method
Surface mounted (plaster)
DIN-rail
Surface mounting
Material
Sheet steel, powder-coated
Degree of protection
IK07 (impact resistance)
IP30
Number of module space units per row
24
Number of rows
6
Terminal type
Screw terminals
PE and N terminal number and cross section
PE: 2 x 25 mm² + 27 x 16 mm²
N: 2 x 25 mm² + 27 x 16 mm²
Built-in depth
150 mm
Built-in height
1060 mm
Built-in width
555 mm
Internal depth
131 mm
Cable entry postion
Cable entries on top and bottom
Cover/door color
White
Cover/door model
Closed
Cover/door type
Door
Single
Module rack type
Rail frame
Protective shrouding material
Metal

Temperature-rise verification as per IEC 60890

Heat diss. ambient 35°C delta T: 20°C wall mount middle encl. top (IEC 60890)
60 W
Heat diss. ambient 35°C delta T: 35°C wall mount middle encl. top (IEC 60890)
120 W
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
66 W
Heat diss. ambient 35°C delta T:20°C wall mount starting encl. top (IEC 60890)
63 W
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
132 W
Heat diss. ambient 35°C delta T:35°C wall mount starting encl. top (IEC 60890)
126 W

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature details
-5 °C - 40 °C

Design verification as per IEC/EN 61439

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK07
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP30
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
< 0.1 Ω; meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 415 V AC
10.9.3 Impulse withstand voltage
Does not apply to basic enclosures as defined in EN 62208.
10.9.4 Testing of enclosures made of insulating material
Does not apply to metal enclosures.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.

Additional information

Features
EMC-version
Earthing terminal block
Neutral terminal block
Fitted with:
Cable gland plate inserts (top)
Door with Profi-Line three-point turn-lock
Neutral-/protective conductor terminal
Front plates
Enclosure
DIN rail mounting frame
Functions
Basic device
Protection class
I (earthed)
RAL-number
9016
Special features
IP30Protection Class ISteel sheet enclosure white (RAL 9016)
Used with
BF flat distribution board
Installation distribution board
Basic device

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
BF-O-6/144-E Y7-285220 285220 IT_285220.pdf 118 Kbytes BF-O-6/144-E Y7-285220 285220 IT_285220.pdf
