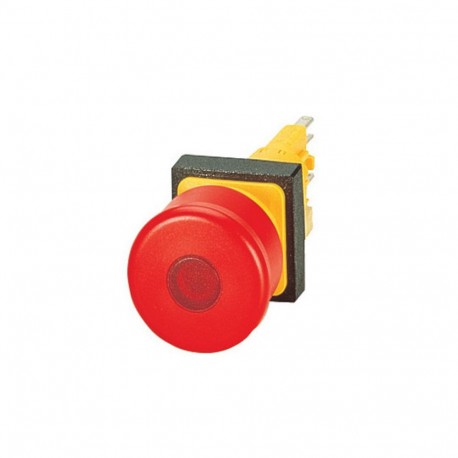

Q25LPV 072371 Y7-72371 EATON ELECTRIC Pulsante di emergenza, illuminato

Riferimento: Q25LPV

Codice: 072371

Numero di catalogo: Y7-72371

Produttore: EATON - MOELLER

Descrizione:

Pulsante di emergenza, illuminato
Pulsante di arresto di emergenza 16 mm 25x25 mm Sblocco tramite
Eaton Moeller® series RMQ16 Emergency-stop pushbutton, illuminated
Pulsante di arresto di emergenza/arresto di emergenza, Gamma prodotti: RMQ16, Unità singola, Design: a forma di fungo, Diametro: 28 mm, Illuminazione: Illuminato, Funzione di sblocco a strappo, Descrizione: A prova di manomissione secondo ISO 13850, EN 418, Il pulsante rimane in posizione pulsata, Cioè = 15 mA, Polo positivo su X1, Non è necessario sostituire la lampadina., Colore testa a fungo: Rosso, Grado di protezione: IP65, Connessione SmartWire-DT: no, Dimensioni frontali: 25 × 25 mm

Categorie:

  • Apparecchi elettrici a bassa tensione > telaio per pulsante a fungo
  • EATON - MOELLER > Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON - MOELLER

  • Dettagli
  • ETIM
  • PDF
  • Recensioni
Garanzia, riparazione e restituzione.

* Questo articolo potrebbe essere obsoleto. Se sei interessato chiedete noi un preventivo e ti diremo se ci sono unità disponibili. Se non ce ne sono più, un nostro tecnico cercherà un'alternativa fornibile con caratteristiche simili.

Richieda un preventivo e le indicheremo se sono ancora disponibili delle unità. Qualora non ne rimanessero, uno dei nostri tecnici cercherà un’alternativa fornibile con caratteristiche simili.

VISTI DI RECENTE

DETTAGLI

General specifications

Product Name
Eaton Moeller® series RMQ16 Emergency stop/emergency switching off pushbutton
Catalog Number
072371
EAN
4015080723714
Product Length/Depth
85 mm
Product Height
28 mm
Product Width
28 mm
Product Weight
0.033 kg
Certifications
CSA Class No.: 3211-03
IEC/EN 60947
CSA-C22.2 No. 14-05
IEC/EN 60947-5
CSA
UL Category Control No.: NKCR
CE
CSA File No.: 46552
UL File No.: E29184
UL
UL 508
Model Code
Q25LPV

Features & Functions

Bezel color
Other
Bezel material
Other
Design
Mushroom-shaped
Features
Tamper-proof (according to ISO 13850, EN 418)
Illumination
Illuminated
Unlocking method
Pull-release

General

Degree of protection
IP65
NEMA 1
Lifespan, mechanical
100,000 Operations
Opening diameter
16 mm
Operating frequency
600 Operations/h
Overvoltage category
III
Pollution degree
3
Product category
RMQ16
Rated impulse withstand voltage (Uimp)
800 V AC
Size
Front dimensions: 25 × 25 mm
Suitable for
Illumination
Emergency stop
Terminal capacity
0.5 - 1.0 mm²
Terminal size
2.8 x 0.8 mm to DIN 46244, Blade terminal
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Type
Controlled stop pushbutton/emergency-stop button

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature (enclosed) - min
25 °C
Ambient operating temperature (enclosed) - max
40 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - max
24 V

Actuator

Actuating force
25 N
Actuator color
Red
Actuator diameter
28 mm
Actuator function
Switching function latching
Spring-return
Pull-to-release

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0.36 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 072371 Apparecchi elettrici a bassa tensione (EC001038)

Nome caratteristicacolore del pulsante (EF000190)
Valore caratteristicarosso
Nome caratteristicatipo di lente (EF006253)
Valore caratteristicatondo
Nome caratteristicadiametro della calotta (EF001423)
Valore caratteristica28 mm
Nome caratteristicadiametro del foro (EF000079)
Valore caratteristica16 mm
Nome caratteristicalarghezza dell'apertura (EF004565)
Valore caratteristica0 mm
Nome caratteristicaaltezza dell'apertura (EF004778)
Valore caratteristica0 mm
Nome caratteristicagrado di protezione (IP) (EF005474)
Valore caratteristicaIP65
Nome caratteristicaindice di protezione (NEMA) (EF011959)
Valore caratteristica1
Nome caratteristicaforma del pulsante (EF001546)
Valore caratteristicaalto
Nome caratteristicaadatto per illuminazione (EF001142)
Valore caratteristicaSì
Nome caratteristicacon illuminazione (EF003829)
Valore caratteristicaNo
Nome caratteristicatensione di alimentazione della lampada (EF006522)
Valore caratteristica0 V
Nome caratteristicafunzione di commutazione a bloccaggio (EF007447)
Valore caratteristicaSì
Nome caratteristicaa impulso (EF001407)
Valore caratteristicaSì
Nome caratteristicacon anello frontale (EF006014)
Valore caratteristicaNo
Nome caratteristicamateriale dell'anello frontale (EF005972)
Valore caratteristicaaltro
Nome caratteristicacolore dell'anello frontale (EF002429)
Valore caratteristicaaltro
Nome caratteristicaadatto per arresto d'emergenza (EF001433)
Valore caratteristicaSì
Nome caratteristicatipo di sblocco (EF001403)
Valore caratteristicasblocco a trazione

DATASHEET - PDF
