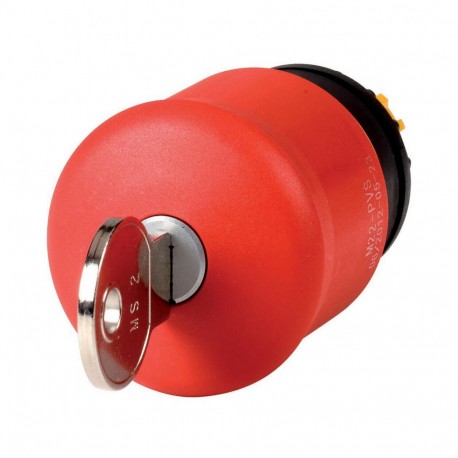

EATON - MOELLER M22-PVS-MS2 111771 Y7-111771 - Immagine 1

Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica per i dettagli.

M22-PVS-MS2 111771 Y7-111771 EATON ELECTRIC Pulsante di emergenza, D 38mm, sblocco a chiave, MS2

Riferimento: M22-PVS-MS2

Codice: 111771

Numero di catalogo: Y7-111771

Produttore: EATON - MOELLER

Descrizione:

Pulsante di emergenza, D=38mm, sblocco a chiave, MS2
Pulsante di arresto di emergenza D=38 mm Sblocco chiave
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton, RMQ-Titan, MS2, Red
Miglioramento del nuovo prodotto: Migliore capacità di presa grazie all'effetto a coste laterali sulla chiave. Il rubinetto è conforme alle classi di protezione IP66 e IP69K ed è approvato per l'uso in tutto il mondo. La gamma di prodotti modulari RMQ-Titan comprende un'ampia varietà di modelli relativi all'arresto di emergenza e al pulsante di arresto di emergenza. Ci sono elementi frontali di varie forme, con e senza illuminazione, strappi o giri rilasciati con e senza chiave.

Categorie:

  • Apparecchi elettrici a bassa tensione > telaio per pulsante a fungo
  • EATON - MOELLER > Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON - MOELLER

  • Dettagli
  • ETIM
  • PDF
  • Recensioni
Garanzia, riparazione e restituzione.

Prezzo unitario: 35,33 €

Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Calcola prezzo per quantità

QuantitàPrezzo

Scadenza standard: 5 giorni.

  • Questi tempi di consegna sono una stima e possono leggermente variare quando l'ordine sarà elaborato.

VISTI DI RECENTE

DETTAGLI

General specifications

Product Name
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton
Catalog Number
111771
EAN
4015081113217
Product Length/Depth
93 mm
Product Height
38 mm
Product Width
38 mm
Product Weight
0.06 kg
Certifications
DNV
GL
LR
Model Code
M22-PVS-MS2

Features & Functions

Bezel color
Other
Bezel material
Other
Design
Palm-tree shaped
Illumination
Non-illuminated
RAL-number
3000
Unlocking method
Key-release

General

Degree of protection
IP67/IP69K
NEMA 4X
Opening diameter
22.5 mm
Product category
RMQ-Titan
Size
Front dimensions: 22 x 22 mm
Suitable for
Emergency stop
Type
Controlled stop pushbutton/emergency-stop button

Ambient conditions, mechanical

Mounting position
As required

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
80 °C

Communication

Connection to SmartWire-DT
No

Actuator

Actuator color
Red
Actuator function
Switching function latching

Contacts

Force for positive opening - min
0 N

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 111771 Apparecchi elettrici a bassa tensione (EC001038)

Nome caratteristicacolore del pulsante (EF000190)
Valore caratteristicarosso
Nome caratteristicatipo di lente (EF006253)
Valore caratteristicatondo
Nome caratteristicadiametro della calotta (EF001423)
Valore caratteristica38 mm
Nome caratteristicadiametro del foro (EF000079)
Valore caratteristica22.5 mm
Nome caratteristicalarghezza dell'apertura (EF004565)
Valore caratteristica0 mm
Nome caratteristicaaltezza dell'apertura (EF004778)
Valore caratteristica0 mm
Nome caratteristicagrado di protezione (IP) (EF005474)
Valore caratteristicaIP67/IP69K
Nome caratteristicaindice di protezione (NEMA) (EF011959)
Valore caratteristica4X
Nome caratteristicaforma del pulsante (EF001546)
Valore caratteristicaalto
Nome caratteristicaadatto per illuminazione (EF001142)
Valore caratteristicaNo
Nome caratteristicacon illuminazione (EF003829)
Valore caratteristicaNo
Nome caratteristicatensione di alimentazione della lampada (EF006522)
Valore caratteristica0 V
Nome caratteristicafunzione di commutazione a bloccaggio (EF007447)
Valore caratteristicaSì
Nome caratteristicaa impulso (EF001407)
Valore caratteristicaNo
Nome caratteristicacon anello frontale (EF006014)
Valore caratteristicaNo
Nome caratteristicamateriale dell'anello frontale (EF005972)
Valore caratteristicaaltro
Nome caratteristicacolore dell'anello frontale (EF002429)
Valore caratteristicaaltro
Nome caratteristicaadatto per arresto d'emergenza (EF001433)
Valore caratteristicaSì
Nome caratteristicatipo di sblocco (EF001403)
Valore caratteristicasblocco a chiave
