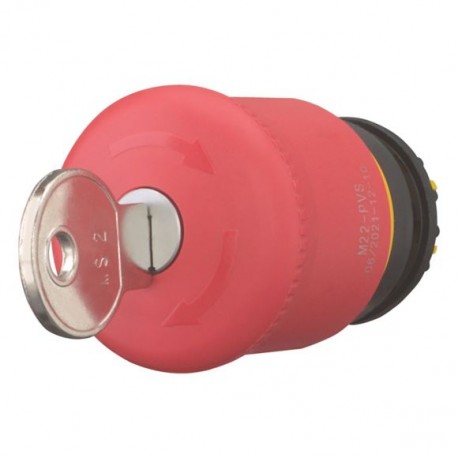

EATON - MOELLER M22-PVS 216879 Y7-216879 - Immagine 1

Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica per i dettagli.

M22-PVS 216879 Y7-216879 EATON ELECTRIC Pulsante di emergenza, D 38mm, sblocco a chiave, MS1

Riferimento: M22-PVS

Codice: 216879

Numero di catalogo: Y7-216879

Produttore: EATON - MOELLER

Descrizione:

Pulsante di emergenza, D=38mm, sblocco a chiave, MS1
Pulsante di arresto di emergenza D=38 mm Sblocco chiave
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton, RMQ-Titan, Mushroom-shaped, 38 mm, Non-illuminated, Key-release, Red, yellow, RAL 3000, Not suitable for master key systems
Pulsante di arresto di emergenza/arresto di emergenza, Gamma prodotti: RMQ-Titan, Unità singola, Design: a forma di fungo, Diametro: 38 mm, Illuminazione: Non illuminata, Grilletto a chiave, Descrizione: A prova di manomissione secondo ISO 13850/EN 418, Colore testa a fungo: Rosso, Colore base: giallo, RAL 3000, Grado di protezione: IP66, IP67, IP69K, Collegamento SmartWire-DT: no, Dimensioni frontali: 35, Istruzioni: Numero massimo di contatti: quattro M22-(C)K01, ... 10 o due M22-(C)K02, ... 20, … 11, Informazioni sull'equipaggiamento fornito: 1 chiave inclusa di serie, Norme: IEC/EN 60947, VDE 0660

Categorie:

  • Apparecchi elettrici a bassa tensione > telaio per pulsante a fungo
  • EATON - MOELLER > Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON - MOELLER

  • Dettagli
  • ETIM
  • PDF
  • Recensioni
Garanzia, riparazione e restituzione.

Prezzo unitario: 28,96 €

Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Calcola prezzo per quantità

QuantitàPrezzo
Spedizione in stock domani. 10 unità.

Più unità, scadenza standard: 5 giorni.

  • Questi tempi di consegna sono una stima e possono leggermente variare quando l'ordine sarà elaborato.

VISTI DI RECENTE

DETTAGLI

General specifications

Product Name
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton
Catalog Number
216879
EAN
4015082168797
Product Length/Depth
93 mm
Product Height
38 mm
Product Width
38 mm
Product Weight
0.06 kg
Compliances
CE Marked
Certifications
EN 60947-5
IEC 60947-5
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
UL 508
VDE
CSA File No.: 012528
CSA-C22.2 No. 94-91
VDE 0660
UL
CE
IEC/EN 60947
UL File No.: E29184
CSA Class No.: 3211-03
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA
CSA-C22.2 No. 14-05
DNV
GL
LR
Catalog Notes
Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11
Model Code
M22-PVS

Features & Functions

Bezel color
Other
Base color
Yellow
Bezel material
Other
Color
Red
Design
Mushroom-shaped
Classical
Features
Tamper-proof (according to ISO 13850, EN 418)
Illumination
Non-illuminated
RAL-number
3000
Unlocking method
Key-release

General

Accessories
1 key included with supplied equipment.
Degree of protection
IP67/IP69K
NEMA 4X, 13
Lifespan, mechanical
100,000 Operations
Opening diameter
22.5 mm
Operating frequency
600 Operations/h
Product category
RMQ-Titan
Size
Front dimensions: 35 mm
Suitable for
Emergency stop
Type
Controlled stop pushbutton/emergency-stop button

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
50 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Communication

Connection to SmartWire-DT
No

Actuator

Actuating force
50 N
Actuator color
Red
Actuator diameter
38 mm
Actuator function
Key-release
Switching function latching

Contacts

Force for positive opening - min
0 N

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 216879 Apparecchi elettrici a bassa tensione (EC001038)

Nome caratteristicacolore del pulsante (EF000190)
Valore caratteristicarosso
Nome caratteristicatipo di lente (EF006253)
Valore caratteristicatondo
Nome caratteristicadiametro della calotta (EF001423)
Valore caratteristica38 mm
Nome caratteristicadiametro del foro (EF000079)
Valore caratteristica22.5 mm
Nome caratteristicalarghezza dell'apertura (EF004565)
Valore caratteristica0 mm
Nome caratteristicaaltezza dell'apertura (EF004778)
Valore caratteristica0 mm
Nome caratteristicagrado di protezione (IP) (EF005474)
Valore caratteristicaIP67/IP69K
Nome caratteristicaindice di protezione (NEMA) (EF011959)
Valore caratteristica4X, 13
Nome caratteristicaforma del pulsante (EF001546)
Valore caratteristicaalto
Nome caratteristicaadatto per illuminazione (EF001142)
Valore caratteristicaNo
Nome caratteristicacon illuminazione (EF003829)
Valore caratteristicaNo
Nome caratteristicatensione di alimentazione della lampada (EF006522)
Valore caratteristica0 V
Nome caratteristicafunzione di commutazione a bloccaggio (EF007447)
Valore caratteristicaSì
Nome caratteristicaa impulso (EF001407)
Valore caratteristicaNo
Nome caratteristicacon anello frontale (EF006014)
Valore caratteristicaNo
Nome caratteristicamateriale dell'anello frontale (EF005972)
Valore caratteristicaaltro
Nome caratteristicacolore dell'anello frontale (EF002429)
Valore caratteristicaaltro
Nome caratteristicaadatto per arresto d'emergenza (EF001433)
Valore caratteristicaSì
Nome caratteristicatipo di sblocco (EF001403)
Valore caratteristicasblocco a chiave

DATASHEET - PDF
