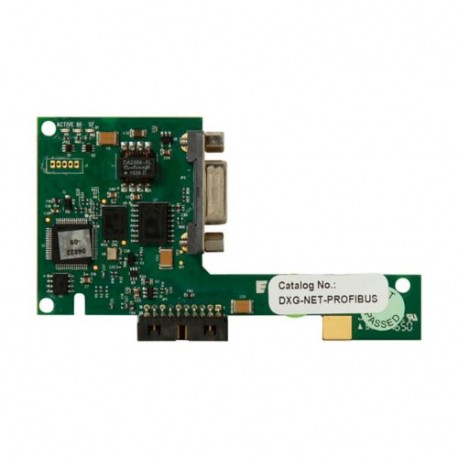

DXG-NET-PROFIBUS 744-A2617-00P Y7-744-A2617-00P EATON ELECTRIC DXG-NET-PROFIBUS DG1 INTERF PROFIBUS DP Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

DXG-NET-PROFIBUS 744-A2617-00P Y7-744-A2617-00P EATON ELECTRIC DXG-NET-PROFIBUS DG1 INTERF PROFIBUS DP

DXG-NET-PROFIBUS

744A261700P

Y7-744-A2617-00P

EATON-MOELLER

DXG-NET-PROFIBUS DG1 INTERF PROFIBUS DP

Modulo di comunicazione DG1 Profibus DP (terminali)

Eaton DG1 ProfibusDP field bus module for DG1 variable frequency drive

Modulo bus di campo, Protocollo bus: PROFIBUS-DP, Descrizione: Presa SUB-D, 9 poli, Utilizzabile con: DG1

Maggiori dettagli


Apparecchi elettrici a bassa tensione > accessori per controllo di frequenza

Convertitori di frequenza Power XL

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $287.40
Prezzo unitario: $287.40
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton DXG Communication module
Catalog Number
744-A2617-00P
EAN
4015081721955
Product Length/Depth
45 mm
Product Height
130 mm
Product Width
105 mm
Product Weight
0.023 kg
Compliances
CE
Certifications
UL File No.: E134360
UL Category Control No.: NMMS, NMMS7
UL 508C
CSA-C22.2 No. 14
IEC/EN61800-3
IEC/EN61800-5
CE marking
UL Listed
UL report applies to both US and Canada
Catalog Notes
SUB-D socket, 9-pole
Model Code
DXG-NET-PROFIBUS

Specifiche del prodotto

Used with
DG1
Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Accessory/spare part type
Communication module
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-10 °C
Degree of protection
IP00
Protocol
PROFIBUS-DP
Suitable for
Branch circuits, (UL/CSA)

ETIM for 744-A2617-00P Apparecchi elettrici a bassa tensione (EC002025)
Caratteristica Valore
tipo di accessori/pezzi di ricambio (EF000215) modulo di comunicazione
accessorio (EF013236) Sì
pezzo di ricambio (EF013237) No

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 37 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DXG-NET-PROFIBUS Y7-744-A2617-00P 744A261700P FR_730-32034-00P.pdf 4 Mbytes DXG-NET-PROFIBUS Y7-744-A2617-00P 744A261700P FR_730-32034-00P.pdf
