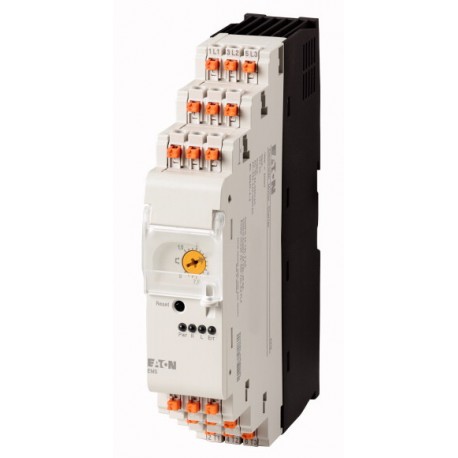

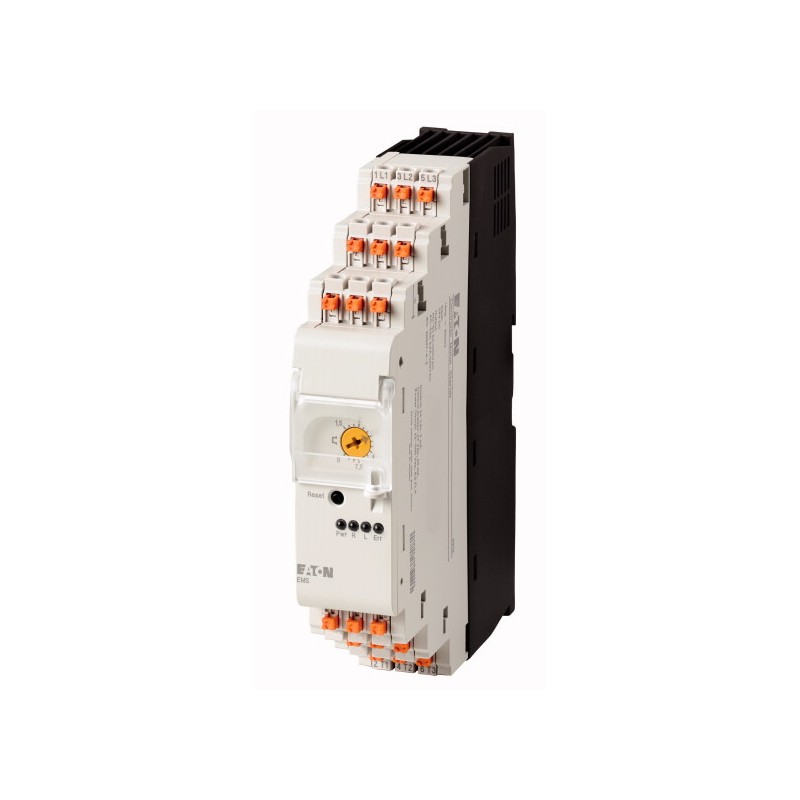

EMS-DO-T-9-24VDC 170100 EATON ELECTRIC Avviatore diretto 9 A, comando in corrente continua
EMS-DO-T-9-24VDC
170100
EATON-MOELLER
Avviatore diretto 9 A, comando in corrente continua
Avviamento elettronico; Avviamento diretto; Il 9
Avviatore diretto, 24 V DC, 1,5 - 6,5 (AC-53a), 9 (AC-51) A, Morsetti Push-In, PTB 13 ATEX 3003
Avviatore DOL, tensione di azionamento: 24 V c.c., standard: IEC/EN 60947-4-2, UL508
Apparecchi elettrici a bassa tensione > combinazione starter motore
Soft Starter standard
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series EMS DOL starter
Catalog Number
170100
EAN
4015081665976
Product Length/Depth
160 mm
Product Height
60 mm
Product Width
155 mm
Product Weight
0.3 kg
Certifications
IEC/EN 60947-4-2
IEC/EN 61000-4-3
UL 508
UL Category Control No.: NLDX, NLDX7
CSA-C22.2 No. 14
UL File No.: E29096
IEC/EN 60947-5
IEC/EN 61000-4-2, Level 3
PTB 13 ATEX 3003
UL
Certified by UL for use in Canada
UL508
CE
UL report applies to both US and Canada
IEC/EN 61000-4-3
UL 508
UL Category Control No.: NLDX, NLDX7
CSA-C22.2 No. 14
UL File No.: E29096
IEC/EN 60947-5
IEC/EN 61000-4-2, Level 3
PTB 13 ATEX 3003
UL
Certified by UL for use in Canada
UL508
CE
UL report applies to both US and Canada
Model Code
EMS-DO-T-9-24VDC
Features & Functions
Functions
Temperature compensated overload protection
External reset possible
Motor protection
DOL starting
External reset possible
Motor protection
DOL starting
General
Balance monitoring
If ≥ 67 %, pick-up time of 1.8 s, Magnitude Imax > Irated ((Imax - Imin)/Imax)
If ≥ 33 %, pick-up time of 120 s, Magnitude Imax > Irated ((Imax - Imin)/Imax)
If ≥ 67 %, pick-up time of 1.8 s, Magnitude Imax < Irated ((Imax - Imin)/Imax)
If ≥ 33 %, pick-up time of 120 s, Magnitude Imax < Irated ((Imax - Imin)/Imax)
If ≥ 33 %, pick-up time of 120 s, Magnitude Imax > Irated ((Imax - Imin)/Imax)
If ≥ 67 %, pick-up time of 1.8 s, Magnitude Imax < Irated ((Imax - Imin)/Imax)
If ≥ 33 %, pick-up time of 120 s, Magnitude Imax < Irated ((Imax - Imin)/Imax)
Class
CLASS 10 A (Ir > 4 A)
CLASS 10
CLASS 10 (Ir ≤ 4 A)
CLASS 10
CLASS 10 (Ir ≤ 4 A)
Connection to SmartWire-DT
No
Degree of protection
IP20
IP20 (according to IEC/EN 60529, EN 50178, VBG 4)
IP20 (according to IEC/EN 60529, EN 50178, VBG 4)
Lifespan, electrical
30,000,000 Operations
Model
Direct starter
Mounting method
Rail mounting possible
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Mounting position
Motor feeder at bottom
Vertical
Vertical
Operating frequency
7200 Operations/h (pulse pause time 50:50)
Overload release current setting - min
1.5 A
Overload release current setting - max
9 A
Overvoltage category
III
Pollution degree
2
Product category
Electronic motor starter
Rated impulse withstand voltage (Uimp)
6000 V AC
Recovery time
2 min (manual startup)
20 min (automatic restart)
20 min (automatic restart)
Residual ripple
≤ 5 % (input voltage)
Terminal capacity
1 x (0.75 - 2.5) mm², solid
2 x (0.75 - 1.5) mm², flexible, with twin ferrule
2 x (0.75 - 2.5) mm², flexible with ferrule
Minimum length 10 mm.
2 x (0.75 - 1.5) mm², flexible, with twin ferrule
2 x (0.75 - 2.5) mm², flexible with ferrule
Minimum length 10 mm.
Terminal capacity (AWG)
1 x (20 - 14), solid
1 x (20 - 14), flexible with ferrule
2 x (20 - 16), flexible with twin ferrule
1 x (20 - 14), flexible with ferrule
2 x (20 - 16), flexible with twin ferrule
Type
DOL starter (complete device)
Voltage type
DC
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
40 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
80 °C
Environmental conditions
Condensation: prevent with appropriate measures
Designed for operation in industrial environments. The use in residential environments could cause electrical interference so that addition suppression must be planned.
Designed for operation in industrial environments. The use in residential environments could cause electrical interference so that addition suppression must be planned.
Electro magnetic compatibility
Air discharge
8 kV
Burst impulse
According to IEC/EN 61000-4-4, level 3
2 kV
2 kV
Contact discharge
6 kV
Electromagnetic fields
10 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
10 V/m at 800 - 1000 MHz (according to IEC EN 61000-4-3)
3 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3)
10 V/m at 800 - 1000 MHz (according to IEC EN 61000-4-3)
3 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3)
Immunity to line-conducted interference
10 V (according to IEC/EN 61000-4-6)
Radio interference class
Class A (EN 61000-6-3, emitted interference, radiated)
Class A (EN 55011, emitted interference, line-conducted)
Class A (EN 55011, emitted interference, line-conducted)
Surge rating
1 kV, symmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5, power pulses (Surge), EMC
2 kV, asymmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5, power pulses (Surge), EMC
2 kV, asymmetrical, power pulses (Surge), EMC
Electrical rating
Basic insulation
500 V AC, between feedback signal output and switch voltage according to IEC/EN60947-1
500 V AC, between supply voltage, control voltage and switch voltage according to IEC/EN60947-1
500 V AC, between supply voltage, control voltage and switch voltage according to IEC/EN60947-1
Input current
5 mA (Actuating circuit - ON, L, R)
40 mA (without feedback signal)
40 mA (without feedback signal)
Pick-up current
45 A (stall protection)
Pick-up time
2 s (stall protection)
Rated conditional short-circuit current (Iq), type 2, 380 V, 400 V, 415 V
0 A
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
24 V
Rated control supply voltage (Us) at DC - max
24 V
Rated operational current (Ie)
9 A
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
3 A
Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V
6.5 A
Rated operational current (Ie) at AC-51
9 A
Rated operational current (Ie) at AC-53A - max
6.5 A
Rated operational current (Ie) at AC-53A - min
1.2 A
Rated operational current (Ie) at DC-13, 24 V
2 A
Rated operational power at AC-3, 220/230 V, 50 Hz
1.5 kW
Rated operational power at AC-3, 380/400 V, 50 Hz
3 kW
Rated operational power at AC-53A, 380/400 V, 50 Hz
3 kW
Rated operational voltage
250 V AC/DC
42 - 550 V
42 - 550 V
Short-circuit protection rating
15 kA, 415 V AC: PKM0-6,3, Short-circuit protective device, Type “1” coordination, Main conducting paths
50 kA, 415 V AC: PKM0-4, Short-circuit protective device, Type “1” coordination, Main conducting paths
50 kA, 500 V AC: Fuse 16 A gG/gL, Short-circuit protective device, Type “1” coordination, Main conducting paths
50 kA, 415 V AC: PKM0-4, Short-circuit protective device, Type “1” coordination, Main conducting paths
50 kA, 500 V AC: Fuse 16 A gG/gL, Short-circuit protective device, Type “1” coordination, Main conducting paths
Supply voltage
A1 - A2: 24 V DC (-20 - +25 %), UAUX, Control section, Input data
Switching level
19.2 - 30 V DC, Switching level "High", Actuating circuit (ON, L, R)
-3 - 9.6 V DC, Switching level "Low", Actuating circuit (ON, L, R)
< 5 V DC, Switching level "confirm Off", Actuating circuit (ON, L, R)
-3 - 9.6 V DC, Switching level "Low", Actuating circuit (ON, L, R)
< 5 V DC, Switching level "confirm Off", Actuating circuit (ON, L, R)
Contacts
Number of auxiliary contacts (normally closed contacts)
1
Number of auxiliary contacts (normally open contacts)
1
Number of contacts (change-over contacts)
1
Safety
Explosion safety category for dust
ATEX dust-ex-protection, II (2) G [Ex e] [Ex d] [Ex px]
ATEX dust-ex-protection, II (2) D [Ex t] [Ex p]
ATEX dust-ex-protection, II (2) D [Ex t] [Ex p]
Safe isolation
300 V AC; Between supply, control, and switching voltages; According to EN50178
300 V AC, Between feedback signal output and switch voltage, According to EN 50178
500 V AC, Between feedback signal output and switch voltage, According to EN 50178
500 V AC; Between supply, control, and switching voltages; According to EN50178
300 V AC, Between feedback signal output and switch voltage, According to EN 50178
500 V AC, Between feedback signal output and switch voltage, According to EN 50178
500 V AC; Between supply, control, and switching voltages; According to EN50178
Safety parameter (EN ISO 13849-1)
316 years; MTTFD
Safety parameter (IEC 62061)
SIL: 2
Λdu [FIT]: 47.2
97.9 %, SFF
Λsd [FIT]: 0
Λsu [FIT]: 1550
86,9 %, DC
Λdd [FIT]: 314
Λdu [FIT]: 47.2
97.9 %, SFF
Λsd [FIT]: 0
Λsu [FIT]: 1550
86,9 %, DC
Λdd [FIT]: 314
Design verification
Equipment heat dissipation, current-dependent Pvid
6.3 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
2.1 W
Rated operational current for specified heat dissipation (In)
6.5 A
Static heat dissipation, non-current-dependent Pvs
1 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| tipo di avviatore motore (EF009598) | starter diretto (DOL) |
| con attivatore di corto circuito (EF006691) | No |
| tensione di alimentazione pilota nominale AC 50 Hz (EF003978) | 0 V |
| tensione di alimentazione pilota nominale AC 60 Hz (EF003979) | 0 V |
| tensione di alimentazione pilota nominale DC (EF003980) | 24 V |
| tipo di tensione per l'azionamento (EF008242) | DC |
| potenza d'esercizio nominale per AC-3, 230 V, 3 fasi (EF009599) | 1.5 kW |
| potenza d'esercizio nominale per AC-3, 400 V (EF001364) | 3 kW |
| potenza nominale, 460 V, 60 Hz, 3 fase (EF009600) | 2.2 kW |
| potenza nominale, 575 V, 60 Hz, 3 fase (EF009601) | 0 kW |
| corrente d'esercizio nominale Ie (EF001443) | 9 A |
| corrente d'esercizio nominale per AC-3, 400 V (EF009602) | 6.5 A |
| campo di corrente dell'interruttore di sovraccarico (EF002336) | 1.5 A |
| corrente corto circuito nominale condizionale, coordinamento tipo 1, 480 Y/277 V (EF009607) | 0 A |
| corrente corto circuito nominale condizionale, coordinamento tipo 1, 600 Y/347 V (EF009608) | 0 A |
| corrente di corto circuito nominale condizionale, coordinamento di tipo 2, 230 V (EF009606) | 0 A |
| corrente di corto circuito nominale condizionale, coordinamento di tipo 2, 400 V (EF009605) | 0 A |
| numero di contatti ausiliari, contatti di chiusura (EF001376) | 1 |
| numero di contatti ausiliari, contatti di riposo (EF001377) | 1 |
| temperatura ambiente, limite operativo superiore (EF009603) | 40 °C |
| protezione da sovraccarico a compensazione termica (EF009604) | Sì |
| classe di intervento (EF006668) | CLASS 10 |
| tipo di collegamento circuito elettrico principale (EF006819) | raccordo a molla |
| tipo di raccordo elettrico per circuito corrente ausiliaria/comando (EF006979) | raccordo a molla |
| montaggio su guida portante possibile (EF003972) | Sì |
| con trasformatore (EF000278) | No |
| numero di punti di comando (EF001372) | 0 |
| adatto per arresto d'emergenza (EF001433) | No |
| classe di coordinamento secondo IEC 60947-4-3 (EF012390) | classe 1 |
| numero di segnalatori luminosi (EF001965) | 4 |
| reset esterno possibile (EF003426) | Sì |
| con fusibile (EF006693) | No |
| grado di protezione (IP) (EF005474) | IP20 |
| supporta il protocollo per TCP/IP (EF003050) | No |
| supporta il protocollo per PROFIBUS (EF003052) | No |
| supporta il protocollo per CAN (EF003053) | No |
| supporta il protocollo per INTERBUS (EF003054) | No |
| supporta il protocollo per ASI (EF003051) | No |
| supporta il protocollo pour Modbus (EF003057) | No |
| supporta il protocollo per Data-Highway (EF003058) | No |
| supporta il protocollo per DeviceNet (EF003059) | No |
| supporta il protocollo per SUCONET (EF003060) | No |
| supporta il protocollo per LON (EF003017) | No |
| supporta il protocollo per PROFINET IO (EF007525) | No |
| supporta il protocollo per PROFINET CBA (EF007524) | No |
| supporta il protocollo per SERCOS (EF006657) | No |
| supporta il protocollo per Foundation Fieldbus (EF007522) | No |
| supporta il protocollo per EtherNet/IP (EF007521) | No |
| supporta il protocollo per AS-Interface Safety at Work (EF007519) | No |
| supporta il protocollo per DeviceNet Safety (EF007520) | No |
| supporta il protocollo per INTERBUS-Safety (EF006662) | No |
| supporta il protocollo per PROFIsafe (EF007526) | No |
| supporta il protocollo per SafetyBUS p (EF007527) | No |
| supporta il protocollo per altri sistemi bus (EF003062) | No |
| larghezza (EF000008) | 155 mm |
| altezza (EF000040) | 60 mm |
| profondità (EF000049) | 160 mm |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON EMS EN.pdf | 1 Mbytes |
|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EMS-DO-T-9-24VDC EMS-DO-T-9-24VDC 170100 ES_172741.pdf | 376 Kbytes |
|
Recensioni: (0) ▲
Nessun commento per il momento.
Inserisci recensione
nascondi form
| Valutazione: |
|
| Nome: | |
| Email: | |
| Titolo: | |
| Testo: | |
| Mi consiglia questo prodotto da acquistare? | |
|
|
|
| Inserisci recensione | |
Tutti i feedback che riceviamo dagli elementi che offriamo sono reali e verificati. Un piccolo gesto, ma di grande valore. Quindi grazie per quel minuto si spende in noi lasciare il vostro parere e punteggio sui prodotti, perché ci aiuta a continuare a migliorare e di offrire ancora maggiore qualità del servizio.
