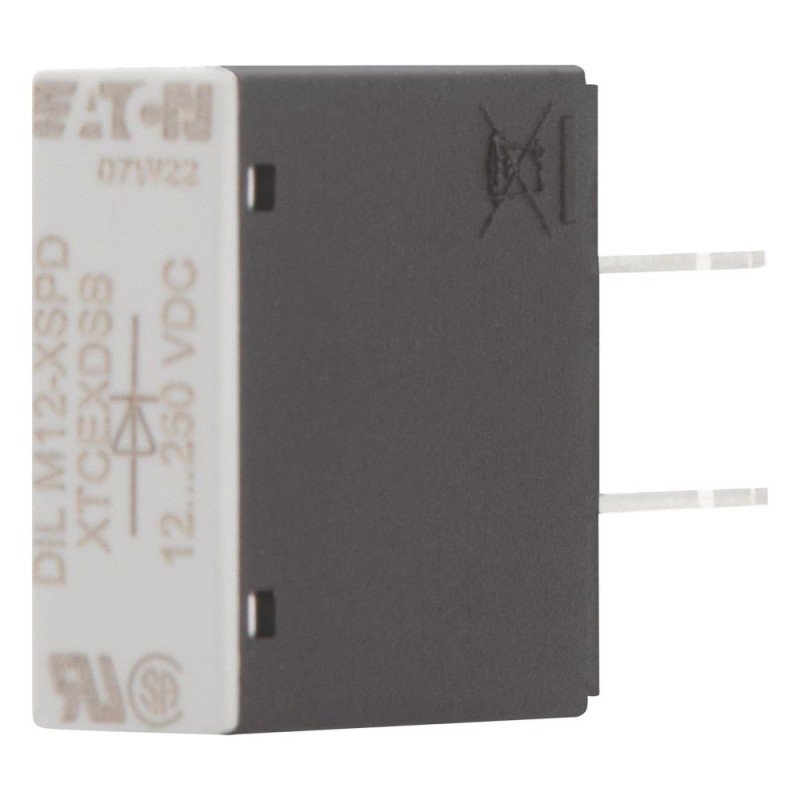

DILM12-XSPD 101672 Y7-101672 EATON ELECTRIC Circuito a diodi, per DILA, M7-15 Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

DILM12-XSPD 101672 Y7-101672 EATON ELECTRIC Circuito a diodi, per DILA, M7-15

DILM12-XSPD

101672

Y7-101672

EATON-MOELLER

10

Circuito a diodi, per DILA, M7-15

SOPPRESSORE A DIODI CONTA ACC

Eaton Moeller® series DILM Diode suppressor, for DILA, M7-15

Soppressore a diodi, Accessori: Circuito soppressore, Tensione: Us 12 - 250 DC V, Utilizzare con: DILM7 - DILM15, DILMP20, DILA

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Modulo di protezione contro le sovratensioni

Contattori fino a 170A

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $114.18
Prezzo unitario: $11.42
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Comprati di solito insieme

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series DILM diode suppressor
Catalog Number
101672
EAN
4015081015641
Product Length/Depth
48 mm
Product Height
25 mm
Product Width
9 mm
Product Weight
0.004 kg
Certifications
UL Category Control No.: NKCR2, NKCR8
CSA File No.: 256465
UL Recognized
CSA-C22.2 No. 14-05
UL File No.: E29184
CSA
CSA Class No.: 3211-07
IEC/EN 60947-4-1
UL 508
CE
Model Code
DILM12-XSPD

Caratteristiche e Funzioni

Functions
Diode

Informazioni generali

Product category
Accessories
Used with
DILM12-XSPD
Voltage type
DC

Condizioni ambientali e climatiche

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature - max
60 °C

Sistema elettromagnetico (bobina)

Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
12 V
Rated control supply voltage (Us) at DC - max
250 V

Verifica di progetto

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 101672 Apparecchi elettrici a bassa tensione (EC000683)
Caratteristica Valore
funzione (EF000030) Diode
tipo di tensione d'esercizio (EF005294) AC
tensione d'esercizio AC 50 Hz (EF008206) 0 V
tensione d'esercizio AC 60 Hz (EF008207) 0 V
tensione d'esercizio DC (EF008208) 12 V
con indicatore a LED (EF005950) No

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DILM12-XSPD Y7-101672 101672 DE_276371.pdf 1 Mbytes DILM12-XSPD Y7-101672 101672 DE_276371.pdf
