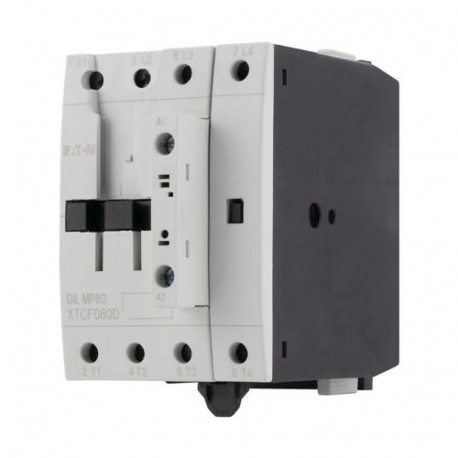

DILMP80(RDC24) 109898 Y7-109898 EATON ELECTRIC Contattore di potenza, 4p, 80A/AC1 Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

DILMP80(RDC24) 109898 Y7-109898 EATON ELECTRIC Contattore di potenza, 4p, 80A/AC1

DILMP80(RDC24)

109898

Y7-109898

EATON-MOELLER

Contattore di potenza, 4p, 80A/AC1

Contattore di potenza a 4 poli Collegamento a vite 80 A AC-1 RDC24

Eaton Moeller® series DILMP Contactor, 4 pole, 80 A, RDC 24: 24 - 27 V DC, DC operation

Contattore, Applicazione: Contattori per utenze elettriche a 4 poli, Contattori fino a 200 A, 4 poli, Categoria di utilizzo: AC-1: Carichi non induttivi o leggermente induttivi, Forni a resistenza, NAC-3: Motori asincroni AC normali: avviamento, arresto durante il funzionamento, Tecnologia di collegamento: Morsetti a vite, Numero di poli: 4 poli, 380 V 400 V: Ie= 50 A, Corrente termica convenzionale all'aperto, 3 poli, 50 - 60 Hz aperto a 40 °C: Ith = Ie= 80 A, chiuso: Ith= 64 A, Corrente termica convenzionale all'aperto, 1 polo aperto: Ith= 207 A, chiuso: Ith= 186 A, 220 V 230 V: P= 15,5 kW, 380 V 400 V: P= 22 kW, 660 V 690 V: P= 30 kW, Istruzioni: Contatti secondo EN 50 012., circuito soppressore integrato nell'elettronica di azionamento, Tensione AC/DC: Funzionamento DC

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Contatto per commutazione in C.A.

Contattori fino a 170A

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $365.39
Prezzo unitario: $365.39
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series DILMP 4-pole contactor
Catalog Number
109898
EAN
4015081094646
Product Length/Depth
132 mm
Product Height
115 mm
Product Width
74 mm
Product Weight
1.2 kg
Certifications
CSA File No.: 012528
UL 60947-4-1
CSA Class No.: 2411-03, 3211-04
UL
UL File No.: E29096
CSA
IEC/EN 60947
CE
IEC/EN 60947-4-1
CSA-C22.2 No. 60947-4-1-14
VDE 0660
UL Category Control No.: NLDX
Catalog Notes
Also tested according to AC-3e.
Model Code
DILMP80(RDC24)

Caratteristiche e Funzioni

Fitted with:
Suppressor circuit in actuating electronics
Number Of Poles
Four-pole

Informazioni generali

Application
Contactors for 4 pole electric consumers
Lifespan, mechanical
10,000,000 Operations (DC operated)
10,000,000 Operations (AC operated)
Operating frequency
5000 mechanical Operations/h (DC operated)
5000 mechanical Operations/h (AC operated)
Overvoltage category
III
Pollution degree
3
Product category
Contactors
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
8000 V AC
Residual current
1 mA (with actuation of A1 - A2 by the electronics with "0" signal)
Resistance per pole
1.9 mΩ
Utilization category
AC-1: Non-inductive or slightly inductive loads, resistance furnaces
AC-3: Normal AC induction motors: starting, switch off during running
Voltage type
DC

Condizioni ambientali, dati meccanici

Shock resistance
5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Condizioni ambientali e climatiche

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature (enclosed) - min
25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-3

Sezioni di collegamento

Terminal capacity (copper band)
2 x (6 x 9 x 0.8) mm (Number of segments x width x thickness), Main cables
Terminal capacity (flexible with ferrule)
1 x (0.75 - 1.5) mm²
2 x (0.75 - 1.5) mm²
Terminal capacity (flexible)
1 x (0.75 - 2.5) mm²
2 x (0.75 - 2.5) mm²
Terminal capacity (solid)
2 x (0.75 - 4) mm², Control circuit cables
1 x (2.5 - 16) mm², Main cables
2 x (2.5 - 16) mm², Main cables
1 x (0.75 - 4) mm², Control circuit cables
1 x (0.75 - 2.5) mm²
Terminal capacity (solid/stranded AWG)
18 - 14, Control circuit cables
12 - 2, Main Cables
Terminal capacity (stranded)
1 x (16 - 50) mm², Main cables
2 x (16 - 35) mm², Main cables
Stripping length (main cable)
10 mm
Stripping length (control circuit cable)
10 mm
Screw size
M3.5, Terminal screw, Control circuit cables
M6, Terminal screw, Main cables
Screwdriver size
0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver
2, Terminal screw, Pozidriv screwdriver
Tightening torque
1.2 Nm, Screw terminals, Control circuit cables
3.3 Nm, Screw terminals, Main cables

Dati elettrici

Rated breaking capacity at 220/230 V
500 A
Rated breaking capacity at 380/400 V
500 A
Rated breaking capacity at 500 V
500 A
Rated breaking capacity at 660/690 V
296 A
Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V
80 A
Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V
50 A
Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V
50 A
Rated operational current (Ie) at AC-3, 440 V
50 A
Rated operational current (Ie) at AC-3, 500 V
50 A
Rated operational current (Ie) at AC-3, 660 V, 690 V
32 A
Rated operational current (Ie) at AC-4, 400 V
40 A
Rated operational current (Ie) at DC-1, 60 V
80 A
Rated operational current (Ie) at DC-1, 110 V
80 A
Rated operational current (Ie) at DC-1, 220 V
80 A
Rated insulation voltage (Ui)
690 V
Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V
80 A
Rated operational power at AC-1, 240 V, 50 Hz
32 kW
Rated operational power at AC-1, 380/400 V, 50 Hz
50 kW
Rated operational power at AC-1, 415 V, 50 Hz
55 kW
Rated operational power at AC-1, 440 V, 50 Hz
58 kW
Rated operational power at AC-1, 500 V, 50 Hz
66 kW
Rated operational power at AC-1, 690 V, 50 Hz
87 kW
Rated operational power at AC-3, 240 V, 50 Hz
17 kW
Rated operational power at AC-3, 380/400 V, 50 Hz
22 kW
Rated operational power at AC-3, 415 V, 50 Hz
30 kW
Rated operational voltage (Ue) at AC - max
690 V

Resistenza al corto circuito

Short-circuit current rating (basic rating)
250 A, max. Fuse, SCCR (UL/CSA)
10 kA, SCCR (UL/CSA)
250 A, max. CB, SCCR (UL/CSA)
Short-circuit current rating (high fault at 480 V)
30/100 kA, Fuse, SCCR (UL/CSA)
100 A, max. CB, SCCR (UL/CSA)
65 kA, CB, SCCR (UL/CSA)
250/150 A, Class J, max. Fuse, SCCR (UL/CSA)
Short-circuit current rating (high fault at 600 V)
30 kA, CB, SCCR (UL/CSA)
250 A, max. CB, SCCR (UL/CSA)
250/150 A, Class J, max. Fuse, SCCR (UL/CSA)
30/100 kA, Fuse, SCCR (UL/CSA)
Short-circuit protection rating (type 1 coordination) at 400 V
160 A gG/gL
Short-circuit protection rating (type 1 coordination) at 690 V
80 A gG/gL
Short-circuit protection rating (type 2 coordination) at 400 V
80 A gG/gL
Short-circuit protection rating (type 2 coordination) at 690 V
63 A gG/gL

Corrente convenzionale termica

Conventional thermal current ith (1-pole, enclosed)
186 A
Conventional thermal current ith (3-pole, enclosed)
64 A
Conventional thermal current ith at 55°C (3-pole, open)
73 A
Conventional thermal current ith of main contacts (1-pole, open)
207 A

Potere d'inserzione

Switching capacity (main contacts, general use)
80 A, Maximum motor rating (UL/CSA)

Tempo di commutazione

Arcing time
10 ms
Switching time (DC operated, make contacts, closing delay) - max
54 ms
Switching time (DC operated, make contacts, opening delay) - max
24 ms

Sistema elettromagnetico (bobina)

Drop-out voltage
0.2 - 0.6 x UC, DC operated
Duty factor
100 %
Pick-up voltage
0.85 - 1.1 V AC/DC x Us
0.7 - 1.2 V DC x Uc
Power consumption (pick-up) at DC
24 W
Power consumption (sealing) at DC
1 W
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
24 V
Rated control supply voltage (Us) at DC - max
27 V

Potenza nominale d'impiego (Motore)

Assigned motor power at 115/120 V, 60 Hz, 1-phase
3 HP
Assigned motor power at 200/208 V, 60 Hz, 3-phase
15 HP
Assigned motor power at 230/240 V, 60 Hz, 1-phase
10 HP
Assigned motor power at 230/240 V, 60 Hz, 3-phase
20 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
40 HP
Assigned motor power at 575/600 V, 60 Hz, 3-phase
50 HP

Comunicazione

Connection
Screw terminals
Connection to SmartWire-DT
No

Contatti

Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0

Sicurezza

Safe isolation
440 V AC, Between the contacts, According to EN 61140
440 V AC, Between coil and contacts, According to EN 61140

Special Purpose Ratings

Special purpose rating of ballast electrical discharge lamps
79 A (480V 60Hz 3phase, 277V 60Hz 1phase)
79 A (600V 60Hz 3phase, 347V 60Hz 1phase)
Special purpose rating of elevator control
10 HP, 200 V 60 Hz 3-ph, (UL/CSA)
32.2 A, 200 V 60 Hz 3-ph, (UL/CSA)
40 A, 480 V 60 Hz 3-ph, (UL/CSA)
41 A, 600 V 60 Hz 3-ph, (UL/CSA)
42 A, 240 V 60 Hz 3-ph, (UL/CSA)
30 HP, 480 V 60 Hz 3-ph, (UL/CSA)
15 HP, 240 V 60 Hz 3-ph, (UL/CSA)
40 HP, 600 V 60 Hz 3-ph, (UL/CSA)
Special purpose rating of resistance air heating
79 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA)
79 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA)
Special purpose rating of tungsten incandescent lamps
74 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA)
74 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA)

Verifica di progetto

Equipment heat dissipation, current-dependent Pvid
25.8 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
8.6 W
Rated operational current for specified heat dissipation (In)
80 A
Static heat dissipation, non-current-dependent Pvs
1 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 109898 Apparecchi elettrici a bassa tensione (EC000066)
Caratteristica Valore
tensione di alimentazione pilota nominale AC 50 Hz (EF003978) 0 V
tensione di alimentazione pilota nominale AC 60 Hz (EF003979) 0 V
tensione di alimentazione pilota nominale DC (EF003980) 24 V
tipo di tensione per l'azionamento (EF008242) DC
numero di contatti di apertura, contatti principali (EF001375) 0
numero di contatti di chiusura, contatti principali (EF001374) 4
tipo di collegamento circuito elettrico principale (EF006819) raccordo a vite
tensione d'esercizio AC 50 Hz (EF008206) 230 V
tensione d'esercizio AC 60 Hz (EF008207) 230 V
corrente d'esercizio nominale Ie per AC-1, 400 V (EF001393) 80 A
corrente d'esercizio nominale Ie per AC-3, 400 V (EF001392) 50 A
potenza d'esercizio nominale per AC-3, 400 V (EF001364) 22 kW
corrente d'esercizio nominale Ie per AC-4, 400 V (EF008495) 40 A
potenza d'esercizio nominale per AC-4, 400 V (EF008496) 20 kW
potenza d'esercizio nominale NEMA (EF011960) 29.8 kW
numero di contatti ausiliari, contatti di chiusura (EF001376) 0
numero di contatti ausiliari, contatti di riposo (EF001377) 0
adatto per installazione in serie (EF001126) No
larghezza (EF000008) 74 mm
altezza (EF000040) 115 mm
profondità (EF000049) 132 mm

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DILMP80(RDC24) Y7-109898 109898 ES_109869.pdf 2 Mbytes DILMP80(RDC24) Y7-109898 109898 ES_109869.pdf

Recensioni: (0) ▲

Nessun commento per il momento.

Inserisci recensione
Inserisci recensione
nascondi form
Valutazione:
Nome:
Email:
Titolo:
Testo:
Mi consiglia questo prodotto da acquistare?
  Captcha
  Inserisci recensione

Ultimi commenti dei nostri clienti

Tutti i feedback che riceviamo dagli elementi che offriamo sono reali e verificati. Un piccolo gesto, ma di grande valore. Quindi grazie per quel minuto si spende in noi lasciare il vostro parere e punteggio sui prodotti, perché ci aiuta a continuare a migliorare e di offrire ancora maggiore qualità del servizio.
