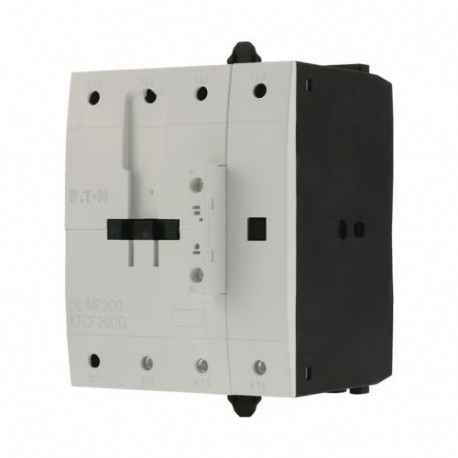

DILMP200(RDC24) 109930 Y7-109930 EATON ELECTRIC Contattore di potenza, 4p, 200A/AC1
DILMP200(RDC24)
109930
Y7-109930
EATON-MOELLER
Contattore di potenza, 4p, 200A/AC1
Contattore di potenza Collegamento a vite 4 poli 200 A AC-1 RDC24
Eaton Moeller® series DILMP Contactor, 4 pole, 200 A, RDC 24: 24 - 27 V DC, DC operation
Contattore, Applicazione: Contattori per utenze elettriche a 4 poli, Contattori fino a 200 A, 4 poli, Categoria di utilizzo: AC-1: Carichi non induttivi o leggermente induttivi, forni a resistenza, NAC-3: Motori a induzione AC normali: avviamento, arresto durante il funzionamento, Tecnologia di connessione: Morsetti a vite, Numero di poli: 4 poli, 380 V 400 V: Ie= 115 A, Corrente termica convenzionale all'aria libera, 3 poli, 50 - 60 Hz aperto a 40 °C: Ith = Ie= 200 A, chiuso: Ith= 160 A, Corrente termica convenzionale all'aperto, 1 polo aperto: Ith= 516 A, chiuso: Ith= 464 A, 220 V 230 V: P= 37 kW, 380 V 400 V: P= 55 kW, 660 V 690 V: P= 90 kW, Istruzioni: Contatti secondo EN 50 012., circuito soppressore integrato nell'elettronica di azionamento, Tensione AC/DC: funzionamento DC
Apparecchi elettrici a bassa tensione > Contatto per commutazione in C.A.
Contattori fino a 170A
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series DILMP 4-pole contactor
Catalog Number
109930
EAN
4015081094967
Product Length/Depth
160 mm
Product Height
170 mm
Product Width
122 mm
Product Weight
2.73 kg
Certifications
CE
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
UL Category Control No.: NLDX
CSA
CSA File No.: 012528
UL 60947-4-1
CSA Class No.: 2411-03, 3211-04
UL File No.: E29096
VDE 0660
IEC/EN 60947-4-1
UL
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
UL Category Control No.: NLDX
CSA
CSA File No.: 012528
UL 60947-4-1
CSA Class No.: 2411-03, 3211-04
UL File No.: E29096
VDE 0660
IEC/EN 60947-4-1
UL
Catalog Notes
Also tested according to AC-3e.
Model Code
DILMP200(RDC24)
Caratteristiche e Funzioni
Fitted with:
Suppressor circuit in actuating electronics
Number Of Poles
Four-pole
Informazioni generali
Application
Contactors for 4 pole electric consumers
Lifespan, mechanical
10,000,000 Operations (AC operated)
10,000,000 Operations (DC operated)
10,000,000 Operations (DC operated)
Operating frequency
3600 mechanical Operations/h (AC operated)
3600 mechanical Operations/h (DC operated)
3600 mechanical Operations/h (DC operated)
Overvoltage category
III
Pollution degree
3
Product category
Contactors
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
8000 V AC
Residual current
1 mA (with actuation of A1 - A2 by the electronics with "0" signal)
Resistance per pole
0.6 mΩ
Utilization category
AC-1: Non-inductive or slightly inductive loads, resistance furnaces
AC-3: Normal AC induction motors: starting, switch off during running
AC-3: Normal AC induction motors: starting, switch off during running
Voltage type
DC
Condizioni ambientali, dati meccanici
Shock resistance
5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Condizioni ambientali e climatiche
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature (enclosed) - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-3
Damp heat, constant, to IEC 60068-2-3
Sezioni di collegamento
Terminal capacity (copper band)
2 x (6 x 16 x 0.8) mm (Number of segments x width x thickness), Main cables
Terminal capacity (flexible with ferrule)
1 x (0.75 - 1.5) mm²
2 x (0.75 - 1.5) mm²
2 x (0.75 - 1.5) mm²
Terminal capacity (flexible)
1 x (0.75 - 2.5) mm²
2 x (0.75 - 2.5) mm²
2 x (0.75 - 2.5) mm²
Terminal capacity (solid)
1 x (0.75 - 4) mm², Control circuit cables
2 x (0.75 - 4) mm², Control circuit cables
1 x (0.75 - 2.5) mm²
2 x (0.75 - 4) mm², Control circuit cables
1 x (0.75 - 2.5) mm²
Terminal capacity (solid/stranded AWG)
18 - 14, Control circuit cables
8 - 3/0, Main cables
8 - 3/0, Main cables
Terminal capacity (stranded)
1 x (16 - 120) mm², Main cables
2 x (16 - 95) mm², Main cables
2 x (16 - 95) mm², Main cables
Stripping length (main cable)
15 mm
Stripping length (control circuit cable)
10 mm
Screw size
M10, Terminal screw, Main cables
5 mm AF, Hexagon socket-head spanner, Terminal screw, Main cables
M3.5, Terminal screw, Control circuit cables
5 mm AF, Hexagon socket-head spanner, Terminal screw, Main cables
M3.5, Terminal screw, Control circuit cables
Screwdriver size
2, Terminal screw, Control circuit cables, Pozidriv screwdriver
0.8 x 5.5/1 x 6 mm, Terminal screw, Control circuit cables, Standard screwdriver
0.8 x 5.5/1 x 6 mm, Terminal screw, Control circuit cables, Standard screwdriver
Tightening torque
14 Nm, Screw terminals, Main cables
1.2 Nm, Screw terminals, Control circuit cables
1.2 Nm, Screw terminals, Control circuit cables
Dati elettrici
Rated breaking capacity at 220/230 V
1150 A
Rated breaking capacity at 380/400 V
1150 A
Rated breaking capacity at 500 V
1150 A
Rated breaking capacity at 660/690 V
800 A
Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V
200 A
Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V
115 A
Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V
115 A
Rated operational current (Ie) at AC-3, 440 V
115 A
Rated operational current (Ie) at AC-3, 500 V
115 A
Rated operational current (Ie) at AC-3, 660 V, 690 V
93 A
Rated operational current (Ie) at AC-4, 400 V
136 A
Rated operational current (Ie) at DC-1, 60 V
200 A
Rated operational current (Ie) at DC-1, 110 V
200 A
Rated operational current (Ie) at DC-1, 220 V
200 A
Rated insulation voltage (Ui)
690 V
Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V
200 A
Rated operational power at AC-1, 240 V, 50 Hz
79 kW
Rated operational power at AC-1, 380/400 V, 50 Hz
125 kW
Rated operational power at AC-1, 415 V, 50 Hz
137 kW
Rated operational power at AC-1, 440 V, 50 Hz
145 kW
Rated operational power at AC-1, 500 V, 50 Hz
165 kW
Rated operational power at AC-1, 690 V, 50 Hz
217 kW
Rated operational power at AC-3, 240 V, 50 Hz
40 kW
Rated operational power at AC-3, 380/400 V, 50 Hz
55 kW
Rated operational power at AC-3, 415 V, 50 Hz
70 kW
Rated operational voltage (Ue) at AC - max
690 V
Resistenza al corto circuito
Short-circuit current rating (basic rating)
600 A, max. Fuse, SCCR (UL/CSA)
600 A, max. CB, SCCR (UL/CSA)
10 kA, SCCR (UL/CSA)
600 A, max. CB, SCCR (UL/CSA)
10 kA, SCCR (UL/CSA)
Short-circuit current rating (high fault at 480 V)
300/300 A, Class J, max. Fuse, SCCR (UL/CSA)
250 A, max. CB, SCCR (UL/CSA)
65 kA, CB, SCCR (UL/CSA)
30/100 kA, Fuse, SCCR (UL/CSA)
250 A, max. CB, SCCR (UL/CSA)
65 kA, CB, SCCR (UL/CSA)
30/100 kA, Fuse, SCCR (UL/CSA)
Short-circuit current rating (high fault at 600 V)
30 kA, CB, SCCR (UL/CSA)
300/300 A, Class J, max. Fuse, SCCR (UL/CSA)
30/100 kA, Fuse, SCCR (UL/CSA)
350 A, max. CB, SCCR (UL/CSA)
300/300 A, Class J, max. Fuse, SCCR (UL/CSA)
30/100 kA, Fuse, SCCR (UL/CSA)
350 A, max. CB, SCCR (UL/CSA)
Short-circuit protection rating (type 1 coordination) at 400 V
250 A gG/gL
Short-circuit protection rating (type 1 coordination) at 690 V
200 A gG/gL
Short-circuit protection rating (type 2 coordination) at 400 V
250 A gG/gL
Short-circuit protection rating (type 2 coordination) at 690 V
200 A gG/gL
Corrente convenzionale termica
Conventional thermal current ith (1-pole, enclosed)
464 A
Conventional thermal current ith (3-pole, enclosed)
160 A
Conventional thermal current ith at 55°C (3-pole, open)
180 A
Conventional thermal current ith of main contacts (1-pole, open)
516 A
Potere d'inserzione
Switching capacity (main contacts, general use)
180 A, Maximum motor rating (UL/CSA)
Tempo di commutazione
Arcing time
15 ms
Switching time (DC operated, make contacts, closing delay) - max
35 ms
Switching time (DC operated, make contacts, opening delay) - max
30 ms
Sistema elettromagnetico (bobina)
Drop-out voltage
0.2 - 0.6 x UC, DC operated
Duty factor
100 %
Pick-up voltage
0.8 - 1.1 V AC/DC x Us
0.7 - 1.2 V DC x Uc
0.7 - 1.2 V DC x Uc
Power consumption (pick-up) at DC
149 W
Power consumption (sealing) at DC
1.9 W
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
24 V
Rated control supply voltage (Us) at DC - max
27 V
Potenza nominale d'impiego (Motore)
Assigned motor power at 115/120 V, 60 Hz, 1-phase
10 HP
Assigned motor power at 200/208 V, 60 Hz, 3-phase
40 HP
Assigned motor power at 230/240 V, 60 Hz, 1-phase
30 HP
Assigned motor power at 230/240 V, 60 Hz, 3-phase
60 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
125 HP
Assigned motor power at 575/600 V, 60 Hz, 3-phase
125 HP
Comunicazione
Connection
Screw terminals
Connection to SmartWire-DT
No
Contatti
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Sicurezza
Safe isolation
440 V AC, Between the contacts, According to EN 61140
440 V AC, Between coil and contacts, According to EN 61140
440 V AC, Between coil and contacts, According to EN 61140
Special Purpose Ratings
Special purpose rating of ballast electrical discharge lamps
160 A (600V 60Hz 3phase, 347V 60Hz 1phase)
160 A (480V 60Hz 3phase, 277V 60Hz 1phase)
160 A (480V 60Hz 3phase, 277V 60Hz 1phase)
Special purpose rating of elevator control
96 A, 480 V 60 Hz 3-ph, (UL/CSA)
30 HP, 200 V 60 Hz 3-ph, (UL/CSA)
75 HP, 480 V 60 Hz 3-ph, (UL/CSA)
40 HP, 240 V 60 Hz 3-ph, (UL/CSA)
99 A, 600 V 60 Hz 3-ph, (UL/CSA)
92 A, 200 V 60 Hz 3-ph, (UL/CSA)
104 A, 240 V 60 Hz 3-ph, (UL/CSA)
100 HP, 600 V 60 Hz 3-ph, (UL/CSA)
30 HP, 200 V 60 Hz 3-ph, (UL/CSA)
75 HP, 480 V 60 Hz 3-ph, (UL/CSA)
40 HP, 240 V 60 Hz 3-ph, (UL/CSA)
99 A, 600 V 60 Hz 3-ph, (UL/CSA)
92 A, 200 V 60 Hz 3-ph, (UL/CSA)
104 A, 240 V 60 Hz 3-ph, (UL/CSA)
100 HP, 600 V 60 Hz 3-ph, (UL/CSA)
Special purpose rating of refrigeration control (CSA only)
540 A, LRA 600 V 60 Hz 3phase; (CSA)
90 A, FLA 600 V 60 Hz 3phase; (CSA)
90 A, FLA 480 V 60 Hz 3phase; (CSA)
540 A, LRA 480 V 60 Hz 3phase; (CSA)
90 A, FLA 600 V 60 Hz 3phase; (CSA)
90 A, FLA 480 V 60 Hz 3phase; (CSA)
540 A, LRA 480 V 60 Hz 3phase; (CSA)
Special purpose rating of resistance air heating
160 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA)
160 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA)
160 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA)
Special purpose rating of tungsten incandescent lamps
160 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA)
160 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA)
160 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA)
Verifica di progetto
Equipment heat dissipation, current-dependent Pvid
57 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
19 W
Rated operational current for specified heat dissipation (In)
200 A
Static heat dissipation, non-current-dependent Pvs
1.9 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| tensione di alimentazione pilota nominale AC 50 Hz (EF003978) | 0 V |
| tensione di alimentazione pilota nominale AC 60 Hz (EF003979) | 0 V |
| tensione di alimentazione pilota nominale DC (EF003980) | 24 V |
| tipo di tensione per l'azionamento (EF008242) | DC |
| numero di contatti di apertura, contatti principali (EF001375) | 0 |
| numero di contatti di chiusura, contatti principali (EF001374) | 4 |
| tipo di collegamento circuito elettrico principale (EF006819) | Screw connection |
| tensione d'esercizio AC 50 Hz (EF008206) | 230 V |
| tensione d'esercizio AC 60 Hz (EF008207) | 230 V |
| corrente d'esercizio nominale Ie per AC-1, 400 V (EF001393) | 200 A |
| corrente d'esercizio nominale Ie per AC-3, 400 V (EF001392) | 115 A |
| potenza d'esercizio nominale per AC-3, 400 V (EF001364) | 55 kW |
| corrente d'esercizio nominale Ie per AC-4, 400 V (EF008495) | 136 A |
| potenza d'esercizio nominale per AC-4, 400 V (EF008496) | 75 kW |
| potenza d'esercizio nominale NEMA (EF011960) | 93 kW |
| numero di contatti ausiliari, contatti di chiusura (EF001376) | 0 |
| numero di contatti ausiliari, contatti di riposo (EF001377) | 0 |
| adatto per installazione in serie (EF001126) | false |
| larghezza (EF000008) | 122 mm |
| altezza (EF000040) | 170 mm |
| profondità (EF000049) | 160 mm |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 35 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| DILMP200(RDC24) Y7-109930 109930 ES_109869.pdf | 2 Mbytes |
|
Recensioni: (0) ▲
Nessun commento per il momento.
Inserisci recensione
nascondi form
| Valutazione: |
|
| Nome: | |
| Email: | |
| Titolo: | |
| Testo: | |
| Mi consiglia questo prodotto da acquistare? | |
|
|
|
| Inserisci recensione | |
Tutti i feedback che riceviamo dagli elementi che offriamo sono reali e verificati. Un piccolo gesto, ma di grande valore. Quindi grazie per quel minuto si spende in noi lasciare il vostro parere e punteggio sui prodotti, perché ci aiuta a continuare a migliorare e di offrire ancora maggiore qualità del servizio.
