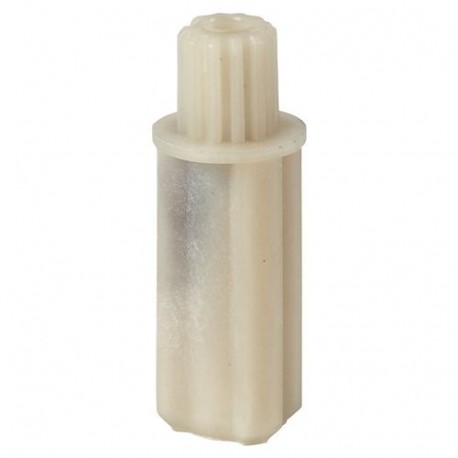

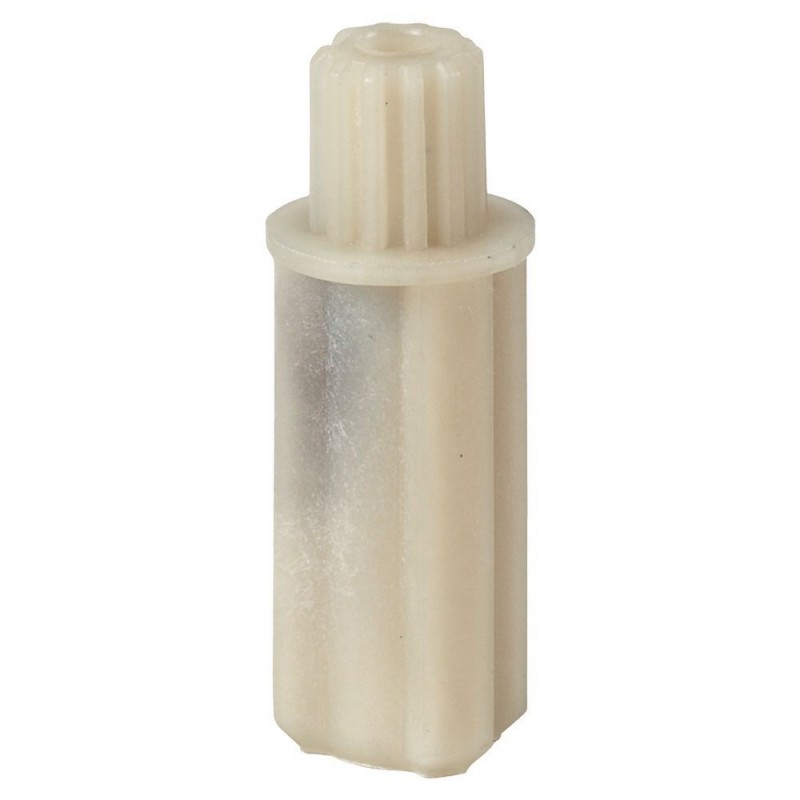

AZ-T0 082107 EATON ELECTRIC Prolungamento asse
AZ-T0
082107
EATON-MOELLER
Prolungamento asse
Albero Para T0 con montaggio a pannello inferiore
Eaton Moeller® series Shaft extension
apparecchi elettrici a bassa tensione > albero quadro di manovra interruttore
Sezionatori e interruttori a camme
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series Accessory Shaft extension
Catalog Number
082107
EAN
4015080821076
Product Length/Depth
36 mm
Product Height
11 mm
Product Width
11 mm
Product Weight
0.003 kg
Compliances
CE
Model Code
AZ-T0
Specifiche del prodotto
Type
Shaft extension
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Cross section height
8 mm
Cross section width
8 mm
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Shaft length
36 mm
Static heat dissipation, non-current-dependent Pvs
0 W
Material
Plastic
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON SAFE SWITCHING EN.pdf | 928 Kbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| AZ-T0 082107 IT_082107.pdf | 108 Kbytes |
|
