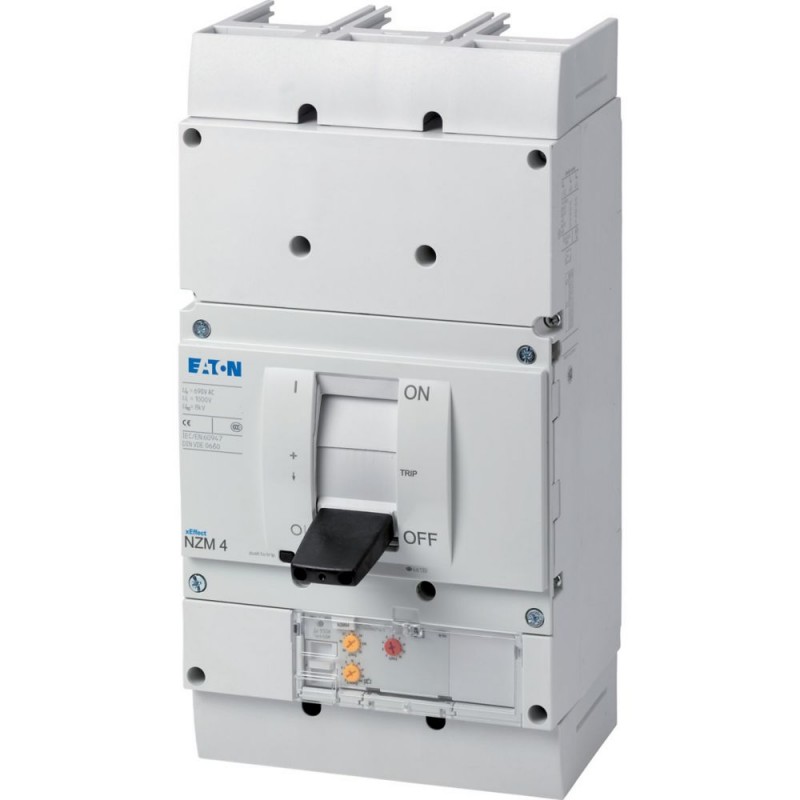

EATON - MOELLER NZML4-ME875 283219 Y7-283219 - Immagine 1

Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica per i dettagli.

NZML4-ME875 283219 Y7-283219 EATON ELECTRIC NZM interruttore scatolati

Riferimento: NZML4-ME875

Codice: 283219

Numero di catalogo: Y7-283219

Produttore: EATON - MOELLER

Descrizione:

NZM interruttore scatolati
Int. Auto NZM, 3P 875 A
Eaton Moeller series NZM - Molded Case Circuit Breaker. Circuit-breakers 3p 875 A
Interruttori automatici NZM. -La serie ME copre tutte le applicazioni con solo quattro dimensioni compatte ed è adatta per il mercato IEC. L'installazione è sempre flessibile grazie ai gruppi di funzioni modulari. Con sganciatore elettronico per la protezione del motore con sensibilità ai guasti di fase. Note: IEC/EN 60947-4-1, IEC/EN 60947-2, misurazione RMS e memoria termica, regolazione del ritardo regolabile per superare i picchi di corrente tr:2-20 a 6xIr e all'infinito (senza rilascio per sovraccarico)

Categorie:

  • Apparecchi elettrici a bassa tensione > Interruttore automatico salva motore
  • EATON - MOELLER > Interruttori automatici con custodia modellata NZM

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON - MOELLER

  • Dettagli
  • ETIM
  • PDF
  • Recensioni
Garanzia, riparazione e restituzione.

Prezzo unitario: 5.474,84 €

Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Calcola prezzo per quantità

QuantitàPrezzo

Scadenza standard: 3 settimane.

  • Questi tempi di consegna sono una stima e possono leggermente variare quando l'ordine sarà elaborato.

VISTI DI RECENTE

DETTAGLI

General specifications

Product Name
Eaton Moeller series NZM molded case circuit breaker electronic
Catalog Number
283219
EAN
4015082832193
Product Length/Depth
401 mm
Product Height
207 mm
Product Width
210 mm
Product Weight
21 kg
Compliances
RoHS conform
Certifications
IEC
IEC/EN 60947
Model Code
NZML4-ME875

Dati tecnici - elettrici

Voltage rating
690 V - 690 V
Rated insulation voltage (Ui)
1000 V
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
820 A (400 V AC-3)
588 A (690 V AC-3)
Rated short-time withstand current (t = 0.3 s)
19.2 kA
Rated short-time withstand current (t = 1 s)
19.2 kA
Amperage Rating
875 A
Instantaneous current setting (Ii) - min
875 A
Instantaneous current setting (Ii) - max
12250 A
Overload current setting (Ir) - min
438 A
Overload current setting (Ir) - max
875 A
Short-circuit release non-delayed setting - min
1750 A
Short-circuit release non-delayed setting - max
12250 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
63 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
43 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
43 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
49 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
37 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
275 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
220 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
187 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
143 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
105 kA
Rated operating power at AC-3, 230 V
250 kW
Rated operating power at AC-3, 400 V
500 kW
Short-circuit total breaktime
< 25 ms (≦ 415 V); < 35 ms (> 415 V)
Electrical connection type of main circuit
Screw connection
Isolation
300 V AC (between the auxiliary contacts)
500 V AC (between auxiliary contacts and main contacts)
Number of operations per hour - max
60
Handle type
Rocker lever
Utilization category
B (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
1000 operations at 690 V AC-3
3000 operations at 400 V AC-1
2000 operations at 690 V AC-1
3000 operations at 415 V AC-1
2000 operations at 415 V AC-3
2000 operations at 400 V AC-3
Direction of incoming supply
As required

Dati tecnici - comunicazione

Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
820 A (400 V AC-3)
588 A (690 V AC-3)
Rated short-time withstand current (t = 0.3 s)
19.2 kA
Rated short-time withstand current (t = 1 s)
19.2 kA
Amperage Rating
875 A
Instantaneous current setting (Ii) - min
875 A
Instantaneous current setting (Ii) - max
12250 A
Overload current setting (Ir) - min
438 A
Overload current setting (Ir) - max
875 A
Short-circuit release non-delayed setting - min
1750 A
Short-circuit release non-delayed setting - max
12250 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
63 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
43 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
43 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
49 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
37 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
275 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
220 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
187 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
143 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
105 kA
Rated operating power at AC-3, 230 V
250 kW
Rated operating power at AC-3, 400 V
500 kW
Short-circuit total breaktime
< 25 ms (≦ 415 V); < 35 ms (> 415 V)
Electrical connection type of main circuit
Screw connection
Isolation
300 V AC (between the auxiliary contacts)
500 V AC (between auxiliary contacts and main contacts)
Number of operations per hour - max
60
Handle type
Rocker lever
Utilization category
B (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
1000 operations at 690 V AC-3
3000 operations at 400 V AC-1
2000 operations at 690 V AC-1
3000 operations at 415 V AC-1
2000 operations at 415 V AC-3
2000 operations at 400 V AC-3
Direction of incoming supply
As required

Dati tecnici - meccanici

Mounting Method
Fixed
Built-in device fixed built-in technique
Degree of protection
IP20 (basic degree of protection, in the operating controls area)
IP20
Degree of protection (IP), front side
IP66 (with door coupling rotary handle)
IP40 (with insulating surround)
Degree of protection (terminations)
IP10 (tunnel terminal)
IP00 (terminations, phase isolator and strip terminal)
Protection against direct contact
Finger and back-of-hand proof to VDE 0106 part 100
Shock resistance
15 g (half-sinusoidal shock 11 ms)
Switch off technique
Electronic
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Lifespan, mechanical
10000 operations

ETIM for 283219 Apparecchi elettrici a bassa tensione (EC000074)

Nome caratteristicacampo di corrente dell'interruttore di sovraccarico (EF002336)
Valore caratteristica438 A
Nome caratteristicaintervallo di regolazione dell'attivatore di corto circuito non ritardato (EF007131)
Valore caratteristica875 A
Nome caratteristicacon protezione termica da sovratensioni (EF006233)
Valore caratteristicaSì
Nome caratteristicasensibile a guasto di fase (EF007400)
Valore caratteristicaSì
Nome caratteristicatecnica di intervento (EF007007)
Valore caratteristicaelettronico
Nome caratteristicatensione d'esercizio nominale (EF001435)
Valore caratteristica690 V
Nome caratteristicapotenza d'esercizio nominale per AC-3, 230 V (EF007025)
Valore caratteristica250 kW
Nome caratteristicapotenza d'esercizio nominale per AC-3, 400 V (EF001364)
Valore caratteristica500 kW
Nome caratteristicatipo di collegamento circuito elettrico principale (EF006819)
Valore caratteristicaraccordo a vite
Nome caratteristicatipo di elemento di azionamento (EF006976)
Valore caratteristicabilanciere
Nome caratteristicatipologia costruttiva dell'apparecchio (EF008240)
Valore caratteristicaapparecchio da incasso, tecnica a installazione fissa
Nome caratteristicacon interruttore ausiliario integrato (EF001387)
Valore caratteristicaNo
Nome caratteristicacon sganciatore di minima tensione integrato (EF001390)
Valore caratteristicaNo
Nome caratteristicanumero di poli (EF001391)
Valore caratteristica3
Nome caratteristicacorrente limite nominale di disinserzione al corto circuito a 400 V, AC (EF007049)
Valore caratteristica43 kA
Nome caratteristicagrado di protezione (IP) (EF005474)
Valore caratteristicaIP20
Nome caratteristicaaltezza (EF000040)
Valore caratteristica207 mm
Nome caratteristicalarghezza (EF000008)
Valore caratteristica210 mm
Nome caratteristicaprofondità (EF000049)
Valore caratteristica401 mm
