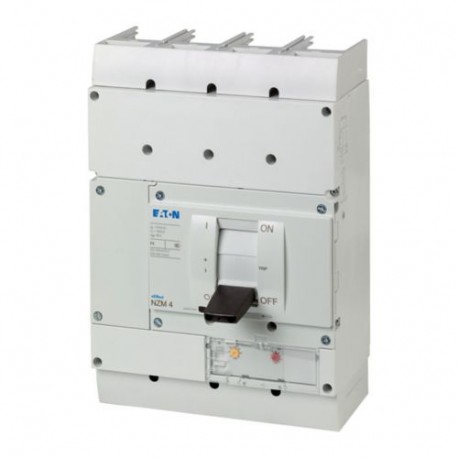

NZML4-4-AE1600 283230 Y7-283230 EATON ELECTRIC NZM interruttore scatolati
NZML4-4-AE1600
283230
Y7-283230
EATON-MOELLER
NZM interruttore scatolati
Int. Auto NZM, 4P, 1600 A
Eaton Moeller series NZM - Molded Case Circuit Breaker. Circuit-breakers 4p 1600 A
Interruttore automatico NZM4, 4 poli, Potenza di commutazione 400/415 V 50 Hz( Icu ): 100 kA, Corrente nominale = corrente nominale ininterrotta Corrente nominale = Corrente nominale ininterrotta ( In = Iu ): 1600 A, Tipo di installazione: Fisso, Collegamento a vite, Standard/Approvazione: IEC, Funzione di protezione: Protezione del sistema e dei cavi
Apparecchi elettrici a bassa tensione > Breaker per trasformatori / generatori / impianti
Interruttori automatici con custodia modellata NZM
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller series NZM molded case circuit breaker electronic
Catalog Number
283230
EAN
4015082832308
Product Length/Depth
401 mm
Product Height
207 mm
Product Width
280 mm
Product Weight
27 kg
Compliances
RoHS conform
Certifications
IEC/EN 60947
IEC
IEC
Model Code
NZML4-4-AE1600
Dati tecnici - elettrici
Voltage rating
690 V - 690 V
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Current rating of neutral conductor
200% of phase conductor
Rated short-time withstand current (t = 0.3 s)
19.2 kA
Rated short-time withstand current (t = 1 s)
19.2 kA
Amperage Rating
1600 A
Instantaneous current setting (Ii) - min
3200 A
Instantaneous current setting (Ii) - max
19200 A
Overload current setting (Ir)
800 A - 1600 A
Overload current setting (Ir) - min
800 A
Overload current setting (Ir) - max
1600 A
Short delay current setting (Isd) - min
0 A
Short delay current setting (Isd) - max
0 A
Short-circuit release non-delayed setting - min
3200 A
Short-circuit release non-delayed setting - max
19200 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
63 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
50 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
43 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
49 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
37 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
275 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
220 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
187 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
143 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
105 kA
Short-circuit total breaktime
< 25 ms (≦ 415 V); < 35 ms (> 415 V)
Electrical connection type of main circuit
Screw connection
Isolation
500 V AC (between auxiliary contacts and main contacts)
300 V AC (between the auxiliary contacts)
300 V AC (between the auxiliary contacts)
Number of operations per hour - max
60
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
3000 operations at 415 V AC-1
2000 operations at 400 V AC-3
2000 operations at 415 V AC-3
3000 operations at 400 V AC-1
1000 operations at 690 V AC-3
2000 operations at 690 V AC-1
2000 operations at 400 V AC-3
2000 operations at 415 V AC-3
3000 operations at 400 V AC-1
1000 operations at 690 V AC-3
2000 operations at 690 V AC-1
Direction of incoming supply
As required
Dati tecnici - comunicazione
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Current rating of neutral conductor
200% of phase conductor
Rated short-time withstand current (t = 0.3 s)
19.2 kA
Rated short-time withstand current (t = 1 s)
19.2 kA
Amperage Rating
1600 A
Instantaneous current setting (Ii) - min
3200 A
Instantaneous current setting (Ii) - max
19200 A
Overload current setting (Ir)
800 A - 1600 A
Overload current setting (Ir) - min
800 A
Overload current setting (Ir) - max
1600 A
Short delay current setting (Isd) - min
0 A
Short delay current setting (Isd) - max
0 A
Short-circuit release non-delayed setting - min
3200 A
Short-circuit release non-delayed setting - max
19200 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
63 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
50 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
43 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
49 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
37 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
275 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
220 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
187 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
143 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
105 kA
Short-circuit total breaktime
< 25 ms (≦ 415 V); < 35 ms (> 415 V)
Electrical connection type of main circuit
Screw connection
Isolation
500 V AC (between auxiliary contacts and main contacts)
300 V AC (between the auxiliary contacts)
300 V AC (between the auxiliary contacts)
Number of operations per hour - max
60
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
3000 operations at 415 V AC-1
2000 operations at 400 V AC-3
2000 operations at 415 V AC-3
3000 operations at 400 V AC-1
1000 operations at 690 V AC-3
2000 operations at 690 V AC-1
2000 operations at 400 V AC-3
2000 operations at 415 V AC-3
3000 operations at 400 V AC-1
1000 operations at 690 V AC-3
2000 operations at 690 V AC-1
Direction of incoming supply
As required
Dati tecnici - meccanici
Mounting Method
Built-in device fixed built-in technique
Fixed
Fixed
Degree of protection
IP20
IP20 (basic degree of protection, in the operating controls area)
IP20 (basic degree of protection, in the operating controls area)
Degree of protection (IP), front side
IP66 (with door coupling rotary handle)
IP40 (with insulating surround)
IP40 (with insulating surround)
Degree of protection (terminations)
IP10 (tunnel terminal)
IP00 (terminations, phase isolator and strip terminal)
IP00 (terminations, phase isolator and strip terminal)
Protection against direct contact
Finger and back-of-hand proof to DIN EN 50274/VDE 0106 part 110
Shock resistance
15 g (half-sinusoidal shock 11 ms)
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Position of connection for main current circuit
Front side
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Lifespan, mechanical
10000 operations
| Caratteristica | Valore |
|---|---|
| corrente permanente nominale Iu (EF001389) | 1600 A |
| tensione nominale (EF003977) | 690 V |
| corrente limite nominale di disinserzione al corto circuito a 400 V, 50 Hz (EF007048) | 50 kA |
| campo di corrente dell'interruttore di sovraccarico (EF002336) | 800 A |
| intervallo di regolazione dell'attivatore di corto circuito con ritardo breve (EF007129) | 0 A |
| intervallo di regolazione dell'attivatore di corto circuito non ritardato (EF007131) | 3200 A |
| tipologia costruttiva dell'apparecchio (EF008240) | apparecchio da incasso, tecnica a installazione fissa |
| protezione dalle dispersioni a terra integrata (EF007296) | No |
| tipo di collegamento circuito elettrico principale (EF006819) | raccordo a vite |
| adatto per montaggio su guida a cappello (EF007250) | No |
| montaggio su guida a DIN opzionale (EF008904) | No |
| numero di contatti ausiliari, contatti di riposo (EF001377) | 0 |
| numero di contatti ausiliari, contatti di chiusura (EF001376) | 0 |
| numero di contatti ausiliari, invertitori (EF003531) | 0 |
| con segnalatore di intervento presente (EF007006) | No |
| con sganciatore di minima tensione integrato (EF001390) | No |
| numero di poli (EF001391) | 4 |
| posizione del collegamento per circuito elettrico principale (EF006671) | davanti |
| tipo di elemento di azionamento (EF006976) | bilanciere |
| apparecchio completo con unità di sicurezza (EF008906) | Sì |
| azionamento a motore integrato (EF006697) | No |
| azionamento a motore opzionale (EF007386) | Sì |
| grado di protezione (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| NZML4-4-AE1600 Y7-283230 283230 ES_265975.pdf | 2 Mbytes |
|
