FAK-P-S 229751 Y7-229751 EATON ELECTRIC 229751 FAK-P-S Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

FAK-P-S 229751 Y7-229751 EATON ELECTRIC 229751 FAK-P-S

FAK-P-S

229751

Y7-229751

EATON-MOELLER

229751 FAK-P-S

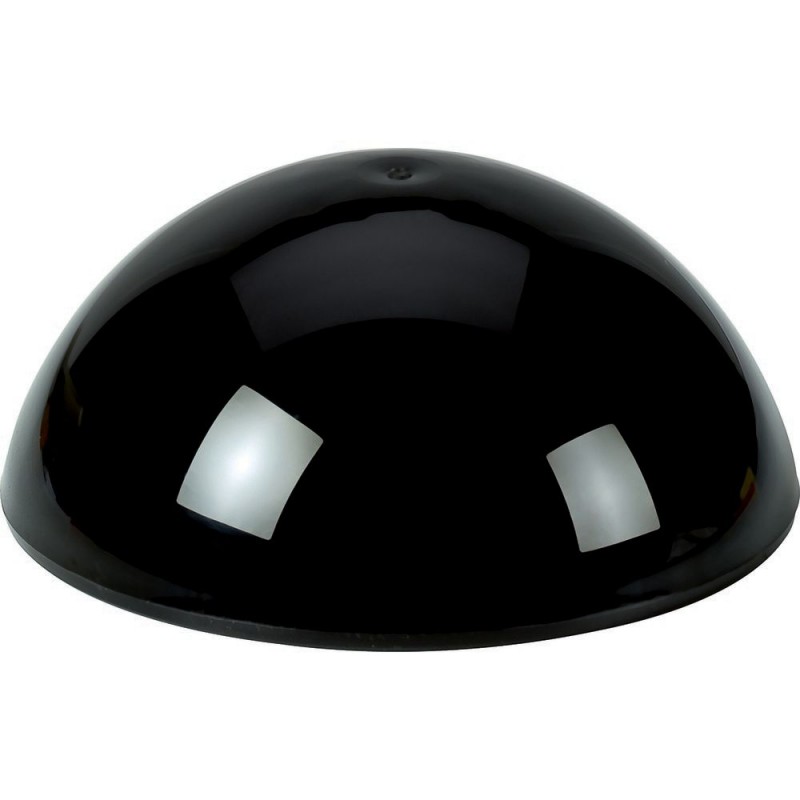

Pulsante a pedale/pulsante manuale nero

Eaton Moeller® series FAK Button, black

Pulsante FAK separato come pezzo di ricambio o per la colorazione personale. Corrisponde a tutti i FAK senza viti visibili sul pulsante. Quando è chiuso, è conforme allo stato di protezione IP67 e IP69K

Maggiori dettagli


Apparecchi elettrici a bassa tensione > cassetta per contatto a fungo pedale/pulsante

Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $10.65
Prezzo unitario: $10.65
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

Dettagli



General specifications

Product Name
Eaton Moeller® series FAK Accessory Mushroom head
Catalog Number
229751
EAN
4015082297510
Product Length/Depth
95 mm
Product Height
40 mm
Product Width
95 mm
Product Weight
0.038 kg
Compliances
CE
Model Code
FAK-P-S

Features & Functions

Color
Black

General

Connection to SmartWire-DT
No
Degree of protection
IP Other
NEMA Other
Product category
Accessories

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 229751 Apparecchi elettrici a bassa tensione (EC002031)
Caratteristica Valore
colore (EF000007) nero
grado di protezione (IP) (EF005474) altro
indice di protezione (NEMA) (EF011959) altro

Datasheet - PDF
