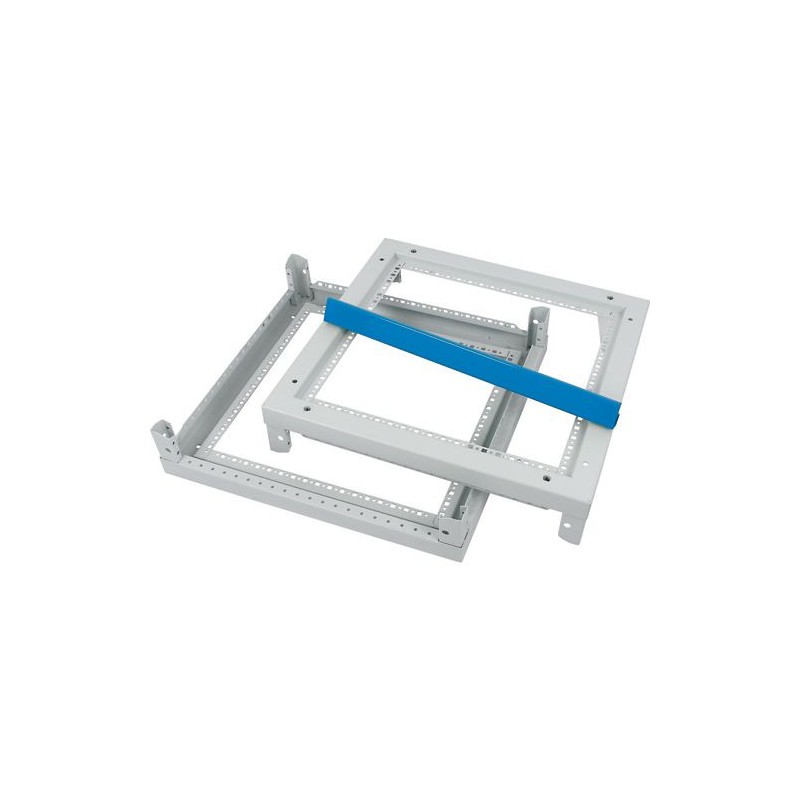

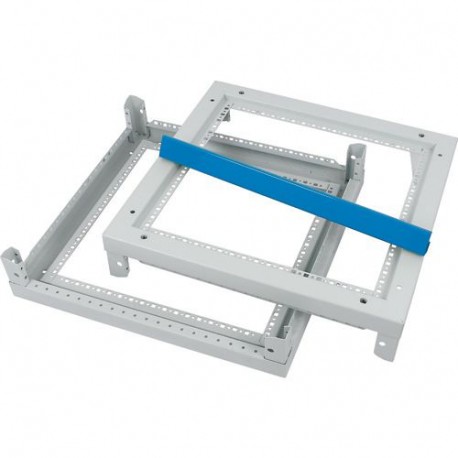

XLB1104 143348 Y7-143348 EATON ELECTRIC Basic frame, for WxD 1100x400mm

Riferimento: XLB1104

Codice: 143348

Numero di catalogo: Y7-143348

Produttore: EATON - MOELLER

Descrizione:

Basic frame, for WxD=1100x400mm
Telaio di base, per LxP=1100x400mm
XLB1104 - Telaio di base
Telaio per sezione vuota, telaio superiore e inferiore, con nastro di marca RAL 5017, lamiera d'acciaio, compreso il materiale di montaggio, verniciato a polvere in RAL 7035, larghezza 1100 mm, profondità 400 mm

Categorie:

  • sistemi di armadi elettrici > Cabinet di distribuzione
  • EATON - MOELLER > Scatole e armadi industriali

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON - MOELLER

  • Dettagli
  • ETIM
  • PDF
  • Recensioni
Garanzia, riparazione e restituzione.

Prezzo unitario: 232,76 €

Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Calcola prezzo per quantità

QuantitàPrezzo

Scadenza standard: 3 settimane.

  • Questi tempi di consegna sono una stima e possono leggermente variare quando l'ordine sarà elaborato.

VISTI DI RECENTE

DETTAGLI

General specifications

Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
143348
EAN
4015081400126
Product Length/Depth
1100 mm
Product Height
240 mm
Product Width
375 mm
Product Weight
19.4 kg
Compliances
RoHS conform
Model Code
XLB1104

Specifiche del prodotto

Features
EMC-version
Connectable
Mounting plate depth-adjustable
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Not applicable.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Not applicable.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Met; assembled and secured as per the latest applicable instruction leaflet.
10.2.6 Mechanical impact
IK10
10.2.7 Inscriptions
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
< 0.1 Ω; meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 690 V AC
10.9.3 Impulse withstand voltage
6 kV
10.9.4 Testing of enclosures made of insulating material
Does not apply to metal enclosures.
Pollution degree
3
Surface finishing
Powder coating
Degree of protection
IK10
Other
Material quality
Other
Color
Gray
Permissible load of the mounting plate according to IEC 62208 - max
4000 N
Number of locks
0
RAL-number
7035
Material
Steel
Mounting method
Wall fastening
Overvoltage category
IV
Installation type
Floor standing wall model
Protection class
I
Number of covers/doors
0
Suitable for
Metrical mounting
Permissible load of the enclosure according to IEC 62208 - max
5000 N
Permissible load of the door(s) according to IEC 62208 - max
1000 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
0 W
Number of connector holes
0

ETIM for 143348 Sistemi di armadi elettrici (EC000261)

Nome caratteristicalarghezza (EF000008)
Valore caratteristica375 mm
Nome caratteristicaaltezza (EF000040)
Valore caratteristica240 mm
Nome caratteristicaprofondità (EF000049)
Valore caratteristica1100 mm
Nome caratteristicamateriale (EF002169)
Valore caratteristicaacciaio
Nome caratteristicaqualità del materiale (EF001257)
Valore caratteristicaaltro
Nome caratteristicafinitura della superficie (EF006569)
Valore caratteristicarivestito a polvere
Nome caratteristicacolore (EF000007)
Valore caratteristicagrigio
Nome caratteristicanumero RAL (EF000116)
Valore caratteristica7035
Nome caratteristicaautonomo (EF020363)
Valore caratteristicaNo
Nome caratteristicamodello a parete verticale con presa a pavimento (EF015208)
Valore caratteristicaSì
Nome caratteristicaadatto per montaggio murale (EF000664)
Valore caratteristicaSì
Nome caratteristicamodello d'angolo (EF020814)
Valore caratteristicaNo
Nome caratteristicamontaggio intermedio (EF022994)
Valore caratteristicaNo
Nome caratteristicaaccoppiabile (EF001229)
Valore caratteristicaSì
Nome caratteristicacon piastra di montaggio (EF000118)
Valore caratteristicaNo
Nome caratteristicapiastra di montaggio a profondità regolabile (EF006054)
Valore caratteristicaSì
Nome caratteristicaadatto per montaggio a parete (EF007536)
Valore caratteristicaNo
Nome caratteristicafissaggio al palo (EF009582)
Valore caratteristicaNo
Nome caratteristicacon porta (EF009169)
Valore caratteristicaNo
Nome caratteristicanumero di porte (EF000122)
Valore caratteristica0
Nome caratteristicacon porta di visione (EF001089)
Valore caratteristicaNo
Nome caratteristicacon porta di ventilazione (EF006279)
Valore caratteristicaNo
Nome caratteristicacon porta posteriore (EF007381)
Valore caratteristicaNo
Nome caratteristicanumero di serrature (EF000123)
Valore caratteristica0
Nome caratteristicacon parte superiore (EF007965)
Valore caratteristicaNo
Nome caratteristicacoperchio trasparente (EF011401)
Valore caratteristicaNo
Nome caratteristicaadatto per montaggio metrico (EF005823)
Valore caratteristicaSì
Nome caratteristicatetto inclinato (EF009278)
Valore caratteristicaNo
Nome caratteristicaprestampaggi in rilievo (EF001039)
Valore caratteristicaNo
Nome caratteristicaversione EMC (EF001062)
Valore caratteristicaSì
Nome caratteristicaresistenza agli urti (EF004293)
Valore caratteristicaIK10
Nome caratteristicagrado di protezione (IP) (EF005474)
Valore caratteristicaaltro
Nome caratteristicaindice di protezione (NEMA) (EF011959)
Valore caratteristicaaltro
Nome caratteristicacapacità di dispersione termica (delta T = 20 K) secondo IEC/TR 60890 (EF014986)
Valore caratteristica0 W
Nome caratteristicacarico max. ammesso dell'armadio secondo IEC 62208 (EF014987)
Valore caratteristica5000 N
Nome caratteristicacarico max. ammesso della porta secondo IEC 62208 (EF014988)
Valore caratteristica1000 N
Nome caratteristicacarico max. ammesso della placca di montaggio secondo IEC 62208 (EF014989)
Valore caratteristica4000 N
