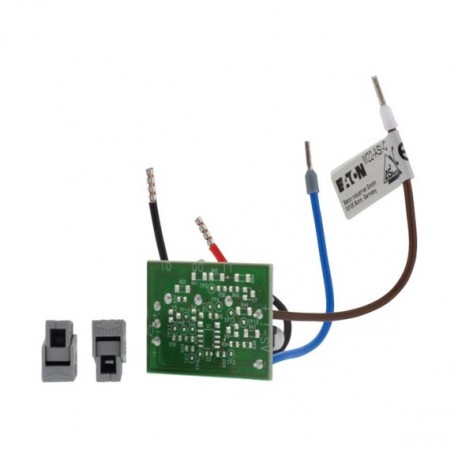

M22-ASI-C 231271 Y7-231271 EATON ELECTRIC Slave AS-Interface, 2I, 1Q, connessione a molla Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

M22-ASI-C 231271 Y7-231271 EATON ELECTRIC Slave AS-Interface, 2I, 1Q, connessione a molla

M22-ASI-C

231271

Y7-231271

EATON-MOELLER

Slave AS-Interface, 2I, 1Q, connessione a molla

AS-Interface 2I 1Q Modulo Snap-On

Eaton Moeller® series M22 AS-Interface module, 2I, 1Q, spring clamp connection

Accessori per il programma del dispositivo del circuito di controllo

Maggiori dettagli


Apparecchi elettrici a bassa tensione > adattatore per circuito di controllo

Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $109.65
Prezzo unitario: $109.65
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series M22 Accessory AS-Interface connection
Catalog Number
231271
EAN
4015082312718
Product Length/Depth
40 mm
Product Height
30 mm
Product Width
40 mm
Product Weight
0.017 kg
Certifications
CSA-C22.2 No. 94-91
DIN EN 50295
IEC/EN 60947
UL File No.: E29184
CSA Class No.: 3211-03
UL
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA File No.: 012528
UL 508
CSA-C22.2 No. 14-05
CSA
CE
Model Code
M22-ASI-C

Features & Functions

Bezel color
Titanium

General

Degree of protection
IP00
Input
2 Inputs (22 V/5 mA, protected against short-circuit)
Inputs for 2 contacts
Output
1 (normally 19 V/8 mA) Output, protected against short-circuit
Output for 1 LED element: M22-LED-...
Product category
Accessories
Protection
AS-Interface protected against polarity reversal
Protocol
AS-Interface (S-3.A.E)

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
30 g, Mechanical, Shock duration 11 ms

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electro magnetic compatibility

Radio interference class
EN 55011
EN 55022

Electrical rating

No-load current
30 A
Output voltage
24 V DC (-15/+10 %)
Power consumption
40 mA
Rated operational voltage
26.5 - 31.6 V DC (AS-Interface specification)

Communication

Addressing
Adress set via connection to AS-Interface cable
Connection to SmartWire-DT
No
Connection type
Base fixing for RMQ-Titan
Interfaces
2.1 (Output specification)
LED indicator
Status indication of POWER AS-Interface cable in the switch front: Green LED on the board
Status indication of ERROR AS-Interface, AS-Interface Master failure in the switch front: Red LED on the board
Number of modules
62 (Suconet-K)

Cable

Cable length
2 m connection cable

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1.3 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 231271 Apparecchi elettrici a bassa tensione (EC001020)
