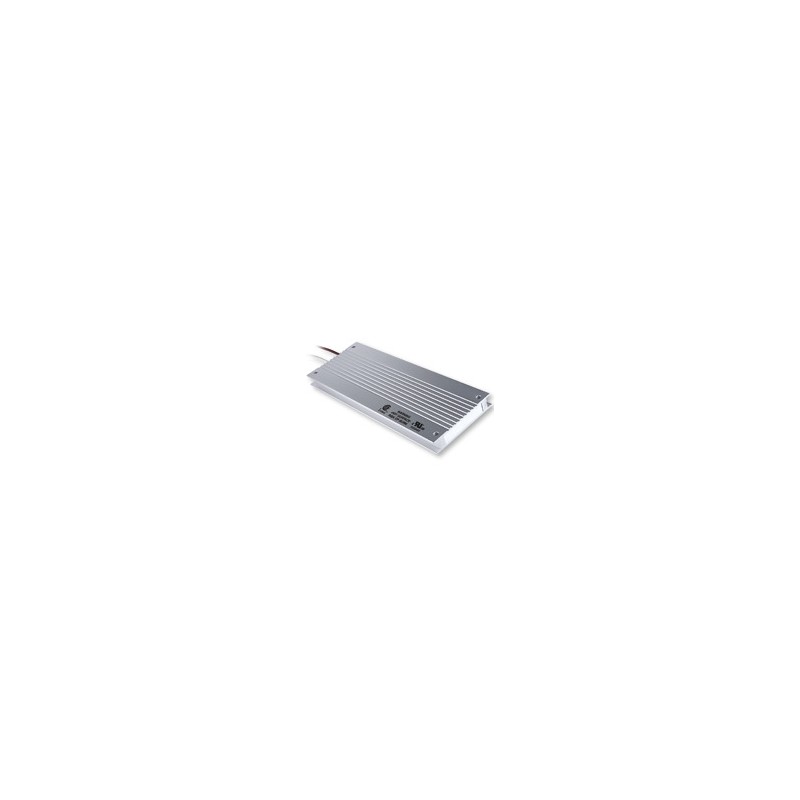

DANFOSS DRIVES 175U0987 175U0987 - Immagine 1

Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica per i dettagli.

175U0987 DANFOSS DRIVES Resistenza di frenatura 3HP, 460V, 5% ciclo di lavoro

Riferimento: 175U0987

Produttore: DANFOSS DRIVES

Descrizione:

Resistenza di frenatura 3HP, 460V, 5% ciclo di lavoro
Freno di res, 3HP, 460V, 5% Cyc Service
Type: BWD500210 for VLT types: FCD322 / 2815 (380-480V) / 5004 (380-500V) / FC300 PK55 (200-240V) / FC300P2K2 (380-480 / 500V) (here in after general technical data on the braking resistor, Duty cycle / braking power depends on the frequency converterNominal power: 200WResistance value: 210OhmBraking power:40% ED / cycle time 120s 400W30% ED / cycle time 120s 500W20% ED / cycle time 120s 700W10% ED / cycle time 120s 1200W5% ED / cycle time 120s 2000W2% ED / cycle time 120s 4000WDegree of protection: IP65Dimensions HxWxD: 216 x 80 x 15mmWeight: 0.6kg

Categorie:

  • DANFOSS DRIVES > OPZIONI E ACCESSORI FC302 FC202 FC102 - Danfoss Drives

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de DANFOSS DRIVES

  • Dettagli
  • PDF
  • Recensioni
Garanzia, riparazione e restituzione.

Prezzo unitario: 65,17 €

Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Calcola prezzo per quantità

QuantitàPrezzo
Spedizione in stock domani. 2 unità.

Più unità, scadenza standard: 2 settimane.

  • Questi tempi di consegna sono una stima e possono leggermente variare quando l'ordine sarà elaborato.

VISTI DI RECENTE

DETTAGLI

Type: BWD500210 for VLT types: FCD322 / 2815 (380-480V) / 5004 (380-500V) / FC300 PK55 (200-240V) / FC300P2K2 (380-480 / 500V) (here in after general technical data on the braking resistor, Duty cycle / braking power depends on the frequency converter

Nominal power: 200W
Resistance value: 210Ohm
Braking power:
40% ED / cycle time 120s 400W
30% ED / cycle time 120s 500W
20% ED / cycle time 120s 700W
10% ED / cycle time 120s 1200W
5% ED / cycle time 120s 2000W
2% ED / cycle time 120s 4000W
Degree of protection: IP65
Dimensions HxWxD: 216 x 80 x 15mm
Weight: 0.6kg

Dettagli prodotto

Peso lordo0.55 Kilogram
Peso netto0.55 Kilogram
Volume0.415 Liter
EAN5702427041431
Peso lordo0.55 Kilogram
Peso netto0.55 Kilogram
Volume0.415 Liter
EAN5702427041431
