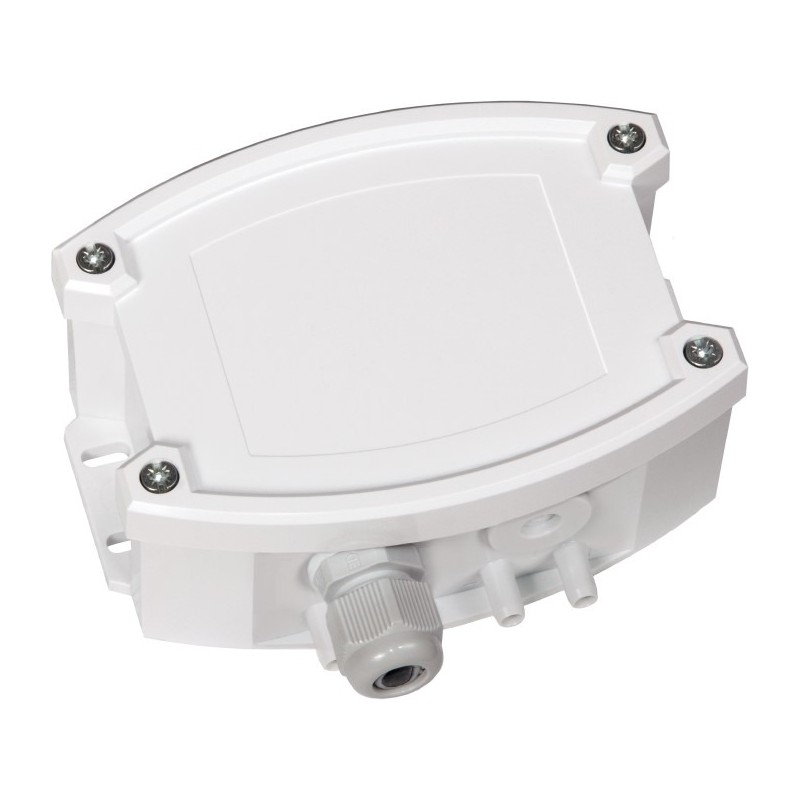

DANFOSS DRIVES 134B9406 Pressure Sensor 7227 2x7000Pa, Analog - Immagine 1

Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica per i dettagli.

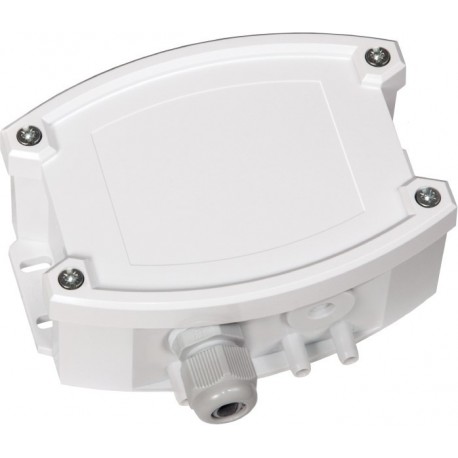

134B9406 Pressure Sensor 7227 2x7000Pa, Analog DANFOSS DRIVES 7227 Sensore di pressione 2x7000Pa, analogico

Codice: 134B9406

Numero di catalogo: Pressure Sensor 7227 2x7000Pa, Analog

Produttore: DANFOSS DRIVES

Descrizione:

7227 Sensore di pressione 2x7000Pa, analogico
DUAL AIR PRESSURE SENSOR ±7000PA ±7000PA, ANALOGUEDual pressure transmitter with 2x8 switchable measuring ranges and 2 automated analogue output signals in a resistant IP65 plastic housing with quick-locking screws, connection nozzles for pressure hose (Ø 6 mm) and a M16 cable gland for cable connection. The pressure measuring transducer automatically detects the required output type and converts the measurands into the required standard signal of 0–10 V or 4...20 mA.Pressure range selection: ± 7000 Pa – 0…1000Pa / 2000Pa / 3000Pa / 5000Pa / 7000PaAccuracy: 7000 Pa typical ± 105 PaZero point offset: ± 10 % of measuring rangeAbove- # below-pressure: max. ± 50 kPaPower: 24VAC/DC (± 10%)

Categorie:

  • DANFOSS DRIVES > OPZIONI E ACCESSORI FC302 FC202 FC102 - Danfoss Drives

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de DANFOSS DRIVES

  • Dettagli
  • Recensioni
Garanzia, riparazione e restituzione.

Prezzo unitario: 193,01 €

Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Calcola prezzo per quantità

QuantitàPrezzo

Scadenza standard: 1-2 settimane.

  • Questi tempi di consegna sono una stima e possono leggermente variare quando l'ordine sarà elaborato.

VISTI DI RECENTE

DETTAGLI

DUAL AIR PRESSURE SENSOR ±7000PA ±7000PA, ANALOGUE

Dual pressure transmitter with 2x8 switchable measuring ranges and 2 automated analogue output signals in a resistant IP65 plastic housing with quick-locking screws, connection nozzles for pressure hose (Ø 6 mm) and a M16 cable gland for cable connection. The pressure measuring transducer automatically detects the required output type and converts the measurands into the required standard signal of 0–10 V or 4...20 mA.
Pressure range selection: ± 7000 Pa – 0…1000Pa / 2000Pa / 3000Pa / 5000Pa / 7000Pa
Accuracy: 7000 Pa typical ± 105 Pa
Zero point offset: ± 10 % of measuring range
Above- # below-pressure: max. ± 50 kPa
Power: 24VAC/DC (± 10%) <1,3W,
Output: automatically switching 0 -10 V # 4...20 mA
Working resistance: Ra (ohms) = 25...450 Ohm (at I output)
Load resistance: RL > 15 kOhm (at U output)
Operation / Media temperature: –20...+50 °C / –4...+122 °F
T2-IP65 plastic housing with one M16 cable gland
Housing dimensions: 126 x 90 x 50 mm / 4.96 x 3.54 x 1.97 in

Dettagli prodotto

Peso lordo0.395 Kilogram
Peso netto0.185 Kilogram
Volume2.43 Liter
EAN5715253547039
Peso lordo0.395 Kilogram
Peso netto0.185 Kilogram
Volume2.43 Liter
EAN5715253547039
