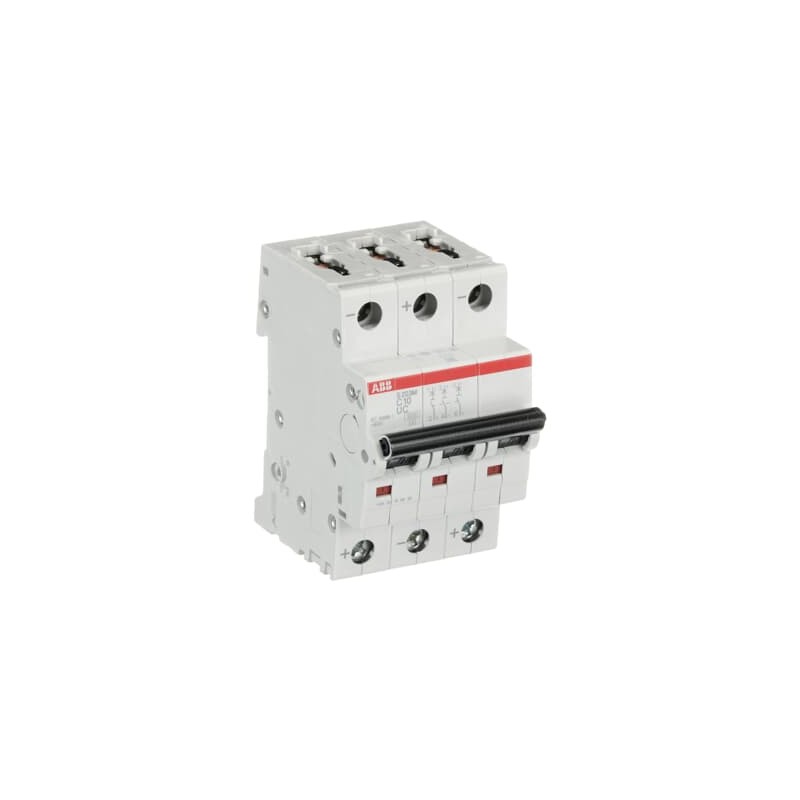

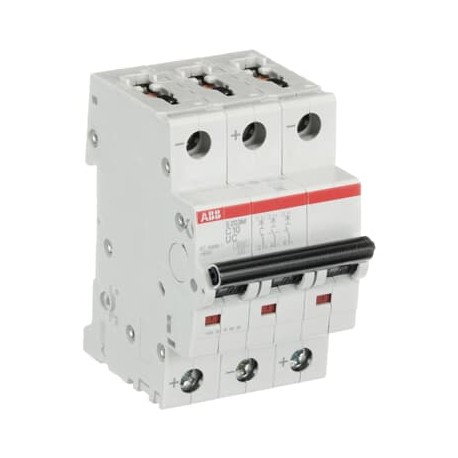

2CDS273061R0104 ABB The miniature circuit breaker S 200 M UC extends the established ABB System pro M compac..
2CDS273061R0104
ABB
The miniature circuit breaker S 200 M UC extends the established ABB System pro M compact® product range with an MCB for DC and AC applications. The S 200 M UC impresses with its performance range and the accordingly large amount of approvals. Its high inbuilt short circuit breaking capacity across the entire model line, its flexible AC and DC application and its approval and compliance in accordance with all major international and local standards make it truly unique. All current System pro M compact® accessories can be combined easily with the new model line. Whether warehousing or project engineering, planning, installing or maintaining your equipment, the S 200 M UC is a simple and flexible solution
Industriale
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de ABB
Più venduti
▲Dettagli
▲ABB EcoSolutions
| ABB EcoSolutions: | Yes |
| Recyclability Rate of the Product acc. to EN45555: | Design for Closing Resource Loops - Standard EN45555 - 80.7 % |
| ABB Site Meeting Group Waste To Landfill Target: | No non-hazardous waste is sent to a landfill |
| Extended Product Lifetime: | Product Durability |
| End Of Life Disassembling Instructions: | End of life instruction S200, S200L, SZ200, SC200, S200M, S200M(T)UC |
| Environmental Product Declaration - EPD: | EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family |
Technical
| Dielectric Test Voltage: | 50 / 60 Hz - 1 min 2 kV |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (220 V DC) 25 kA (230 V AC) 25 kA (400 V AC) 10 kA (440 V AC) 10 kA (440 V DC) 10 kA (230 V) 10 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics): | (220 V DC) 20 kA |
| Power Supply Connection: | Please Note Polarity of Device |
| Contact Position Indication: | Red ON / Green OFF |
| Energy Limiting Class: | 3 |
| Electrical Endurance: | 20000 AC cycle |
| Mechanical Endurance: | 20000 cycle |
| Number of Protected Poles: | 3 |
| Number of Poles: | 3P |
| Tightening Torque: | 2.8 N·m |
| Actuator Type: | Toggle |
| Screw Terminal Type: | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Marking: | I / O |
| Actuator Material: | Insulation Group II, Black, Sealable |
| Options Provided: | Universal current |
| Recommended Screw Driver: | Pozidriv 2 |
| Accessories Available: | Yes |
| Remarks: | Please note polarity of device |
| Connecting Capacity: | Busbar 10/10 mm² Flexible with Ferrule 0.75 ... 25 mm² Flexible 0.75 ... 25 mm² Rigid 0.75 ... 35 mm² Stranded 0.75 ... 35 mm² |
| Installation Size: | acc. to DIN 43880 1 |
| Terminal Type: | Screw Terminals |
Electrical
| Tripping Characteristic: | C |
| Rated Operational Voltage: | acc. to IEC 60898-1 400 V AC acc. to IEC 60898-1 440 V DC acc. to IEC 60898-2 400 V AC acc. to IEC 60947-2 440 V AC acc. to IEC 60947-2 440 V DC |
| Operational Voltage: | Maximum (Incl. Tolerance) 440 V AC Maximum (Incl. Tolerance) 500 V DC Minimum 12 V AC Minimum 12 V DC |
| Rated Insulation Voltage (Ui): | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (Uimp): | 4 kV at 2000 m 5 kV at Sea Level 6.2 kV |
| Input Voltage Type: | AC/DC |
| Rated Current (In): | 10 A |
| Rated Short-Circuit Capacity: | (AC) 10 kA (230 V AC) 10 kA (253 V AC) 10 kA (400 V AC) 10 kA (440 V DC) 10 kA (230 V) 10 kA (400 V) 10 kA |
| Rated Conditional Short-Circuit Current (Inc): | (230 V) 25 kA (400 V) 10 kA |
| Rated Frequency (f): | 50 / 60 Hz DC |
| Power Loss: | 5.07 W at Rated Operating Conditions per Pole 1.69 W |
| Overvoltage Category: | III |
Design
| Housing Material: | Insulation Group I, RAL 7035 |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA: | 480Y/277 V AC 500 V DC |
| Interrupting Rating acc. to UL1077: | (220 V AC) 10 kA (277 V AC) 6 kA (440 V DC) 10 kA (480Y / 277 V AC) 10 kA (500 V DC) 10 kA |
| Connecting Capacity UL/CSA: | Busbar 14-8 AWG Conductor 14-4 AWG |
| Tightening Torque UL/CSA: | 25 in·lb |
Material Compliance
| RoHS Declaration: | RoHS Exemption Manufacturer’s Declaration |
| RoHS Information: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date: | 20260312 |
| REACH Declaration: | REACH – Manufacturer’s Declaration |
| REACH Information: | False - does not contain substances > 0.1 mass percentage |
| REACH Date: | 20260312 |
| Conflict Minerals Reporting Template (CMRT): | Conflict Minerals Reporting Template |
| Toxic Substances Control Act - TSCA: | Product Information TCSA 6(h) |
| SCIP: | cec6beff-be12-4313-bcef-0d0cbaa3ae87 Germany |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
Environmental
| Ambient Air Temperature: | Operation -25 ... +55 °C Storage -40 ... +70 °C |
| Reference Ambient Air Temperature: | 30 °C |
| Degree of Protection: | IP20 Enclosure with Cover IP40 |
| Pollution Degree: | 3 |
| Environmental Conditions: | 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 % |
| Resistance to Vibrations: | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27: | 25g 2 shocks 13 ms |
| Environmental Information: | 2CDK400030D201 |
Dimensions
| Width in Number of Modular Spacings: | 3 |
| Product Net Width: | 52.5 mm |
| Product Net Height: | 85 mm |
| Product Net Depth / Length: | 69 mm |
| Product Net Weight: | 0.351 kg |
| Pole Net Weight: | 0.125 kg |
| Built-In Depth (t2): | 69 mm |
Ordering
| Package Level 1 Units: | carton 1 piece |
| Package Level 1 Gross Weight: | 0.371 kg |
| E-Number (Finland): | 3210430 |
| E-Number (Norway): | 1682672 |
Certificates and Declarations
| Declaration of Conformity - CE: | EU Declaration S200 MUC |
Installation
| Instructions and Manuals: | S200, S300 instruction manual |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Mounting Position: | any |
Popular Downloads
| Data Sheet, Technical Information: | MCB S200 M UC for DC and AC applications |
External Classifications and Standards
| ETIM 9: | EC000042 - Miniature circuit breaker (MCB) |
| ETIM 10: | EC000042 - Miniature circuit breaker (MCB) |
| UNSPSC: | 39121603 |
| eClass: | V11.0 : 27141901 |
| IDEA Granular Category Code (IGCC): | 4899 >> Miniature circuit breaker (MCB) screw-in model |
| Object Classification Code: | F |
| Standards: | IEC/EN 60898-1 IEC/EN 60947-2 |
| Certification Agency: | EN IEC |
| Standardization Body: | EN IEC |
