11BGP09T4D125 BGP09T4D125 LOVATO Recherche
11BGP09T4D125
BGP09T4D125
LOVATO ELECTRIC
Recherche

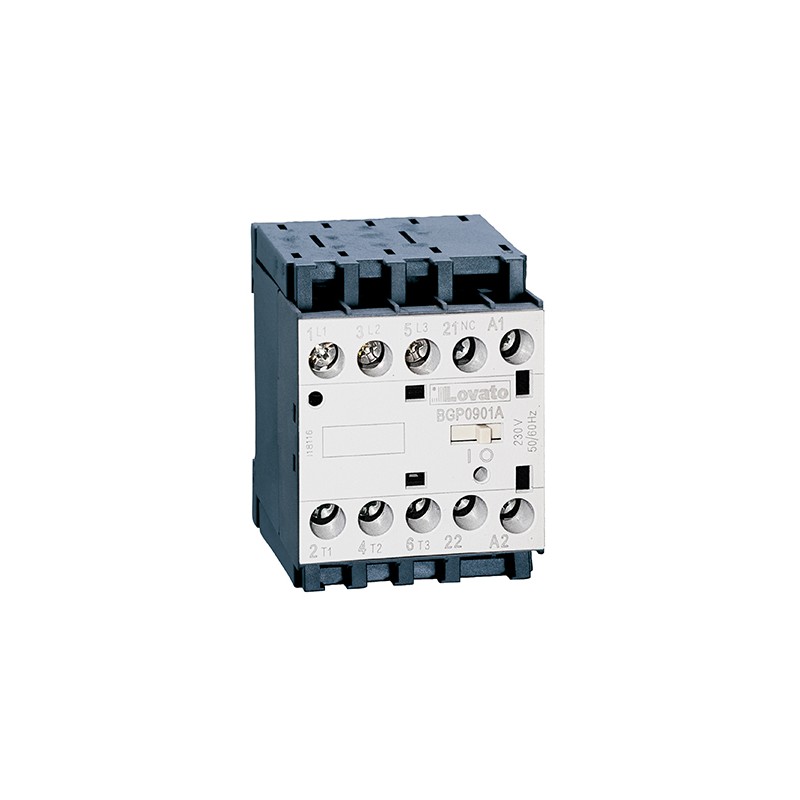

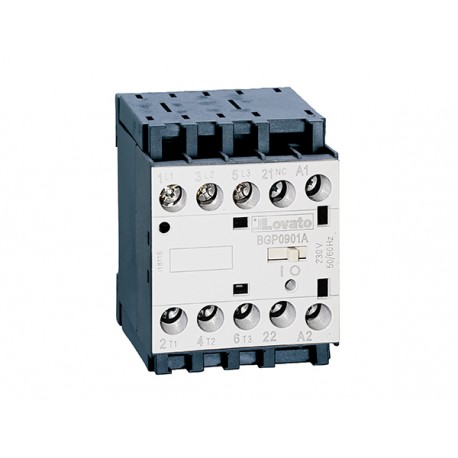

Minicontactor Tetrapolar 20A AC1 Bobine 125V DC Circuit imprimé
CONTACTEUR À QUATRE PÔLES, BOBINE CC, 125VDC, BROCHE DE SOUDURE DE PCB ARRIÈRE
Contacteurs et accessoires - LOVATO ELECTRIC
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par LOVATO ELECTRIC
En savoir plus
▲| Code de commande : | 11BGP09T4D125 |
| Poids [g] | 242 |
| Quantité paquet produit | 1 |
| Quantité paquets multiples | 10 |
| Dimensions [mm] de l'emballage du produit | 060X045X070 |
| Volume [cm³] | 189 |
| Code à barres [EAN13] | 8013975145401 |
| Code HS | 85365080 |
Dimensions
Schéma électrique
Certifications :
EAC
cURus
EAC
cURus
Conformité :
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
| Product designation | Power contactor | |||
| Product type designation | BGP09 | |||
| Contact characteristics | ||||
| Number of poles | nr. | 4 | ||
| Rated insulation voltage Ui IEC/EN | V | 690 | ||
| Rated impulse withstand voltage Uimp | kV | 6 | ||
| Operational frequency | ||||
| min | Hz | 25 | ||
| max | Hz | 400 | ||
| IEC Conventional free air thermal current Ith | A | 20 | ||
| Operational current Ie | ||||
| AC-1 (≤40°C) | A | 20 | ||
| AC-3 (≤440V ≤55°C) | A | 9 | ||
| AC-4 (400V) | A | 4 | ||
| Rated operational power AC-1 (T≤40°C) | ||||
| 230V | kW | 8 | ||
| 400V | kW | 14 | ||
| 500V | kW | 16 | ||
| 690V | kW | 22 | ||
| Short-time allowable current for 10s (IEC/EN60947-1) | A | 96 | ||
| Protection fuse | ||||
| gG (IEC) | A | 20 | ||
| aM (IEC) | A | 10 | ||
| Making capacity (RMS value) | A | 92 | ||
| Breaking capacity at voltage | ||||
| 440V | A | 72 | ||
| 500V | A | 72 | ||
| 690V | A | 72 | ||
| Resistance per pole (average value) | mΩ | 10 | ||
| Power dissipation per pole (average value) | ||||
| Ith | W | 4 | ||
| AC3 | W | 0.81 | ||
| Tightening torque for terminals | ||||
| min | Nm | 0.8 | ||
| max | Nm | 1 | ||
| min | Ibin | 0.6 | ||
| max | Ibin | 0.7 | ||
| Tightening torque for coil terminal | ||||
| min | Nm | 0.8 | ||
| max | Nm | 1 | ||
| min | Ibft | 0.59 | ||
| max | Ibft | 0.74 | ||
| Max number of wires simultaneously connectable | nr. | 2 | ||
| Conductor section | ||||
| Flexible w/o lug conductor section | ||||
| min | mm² | 0.8 | ||
| max | mm² | 2.5 | ||
| Flexible c/w lug conductor section | ||||
| min | mm² | 1.5 | ||
| max | mm² | 2.5 | ||
| Flexible with insulated spade lug conductor section | ||||
| min | mm² | 1.5 | ||
| max | mm² | 2.5 | ||
| Power terminal protection according to IEC/EN 60529 | IP00 | |||
| Mechanical features | ||||
| Operating position | ||||
| normal | vertical plan | |||
| allowable | ±30° | |||
| Fixing | Screw / DIN rail 35mm | |||
| Weight | g | 242 | ||
| Auxiliary contact characteristics | ||||
| Type of contact | 1 NA | |||
| Thermal current Ith | A | 10 | ||
| IEC/EN 60947-5-1 designation | Q600 | |||
| Operations | ||||
| Mechanical life | cycles | 20000000 | ||
| Electrical life | cycles | 500000 | ||
| Safety related data | ||||
| Performance level B10d according to EN/ISO 13489-1 | ||||
| rated load | cycles | 500000 | ||
| mechanical load | cycles | 20000000 | ||
| Mirror contats according to IEC/EN 609474-4-1 | yes | |||
| EMC compatibility | yes | |||
| DC coil operating | ||||
| DC rated control voltage | V | 125 | ||
| DC operating voltage | ||||
| pick-up | ||||
| min | %Us | 75 | ||
| max | %Us | 115 | ||
| drop-out | ||||
| min | %Us | 10 | ||
| max | %Us | 25 | ||
| Average coil consumption ≤20°C | ||||
| in-rush | W | 3.2 | ||
| holding | W | 3.2 | ||
| Max cycles frequency | ||||
| Mechanical operation | cycles/h | 3600 | ||
| Operating times | ||||
| Average time for Us control | ||||
| in AC | ||||
| Closing NO | ||||
| min | ms | 12 | ||
| max | ms | 21 | ||
| Opening NO | ||||
| min | ms | 9 | ||
| max | ms | 18 | ||
| Closing NC | ||||
| min | ms | 17 | ||
| max | ms | 26 | ||
| Opening NC | ||||
| min | ms | 7 | ||
| max | ms | 17 | ||
| in DC | ||||
| Closing NO | ||||
| min | ms | 18 | ||
| max | ms | 25 | ||
| Opening NO | ||||
| min | ms | 2 | ||
| max | ms | 3 | ||
| Closing NC | ||||
| min | ms | 3 | ||
| max | ms | 5 | ||
| Opening NC | ||||
| min | ms | 11 | ||
| max | ms | 17 | ||
| UL technical data | ||||
| Full-load current (FLA) for three-phase AC motor | ||||
| at 480V | A | 7.6 | ||
| at 600V | A | 6.1 | ||
| Yielded mechanical performance | ||||
| for single-phase AC motor | ||||
| 110/120V | HP | 0.5 | ||
| 230V | HP | 1.5 | ||
| for three-phase AC motor | ||||
| 200/208V | HP | 2 | ||
| 220/230V | HP | 3 | ||
| 460/480V | HP | 5 | ||
| 575/600V | HP | 5 | ||
| General USE | ||||
| Contactor | ||||
| AC current | A | 20 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -50 | ||
| max | °C | +70 | ||
| Storage temperature | ||||
| min | °C | -60 | ||
| max | °C | +80 | ||
| Max altitude | m | 3000 | ||
| Resistance & Protection | ||||
| Pollution degree | 3 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC000066 - Power contactor, AC switching | |||
