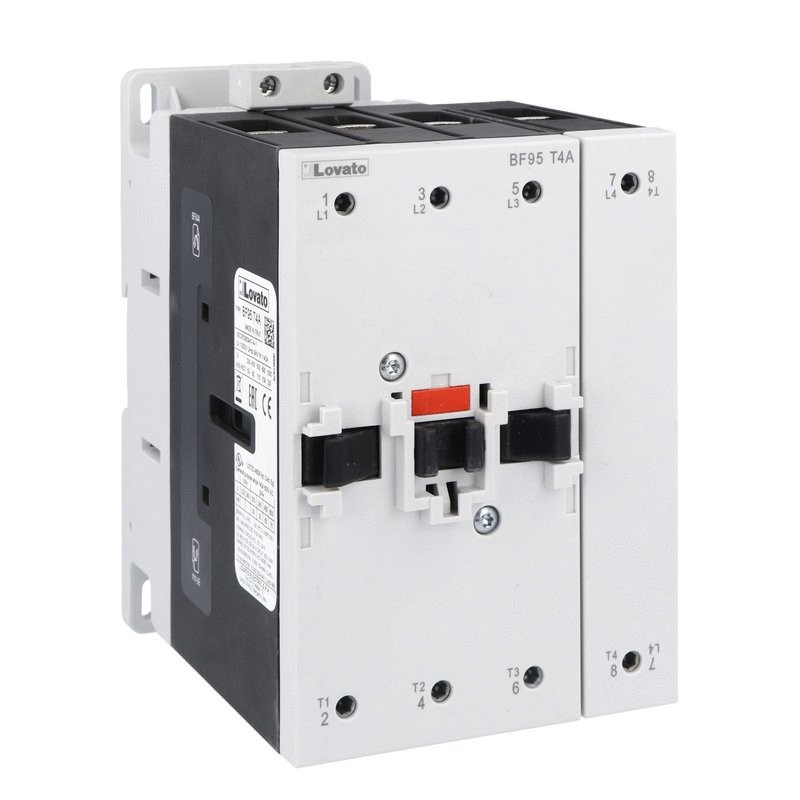

BF95T4A04860 LOVATO CONTACTEUR 4P 140A AC1 48VAC 60HZ
BF95T4A04860
LOVATO ELECTRIC
CONTACTEUR 4P 140A AC1 48VAC 60HZ
CONTACTEUR À QUATRE PÔLES, COURANT DE FONCTIONNEMENT IEC ITH (AC1) = 140A, BOBINE CA 60HZ, 48VAC
Appareillage industriel basse tension > Contacteur de puissance pour courant alternatif
Contacteurs et accessoires - LOVATO ELECTRIC
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par LOVATO ELECTRIC
Les plus vendus
▲En savoir plus
▲| Code de commande : | BF95T4A04860 |
| Poids [g] | |
| Quantité paquet produit | 1 |
| Quantité paquets multiples | 1 |
| Dimensions [mm] de l'emballage du produit | 173X108X145 |
| Volume [cm³] | 2709 |
| Code à barres [EAN13] | 8013975239230 |
| Code HS | 85365080 |
CCC
EAC
cULus
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
| Product designation | Power contactor | |||
| Product type designation | BF95 | |||
| Contact characteristics | ||||
| Number of poles | Nr. | 4 | ||
| Rated insulation voltage Ui IEC/EN | V | 1000 | ||
| Rated impulse withstand voltage Uimp | kV | 8 | ||
| Operational frequency | ||||
| min | Hz | 25 | ||
| max | Hz | 400 | ||
| IEC Conventional free air thermal current Ith | A | 140 | ||
| Operational current Ie | ||||
| AC-1 (≤40°C) | A | 140 | ||
| AC-1 (≤55°C) | A | 115 | ||
| AC-1 (≤70°C) | A | 100 | ||
| AC-3 (≤440V ≤55°C) | A | 95 | ||
| AC-4 (400V) | A | 45 | ||
| IEC max current Ie in DC1 with L/R ≤ 1ms with 1 poles in series | ||||
| ≤24V | A | 140 | ||
| 48V | A | 140 | ||
| 75V | A | 100 | ||
| 110V | A | 10 | ||
| 220V | A | – | ||
| IEC max current Ie in DC1 with L/R ≤ 1ms with 2 poles in series | ||||
| ≤24V | A | 140 | ||
| 48V | A | 140 | ||
| 75V | A | 140 | ||
| 110V | A | 110 | ||
| 220V | A | 12 | ||
| IEC max current Ie in DC1 with L/R ≤ 1ms with 3 poles in series | ||||
| ≤24V | A | 140 | ||
| 48V | A | 140 | ||
| 75V | A | 155 | ||
| 110V | A | 120 | ||
| 220V | A | 125 | ||
| IEC max current Ie in DC1 with L/R ≤ 1ms with 4 poles in series | ||||
| ≤24V | A | 140 | ||
| 48V | A | 140 | ||
| 75V | A | 155 | ||
| 110V | A | 140 | ||
| 220V | A | 140 | ||
| IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 1 poles in series | ||||
| ≤24V | A | 140 | ||
| 48V | A | 44 | ||
| 75V | A | 36 | ||
| 110V | A | 6 | ||
| 220V | A | – | ||
| IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 2 poles in series | ||||
| ≤24V | A | 140 | ||
| 48V | A | 63 | ||
| 75V | A | 60 | ||
| 110V | A | 55 | ||
| 220V | A | 7 | ||
| IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 3 poles in series | ||||
| ≤24V | A | 140 | ||
| 48V | A | 115 | ||
| 75V | A | 90 | ||
| 110V | A | 85 | ||
| 220V | A | 76 | ||
| IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 4 poles in series | ||||
| ≤24V | A | 140 | ||
| 48V | A | 110 | ||
| 75V | A | 110 | ||
| 110V | A | 105 | ||
| 220V | A | 95 | ||
| Short-time allowable current for 10s (IEC/EN60947-1) | A | 760 | ||
| Protection fuse | ||||
| gG (IEC) | A | 160 | ||
| aM (IEC) | A | 100 | ||
| Making capacity (RMS value) | A | 1200 | ||
| Breaking capacity at voltage | ||||
| 440V | A | 1100 | ||
| 500V | A | 775 | ||
| 690V | A | 745 | ||
| Resistance per pole (average value) | mΩ | 0.45 | ||
| Power dissipation per pole (average value) | ||||
| Ith | W | 8.8 | ||
| AC3 | W | 4.1 | ||
| Tightening torque for terminals | ||||
| min | Nm | 6 | ||
| max | Nm | 7 | ||
| min | Ibin | 4.4 | ||
| max | Ibin | 5.2 | ||
| Tightening torque for coil terminal | ||||
| min | Nm | 0.8 | ||
| max | Nm | 1 | ||
| min | Ibin | Prodotti finiti | ||
| max | Ibin | Prodotti finiti | ||
| Conductor section | ||||
| Flexible w/o lug conductor section | ||||
| min | mm² | 1.5 | ||
| max | mm² | 70 | ||
| Flexible c/w lug conductor section | ||||
| min | mm² | 1.5 | ||
| max | mm² | 70 | ||
| Power terminal protection according to IEC/EN 60529 | IP20 front | |||
| Mechanical features | ||||
| Operating position | ||||
| normal | vertical plan | |||
| allowable | ±30° | |||
| Fixing | Screw / DIN rail 35mm | |||
| Weight | g | 2420 | ||
| Auxiliary contact characteristics | ||||
| Thermal current Ith | A | 140 | ||
| Operations | ||||
| Mechanical life | cycles | 15000000 | ||
| Electrical life | cycles | 1400000 | ||
| Rated AC voltage at 60Hz | V | 48 | ||
| AC coil operating | ||||
| AC operating voltage | ||||
| of 60Hz coil powered at 60Hz | ||||
| pick-up | ||||
| min | %Us | 80 | ||
| max | %Us | 110 | ||
| drop-out | ||||
| min | %Us | 20 | ||
| max | %Us | 55 | ||
| Dissipation at holding ≤20°C 50Hz | W | 6.5 | ||
| Max cycles frequency | ||||
| Mechanical operation | cycles/h | 1500 | ||
| Operating times | ||||
| Average time for Us control | ||||
| in AC | ||||
| Closing NO | ||||
| min | ms | 16 | ||
| max | ms | 32 | ||
| Opening NO | ||||
| min | ms | 9 | ||
| max | ms | 24 | ||
| UL technical data | ||||
| General USE | ||||
| Contactor | ||||
| AC current | A | 150 | ||
| Short-circuit protection fuse, 600V | ||||
| High fault | ||||
| Short circuit current | kA | 100 | ||
| Fuse rating | A | 200 | ||
| Fuse class | J | |||
| Standard fault | ||||
| Short circuit current | kA | 10 | ||
| Fuse rating | A | 250 | ||
| Fuse class | RK5 | |||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -50 | ||
| max | °C | 70 | ||
| Storage temperature | ||||
| min | °C | -60 | ||
| max | °C | +80 | ||
| Max altitude | m | 3000 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC000066 - Power contactor, AC switching | |||
| Caractéristique | Valeur |
|---|---|
| Type de tension d'actionnement (EF008242) | CA |
| Type de raccordement du circuit principal (EF006819) | Borne en cadre |
| Tension d'alimentation de courant nominal à CA 60 Hz (EF003979) | 48 V |
| Adapté à un montage sur rail (EF001126) | Non |
| Courant de fonctionnement nominal CA-4, 400 V (EF008495) | 45 A |
| Courant de fonctionnement nominal CA-1, 400 V (EF001393) | 140 A |
| Courant de fonctionnement nominal CA-3, 400 V (EF001392) | 95 A |
| Nombre de contacts auxiliaires à ouverture (EF001377) | 0 |
| Nombre de contacts auxiliaires à fermeture (EF001376) | 0 |
| Nombre de contacts ouverture en tant que contacts principaux (EF001375) | 0 |
| Nombre de contacts à fermeture en tant que contacts principaux (EF001374) | 4 |
| Puissance de fonctionnement nominale, CA-3, 400 V (EF001364) | 55 kW |
