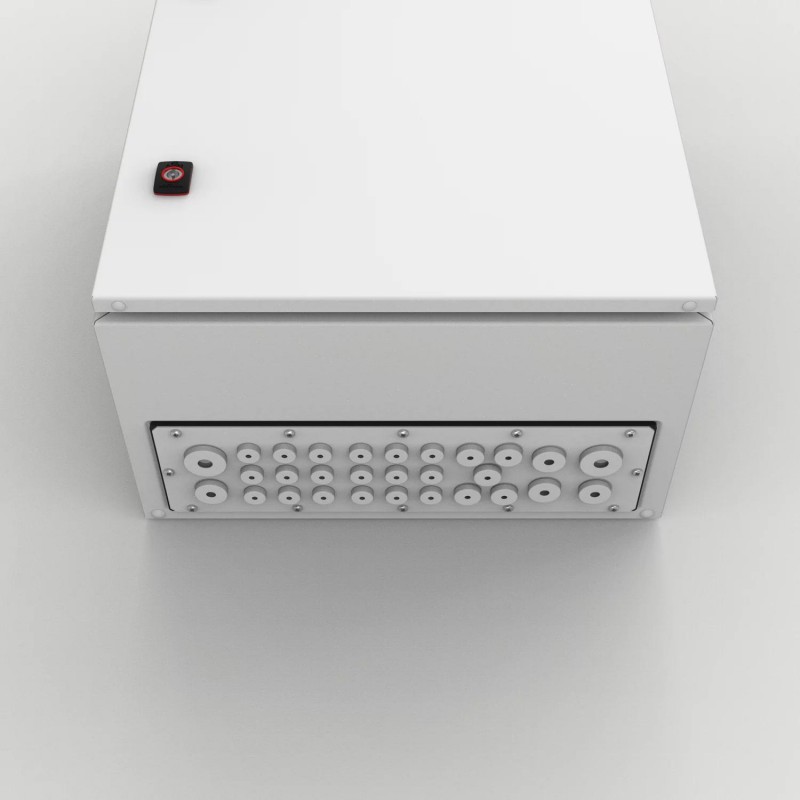

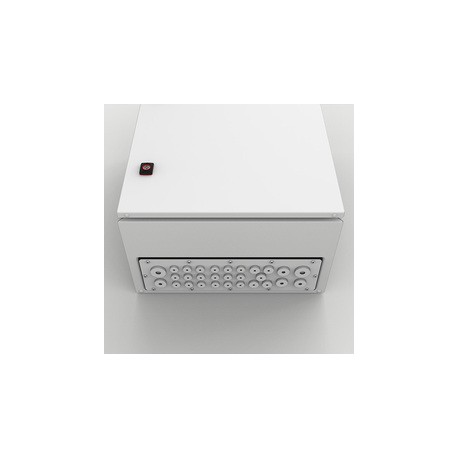

CED12 nVent HOFFMAN Passe-câbles dble protect M12 CED12

Description:

Le passe-câbles en caoutchouc est très simple à utiliser. La pose est plus économique puisqu'elle ne requiert aucun outil. La membrane push-out est un joint permanent jusqu'à la pose d'un câble ou d'un tuyau. Convient à une pose sur des parois de 0,5 à 4 mm d'épaisseur.

Matériau:

EPDM, sans halogène.

Resistance à la température:

-40ºC à +110ºC.

Finition:

RAL 7035.

Protection:

IP 67.

Feature:

Thermoplastic elastomer cable gland with a double layer sock surrounding the cable.

Advantage:

The protection degree is based on an exterior and interior layer that work independently.

Benefit:

The protection degree is maintained if the outside layer fails due to damage or external circumstances.

Comment:

The double layer sock is the optimal solution if the outside layer is exposed to external circumstances such as high pressure water. A potential disadvantage of the double layer however is that cables only pass through straight. A single layer sock is available (CES) to allow cable passing through with an angle but the protection degree might be at risk if this single layer fails.
