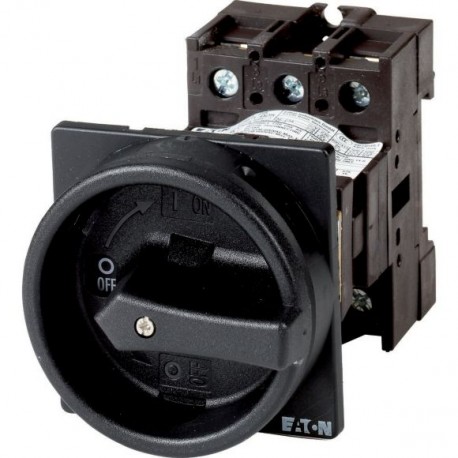

P1-32/V/SVB-SW/N 098198 Y7-98198 EATON ELECTRIC Interrupteur général, 3 pôles + N, 32 A, Fonction d'arrêt, v.. Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

P1-32/V/SVB-SW/N 098198 Y7-98198 EATON ELECTRIC Interrupteur général, 3 pôles + N, 32 A, Fonction d'arrêt, v..

P1-32/V/SVB-SW/N

098198

Y7-98198

EATON-MOELLER

Interrupteur général, 3 pôles + N, 32 A, Fonction d'arrêt, verrouillable en position 0, Encastrement / Montage encastré avec fixation arrière

General Switch 3 pôles + N 32 A Poignée de montage sur panneau inférieur

Eaton Moeller® series P1 Main switch, P1, 32 A, rear mounting, 3 pole + N, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position

Interrupteur principal, P1, Courant nominal sans interruption (Iu) : 32 A, Fonctions : Fonction STOP, Interverrouillable, Équipé de : Poignée rotative noire et bague de verrouillage, Méthode de montage : Montage arrière, Nombre de pôles : Quatre pôles, Dispositif de verrouillage : Verrouillable en position 0 (Off), Degré de protection : NEMA 12

Plus de détails


Appareillage industriel basse tension > Interrupteur-sectionneur

Sectionneurs et commutateurs à cames

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $140.60
Prix unitaire: $140.60
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
098198
Model Code
P1-32/V/SVB-SW/N
EAN
4015080981985
Product Length/Depth
90 mm
Product Height
70 mm
Product Width
63 mm
Product Weight
0.247 kg
Certifications
CSA-C22.2 No. 94
IEC/EN 60947
UL
CE
CSA-C22.2 No. 60947-4-1-14
CSA
UL File No.: E36332
VDE 0660
IEC/EN 60204
UL 60947-4-1
UL Category Control No.: NLRV
CSA Class No.: 3211-05
IEC/EN 60947-3
CSA File No.: 012528
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Features & Functions

Features
Version as main switch
Version as maintenance-/service switch
Fitted with:
Black rotary handle and locking ring
Functions
STOP function
Interlockable
Locking facility
Lockable in the 0 (Off) position
Number of poles
4

General

Accessories
Auxiliary contact fitted by user.
Degree of protection
NEMA 12
Degree of protection (front side)
IP65
Lifespan, mechanical
300,000 Operations
Mounting method
Rear mounting
Mounting position
As required
Operating frequency
1200 Operations/h
Overvoltage category
III
Pollution degree
3
Product Category
Main switch
Rated impulse withstand voltage (Uimp)
6000 V AC
Safe isolation
440 V AC, Between the contacts, According to EN 61140
Safety parameter (EN ISO 13849-1)
B10d values as per EN ISO 13849-1, table C.1
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms
Suitable for
Branch circuits, suitable as motor disconnect, (UL/CSA)

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C
Ambient operating temperature (enclosed) - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Terminal capacities

Terminal capacity
2 x (1 - 4) mm², flexible with ferrules to DIN 46228
2 x (1.5 - 6) mm², solid or stranded
1 x (1 - 4) mm², flexible with ferrules to DIN 46228
1 x (1.5 - 6) mm², solid or stranded
14 - 8 AWG, solid or flexible with ferrule
Screw size
M4, Terminal screw
Tightening torque
1.6 Nm, Screw terminals
14.1 lb-in, Screw terminals

Electrical rating

Rated breaking capacity at 220/230 V (cos phi to IEC 60947-3)
260 A
Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)
300 A
Rated breaking capacity at 500 V (cos phi to IEC 60947-3)
290 A
Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3)
250 A
Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V
26.4 A
Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V
26.4 A
Rated operational current (Ie) at AC-3, 500 V
23.4 A
Rated operational current (Ie) at AC-3, 660 V, 690 V
14.7 A
Rated operational current (Ie) at AC-21, 440 V
32 A
Rated operational current (Ie) at AC-23A, 230 V
32 A
Rated operational current (Ie) at AC-23A, 400 V, 415 V
32 A
Rated operational current (Ie) at AC-23A, 500 V
30 A
Rated operational current (Ie) at AC-23A, 690 V
19.8 A
Rated operational current (Ie) at DC-1, load-break switches l/r = 1 ms
32 A
Rated operational current (Ie) at DC-23A, 24 V
25 A
Rated operational current (Ie) at DC-23A, 48 V
25 A
Rated operational current (Ie) at DC-23A, 60 V
25 A
Rated operational current (Ie) at DC-23A, 120 V
12 A
Rated operational power at AC-3, 380/400 V, 50 Hz
13 kW
Rated operational power at AC-3, 415 V, 50 Hz
13 kW
Rated operational power at AC-3, 690 V, 50 Hz
15 kW
Rated operational power at AC-23A, 220/230 V, 50 Hz
7.5 kW
Rated operational power at AC-23A, 400 V, 50 Hz
15 kW
Rated operational power at AC-23A, 500 V, 50 Hz
18.5 kW
Rated operational power at AC-23A, 690 V, 50 Hz
15 kW
Rated operational voltage (Ue) at AC - max
690 V
Rated uninterrupted current (Iu)
32 A
Uninterrupted current
Rated uninterrupted current Iu is specified for max. cross-section.

Short-circuit rating

Rated conditional short-circuit current (Iq)
80 kA
Rated short-time withstand current (Icw)
0.64 kA
640 A, Contacts, 1 second
Short-circuit current rating (basic rating)
110A, max. Fuse, SCCR (UL/CSA)
5 kA, SCCR (UL/CSA)
Short-circuit current rating (high fault)
50 A, Class J, max. Fuse, SCCR (UL/CSA)
10 kA, SCCR (UL/CSA)
Short-circuit protection rating
50 A gG/gL, Fuse, Contacts

Switching capacity

Load rating
1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor)
1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor)
2 x Iₑ (with intermittent operation class 12, 25 % duty factor)
Number of contacts in series at DC-23A, 24 V
1
Number of contacts in series at DC-23A, 48 V
2
Number of contacts in series at DC-23A, 60 V
2
Number of contacts in series at DC-23A, 120 V
3
Switching capacity (main contacts, general use)
30 A, Rated uninterrupted current max. (UL/CSA)
Switching capacity (auxiliary contacts, general use)
10A, IU, (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
P600 (UL/CSA)
A600 (UL/CSA)
Rated making capacity up to 690 V (cos phi to IEC/EN 60947-3)
320 A
Voltage per contact pair in series
60 V

Motor rating

Assigned motor power at 115/120 V, 60 Hz, 1-phase
1 HP
Assigned motor power at 200/208 V, 60 Hz, 1-phase
2 HP
Assigned motor power at 200/208 V, 60 Hz, 3-phase
3 HP
Assigned motor power at 230/240 V, 60 Hz, 1-phase
3 HP
Assigned motor power at 230/240 V, 60 Hz, 3-phase
7.5 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
10 HP
Assigned motor power at 575/600 V, 60 Hz, 3-phase
15 HP

Contacts

Control circuit reliability
1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0

Actuator

Actuator color
Black
Actuator type
Door coupling rotary drive

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
1.8 W
Rated operational current for specified heat dissipation (In)
32 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
UV resistance only in connection with protective shield.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 098198 Appareillage industriel basse tension (EC000216)
Caractéristique Valeur
Finition interrupteur général (EF006981) true
Finition interrupteur de maintenance/réparation (EF006986) true
Finition interrupteur de sécurité (EF006985) false
Finition interrupteur de dispositif d'arrêt d'urgence (EF006959) false
Finition de l'inverseur (EF009408) false
Nombre de commutateurs (EF005586) 1
Tension de fonctionnement nominale max. Ue en CA (EF007355) 690 V
Tension de fonctionnement normale (EF001435) 690 V
Courant permanent nominal Iu (EF001389) 32 A
Courant permanent nominal, CA-21, 400 V (EF011777) 32 A
Courant permanent nominal , CA-21, 400 V (EF009165) 32 A
Puissance de fonctionnement nominale, CA-3, 400 V (EF001364) 13 kW
Courant nominal de courte durée admissible Icw (EF007050) 0.64 kA
Puissance de fonctionnement nominale, CA-23, 400 V (EF007027) 15 kW
Puissance de commutation à 400 V (EF009166) 15 kW
Intensité de court-circuit nominale conditionnelle Iq (EF001444) 80 kA
Nombre de pôles (EF001391) 4
Nombre de contacts auxiliaires à ouverture (EF001377) 0
Nombre de contacts auxiliaires à fermeture (EF001376) 0
Nombre de contacts auxiliaires à deux directions (EF003531) 0
Commande motorisée en option (EF007386) false
Commande motorisée intégrée (EF006697) false
Déclencheur voltmétrique en option (EF007491) false
Type de construction de l'appareil (EF008240) Built-in device fixed built-in technique
Adapté à une fixation frontale à 4 trous (EF007247) false
Adapté à une fixation frontale centrale (EF007248) false
Adapté à un montage en distributeur (EF007262) false
Adapté à un montage intermédiaire (EF007264) false
Couleur de l'élément d'actionnement (EF007167) Black
Finition de l'élément d'actionnement (EF006976) Door coupling rotary drive
Verrouillable (EF006281) true
Type de raccordement du circuit principal (EF006819) Screw connection
Avec un câblage préparé (EF016444) false
Classe de protection (IP), face avant (EF003118) IP65
Classe de protection (NEMA) (EF011959) 12
Largeur (EF000008) 63 mm
Hauteur (EF000040) 70 mm
Profondeur (EF000049) 90 mm
Largeur dans les unités de partition (EF002950)

Datasheet - PDF

▲
Titre: Taille: Type:
PDF EATON SAFE SWITCHING EN.pdf 935 Kbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
P1-32/V/SVB-SW/N Y7-98198 098198 ES_000652.pdf 1 Mbytes P1-32/V/SVB-SW/N Y7-98198 098198 ES_000652.pdf

Commentaires: (0) ▲

Aucun commentaire sur le produit encore.

Écrire commentaire
Écrire commentaire
Sous forme de peau
Score:
Nom:
Email:
Titre:
Commentaire:
Recommandez-vous acheter ce produit?
  Captcha
  Écrire commentaire

Derniers commentaires de nos clients

Toutes les évaluations que nous recevons des articles que nous proposons sont réels et vérifiés. Un petit geste, mais très précieux. Je vous remercie pour cette minute que vous passez à nous laisser votre avis et note sur les produits, car il nous aide à continuer à améliorer et à offrir encore plus la qualité de service.
