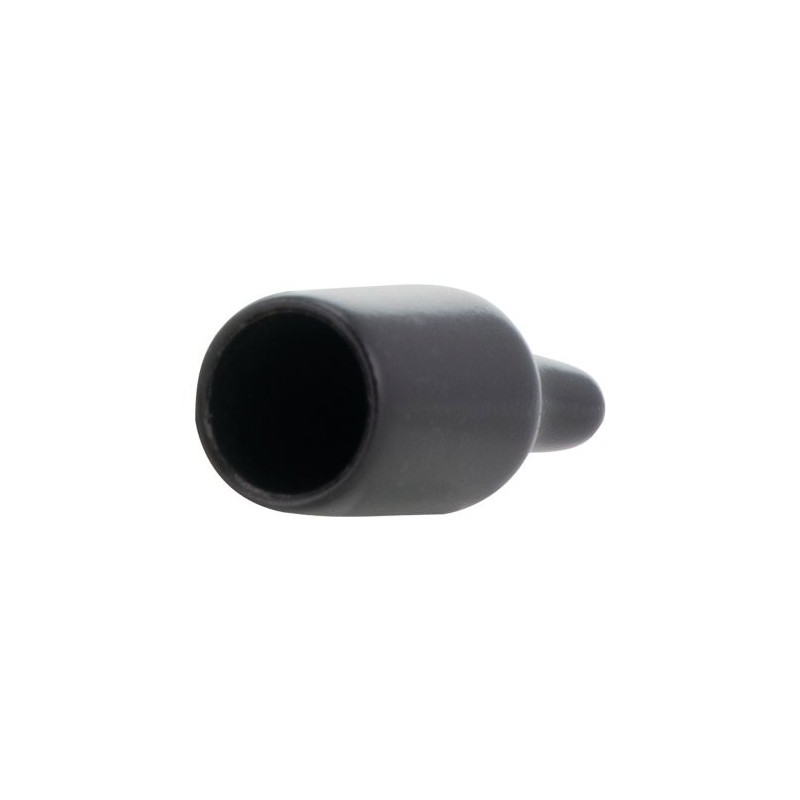

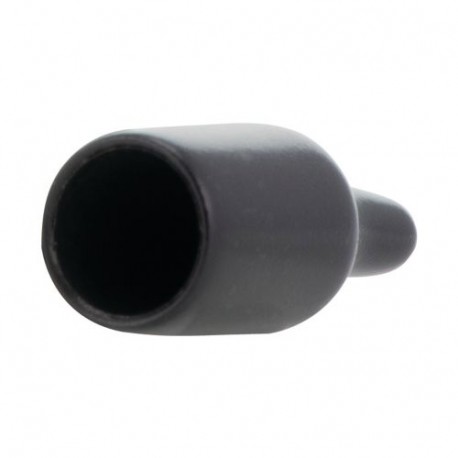

SWD4-PCAP-M 174753 Y7-174753 EATON ELECTRIC Capuchon de protection M12, mâle Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

SWD4-PCAP-M 174753 Y7-174753 EATON ELECTRIC Capuchon de protection M12, mâle

SWD4-PCAP-M

174753

Y7-174753

EATON-MOELLER

Capuchon de protection M12, mâle

SWD4-PCAP-M

Eaton SWD4 Cover cap M12 plug

Capuchon pour fiches M12 sur connecteur en T (IP67)

Plus de détails


Commande industrielle API > Accessoires pour commandes

Smartwire Darwin

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $8.58
Prix unitaire: $8.58
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton SWD4 Accessory Protection cap
Catalog Number
174753
Model Code
SWD4-PCAP-M
EAN
4015081712397
Product Length/Depth
35 mm
Product Height
10.8 mm
Product Width
10.8 mm
Product Weight
0.045 kg
Certifications
UL
CSA
Catalog Notes
not relevant

General

Degree of protection
IP67
IP67 (according to IEC/EN 60529, EN 50178, VBG 4)
Product category
SmartWire-DT accessories
Type

Ambient conditions, mechanical

Mounting position
As required

Climatic environmental conditions

Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
90 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
90 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Dry heat to IEC 60068-2-2
Environmental conditions
Condensation: permissible
Operating temperature - min
-25 °C
Operating temperature - max
90 °C

Electrical rating

Power loss
0 W

Communication

Connection to SmartWire-DT
Yes
Connection type
M12 socket, 5 pole

Input/Output

Number of insertion cycles
100

Design verification

Heat dissipation capacity Pdiss
0 W
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 174753 Commande industrielle API (EC002584)
Caractéristique Valeur
Type d'accessoire électrique (EF005722) Prise
Type d'accessoire mécanique (EF005994) Capot de protection
Accessoire (EF013236) Oui
Pièce détachée (EF013237) Non

Datasheet - PDF

▲
Titre: Taille: Type:
PDF EATON PRODUCT CATALOGUE SMART WIRE EN.pdf 26 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
SWD4-PCAP-M Y7-174753 174753 ES_174753.pdf 3 Mbytes SWD4-PCAP-M Y7-174753 174753 ES_174753.pdf
