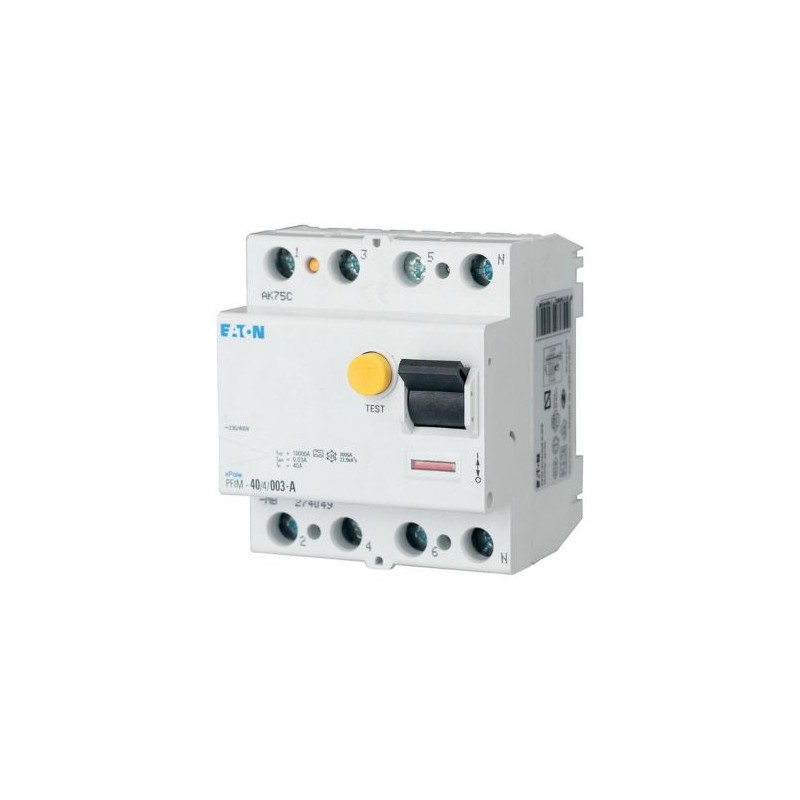

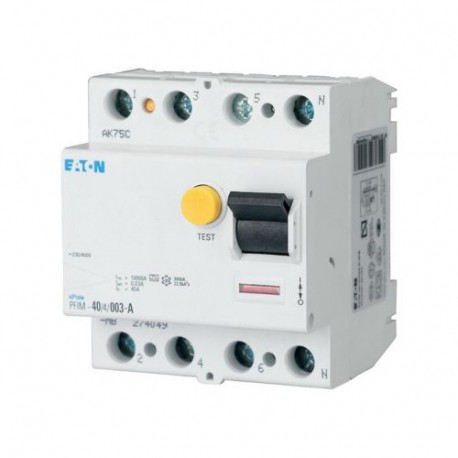

PFIM-80/4/03-MW 235420 Y7-235420 EATON ELECTRIC Interrupteur différentiel 80A 4p 300 mA type AC
PFIM-80/4/03-MW
235420
Y7-235420
EATON-MOELLER
Interrupteur différentiel; 80A; 4p; 300 mA; type AC
PFIM-80/4/03-MW
Eaton Moeller series xPole - PFIM Type AC, A, U, R RCCB. PFIM, 4 pole, In: 80 A, Icn: 10 kA, IΔN: 0.3 A, Type AC, AC current sensitive, Partly surge-proof 250 A, residential and commercial
Disjoncteur différentiel PFIM, 4 pôles, Courant assigné In : 80 A, Résistance nominale aux courts-circuits Icn : 10 kA, Courant de défaut nominal IΔN : 0,3 A, Type AC, Sensible au courant AC, Partiellement étanche aux surtensions 250 A, Appareillage pour applications résidentielles et commerciales
Appareils de protection des installations, des équipements et des personnes > Interrupteur différentiel
Appareillage Modulaire - Industriel
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Achetés habituellement ensemble
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton Moeller series xPole - PFIM Type AC, A, U, R RCCB
Catalog Number
235420
Model Code
PFIM-80/4/03-MW
EAN
4015082354206
Product Length/Depth
80 mm
Product Height
76 mm
Product Width
70 mm
Product Weight
0.377 kg
Compliances
RoHS conform
Certifications
IEC/EN 61008
Delivery program
Application
Number of poles
Four-pole
Tripping time
Non-delayed
Amperage Rating
80 A
Rated short-circuit strength
10 kA
Fault current rating
300 mA
Sensitivity type
AC current sensitive
Impulse withstand current
Partly surge-proof 250 A
Type
- PFIM
- Residual current circuit breakers
- Type AC
Technical data - electrical
Voltage rating
230 V AC / 400 V AC
Rated operational voltage (Ue) - max
400 V
Rated insulation voltage (Ui)
440 V
Rated impulse withstand voltage (Uimp)
4 kV
Rated fault current - min
0.3 A
Rated fault current - max
0.3 A
Frequency rating
50 Hz
Short-circuit rating
80 A (max. admissible back-up fuse)
Leakage current type
AC
Rated residual making and breaking capacity
800 A
Admissible back-up fuse overload - max
50 A gG/gL
Rated short-time withstand current (Icw)
10 kA
Surge current capacity
0.25 kA
Test circuit range
196 V AC - 456 V AC
Pollution degree
2
Lifespan, electrical
4000 operations
Technical data - mechanical
Frame
45 mm
Width in number of modular spacings
4
Built-in width (number of units)
70 mm (4 SU)
Built-in depth
70.5 mm
Mounting Method
DIN rail
Quick attachment with 2 latch positions for DIN-rail IEC/EN 60715
Quick attachment with 2 latch positions for DIN-rail IEC/EN 60715
Degree of protection
IP20, IP40 with suitable enclosure
IP20
IP20
Terminals (top and bottom)
Open mouthed/lift terminals
Terminal capacity (solid wire)
1.5 mm² - 35 mm²
Connectable conductor cross section (solid-core) - min
1.5 mm²
Connectable conductor cross section (solid-core) - max
35 mm²
Terminal capacity (stranded cable)
16 mm² (2x)
Connectable conductor cross section (multi-wired) - min
1.5 mm²
Connectable conductor cross section (multi-wired) - max
16 mm²
Terminal protection
Finger and hand touch safe, DGUV VS3, EN 50274
Busbar material thickness
0.8 mm - 2 mm
Lifespan, mechanical
20000 operations
Permitted storage and transport temperature - min
-35 °C
Permitted storage and transport temperature - max
60 °C
Climatic proofing
25-55 °C / 90-95% relative humidity according to IEC 60068-2
Design verification as per IEC/EN 61439 - technical data
Rated operational current for specified heat dissipation (In)
80 A
Heat dissipation per pole, current-dependent
0 W
Equipment heat dissipation, current-dependent
11.4 W
Static heat dissipation, non-current-dependent
0 W
Heat dissipation capacity
0 W
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional information
Accessories required
Z-HK 248432
Features
Additional equipment possible
Residual current circuit breaker
Residual current circuit breaker
Fitted with:
Interlocking device
Special features
- Maximum operating temperature is 60 °C: Starting at 40 °C, the max. permissible continuous current decreases by 1.2% for every 1 °C
- Tripping signal contact for subsequent installation Z-NHK 248434
Used with
Type AC
PFIM
Residual current circuit breakers
KLV-TC-4 276241 (Compact enclosure)
Z-FW/LP 248296 (Remote control and automatic switching device)
Z-RC/AK-4MU 101062 (sealing cover set)
PFIM
Residual current circuit breakers
KLV-TC-4 276241 (Compact enclosure)
Z-FW/LP 248296 (Remote control and automatic switching device)
Z-RC/AK-4MU 101062 (sealing cover set)
| Caractéristique | Valeur |
|---|---|
| Nombre de pôles (EF001391) | 4 |
| Tension assignée (EF000228) | 400 V |
| Courant nominal assigné (EF000227) | 80 A |
| Courant de défaut nominal (EF002358) | 0.3 A |
| Tension d'isolation assignée Ui (EF001366) | 440 V |
| Tension nominale de tenue aux chocs Uimp (EF011980) | 4 kV |
| Puissance dissipée (EF005387) | 11.4 W |
| Type de montage (EF000003) | Rail DIN |
| Type de courant différentiel (EF002560) | CA |
| Type sélectif (EF002561) | Non |
| Type retardé de courte durée (EF003604) | Non |
| Résistance de court-circuit (Icw) (EF002562) | 10 kA |
| Capacité de courant de choc (EF002564) | 0.25 kA |
| Type de tension (EF000187) | CA |
| Avec dispositif de verrouillage (EF007385) | Oui |
| Fréquence (EF005455) | 50 Hz |
| Dispositifs auxiliaires possibles (EF008148) | Oui |
| Classe de protection (IP) (EF005474) | IP20 |
| Largeur dans les unités de partition (EF002950) | 4 |
| Profondeur d'encastrement (EF000218) | 70.5 mm |
| Température ambiante en fonctionnement (EF007515) | -25 °C |
| Degré de pollution (EF002570) | 2 |
| Section de conducteur connectable multifilaire (EF007343) | 1.5 mm² |
| Section de conducteur connectable monofilaire (EF007337) | 1.5 mm² |
| Numéro RAL (équivalent) (EF003882) | 7035 |
| Antidéflagration (EF004663) | Non |
