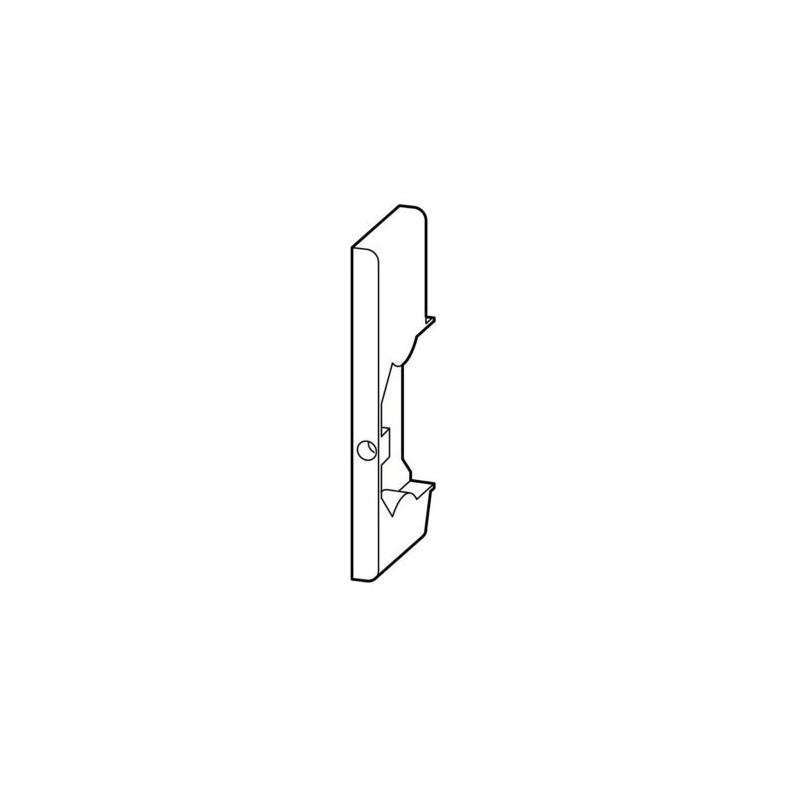

XN-ABPL 140129 Y7-140129 EATON ELECTRIC Plaque d'extrémité pour station XI/ON Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

XN-ABPL 140129 Y7-140129 EATON ELECTRIC Plaque d'extrémité pour station XI/ON

XN-ABPL

140129

Y7-140129

EATON-MOELLER

2

Plaque d'extrémité pour station XI/ON

XN-ABPL

Eaton XN Cover plate for XI/ON station

Pour couvrir une station XI/ON. Une plaque de recouvrement est fournie dans le cadre de l’équipement de passerelle fourni

Plus de détails


Commande industrielle API > Accessoires pour commandes

XION Remote Modules d'E / S

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $27.52
Prix unitaire: $13.76
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Les plus vendus

En savoir plus



Spécifications générales

Product Name
Eaton XN Accessory Cover plate
Catalog Number
140129
Model Code
XN-ABPL
EAN
7640130120327
Product Length/Depth
114.4 mm
Product Height
48.4 mm
Product Width
9.2 mm
Product Weight
0.026 kg
Certifications
UL/CSA certification not required

General

Degree of protection
IP20

Climatic environmental conditions

Ambient operating temperature - min
0 °C
Ambient operating temperature - max
55 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 140129 Commande industrielle API (EC002584)
Caractéristique Valeur
Type d'accessoire électrique (EF005722) Autre
Type d'accessoire mécanique (EF005994) Plaque d'extrémité
Accessoire (EF013236) Oui
Pièce détachée (EF013237) Non

Datasheet - PDF
