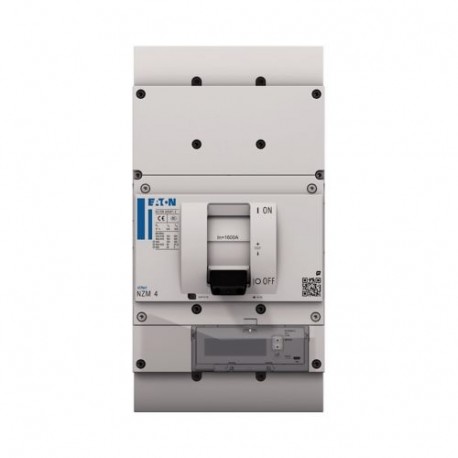

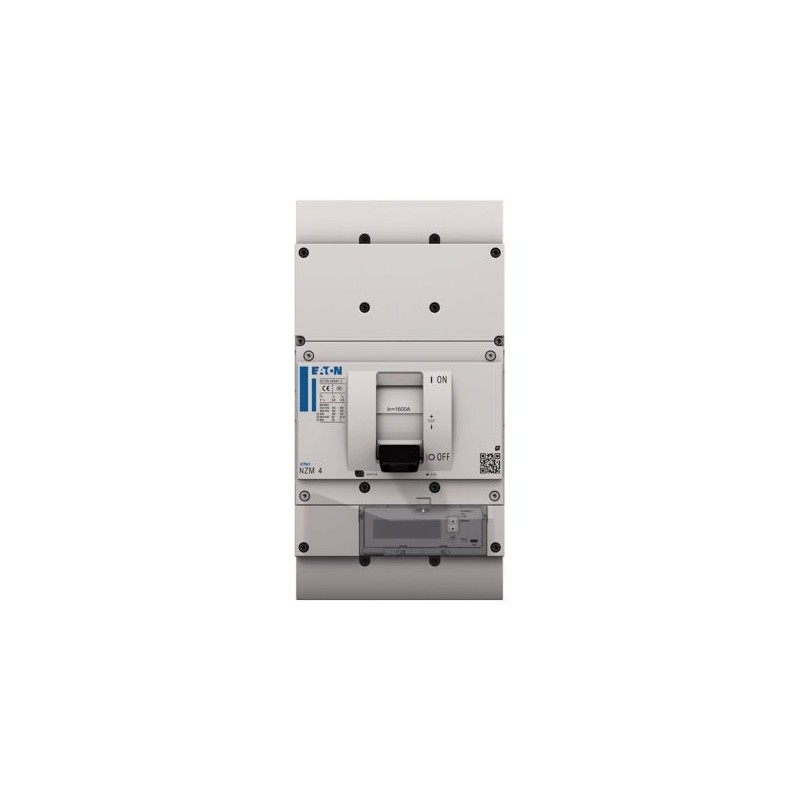

NZMN4-PMX1400 189683 Y7-189683 EATON ELECTRIC NZM4 PXR25 Automatic Int. Lecture de puissance de classe 1, 14..
NZMN4-PMX1400
189683
Y7-189683
EATON-MOELLER
NZM4 PXR25 Automatic Int. - Lecture de puissance de classe 1, 1400A, 3p, Borne à vis
NZMN4-PMX1400. NZM4 PXR25 circuit breaker - integrated energy measurement class 1, 1400A, 3p, Screw terminal
La gamme de disjoncteurs xEffect NZM...-PMX avec système de déclenchement électronique PXR (Power Expert Release) couvre les cas d’utilisation pour la protection du moteur avec seulement quatre tailles compactes et convient au marché IEC. La fonction de mesure de l’énergie intégrée fournit des courants, des tensions et de l’énergie active (kWh) avec une classe de précision 1 conformément à la norme CEI 61557-12. Testez la fonction et les paramètres via le port micro USB directement sur le commutateur. Les groupes de fonctions modulaires rendent toujours le montage flexible et peuvent être complétés par la gamme complète d’accessoires. Mesure de la valeur R.m.s. et mémoire thermique.
Appareillage industriel basse tension > Disjoncteur moteur
Commutateurs automatiques à boîtier moulé NZM
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Related products
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
| Product Name | Eaton Moeller series NZM molded case circuit breaker electronic |
| Catalog Number | 189683 |
| Model Code | NZMN4-PMX1400 |
| EAN | 4015081876303 |
| Product Length/Depth | 375 mm |
| Product Height | 170 mm |
| Product Width | 210 mm |
| Product Weight | 19 kg |
| Compliances | RoHS conform |
| Certifications | IEC IEC/EN 60947 |
Delivery program
| Application | Use in unearthed supply systems at 525 V |
| Type | Circuit breaker |
| Circuit breaker frame type | NZM4 |
| Number of poles | Three-pole |
| Amperage Rating | 1400 A |
| Release system | Electronic release |
| Special features |
|
| Fitted with: | Thermal protection |
Technical Data - Electrical
| Voltage rating | 690 V - 690 V |
| Rated insulation voltage (Ui) | 690 V |
| Rated impulse withstand voltage (Uimp) at auxiliary contacts | 6000 V |
| Rated impulse withstand voltage (Uimp) at main contacts | 8000 V |
| Rated short-time withstand current (t = 0.3 s) | 19.2 kA |
| Rated short-time withstand current (t = 1 s) | 19.2 kA |
| Amperage Rating | 1400 A |
| Instantaneous current setting (Ii) - min | 2 A |
| Instantaneous current setting (Ii) - max | 14 A |
| Overload current setting (Ir) - min | 560 A |
| Overload current setting (Ir) - max | 1400 A |
| Short-circuit release non-delayed setting - min | 2800 A |
| Short-circuit release non-delayed setting - max | 19600 A |
| Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz | 37 kA |
| Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz | 26 kA |
| Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz | 26 kA |
| Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz | 19 kA |
| Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz | 15 kA |
| Rated short-circuit making capacity Icm at 240 V, 50/60 Hz | 105 kA |
| Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz | 105 kA |
| Rated short-circuit making capacity Icm at 440 V, 50/60 Hz | 74 kA |
| Rated short-circuit making capacity Icm at 525 V, 50/60 Hz | 53 kA |
| Rated short-circuit making capacity Icm at 690 V, 50/60 Hz | 40 kA |
| Rated operating power at AC-3, 230 V | 450 kW |
| Rated operating power at AC-3, 400 V | 800 kW |
| Short-circuit total breaktime | < 25 ms (≦ 415 V); < 35 ms (> 415 V) |
| Electrical connection type of main circuit | Screw connection |
| Isolation | 500 V AC (between auxiliary contacts and main contacts) 300 V AC (between the auxiliary contacts) |
| Number of operations per hour - max | 60 |
| Handle type | Rocker lever |
| Utilization category | B (IEC/EN 60947-2) |
| Overvoltage category | III |
| Pollution degree | 3 |
| Lifespan, electrical | 1000 operations at 690 V AC-3 2000 operations at 690 V AC-1 2000 operations at 415 V AC-3 2000 operations at 400 V AC-3 3000 operations at 400 V AC-1 3000 operations at 415 V AC-1 |
| Direction of incoming supply | As required |
Technical Data - Mechanical
| Mounting Method | Built-in device fixed built-in technique Fixed |
| Mounting Method | Built-in device fixed built-in technique Fixed |
| Degree of protection | IP20 (basic degree of protection, in the operating controls area) IP20 |
| Degree of protection (IP), front side | IP66 (with door coupling rotary handle) IP40 (with insulating surround) |
| Degree of protection (terminations) | IP00 (terminations, phase isolator and strip terminal) IP10 (tunnel terminal) |
| Protection against direct contact | Finger and back-of-hand proof to VDE 0106 part 100 |
| Shock resistance | 15 g (half-sinusoidal shock 11 ms) |
| Climatic proofing | Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78 |
| Special features |
|
| Lifespan, mechanical | 10000 operations |
Technical Data - Mechanical - Terminals
| Standard terminals | Screw terminal |
| Optional terminals | Connection on rear. Strip terminal. Tunnel terminal |
| Terminal capacity (control cable) | 0.75 mm² - 2.5 mm² (1x) 0.75 mm² - 1.5 mm² (2x) |
| Terminal capacity (copper busbar) | Max. 50 mm x 10 mm (2x) at rear-side 1-hole module plate Min. 25 mm x 5 mm direct at switch rear-side connection Max. 80 mm x 10 mm (2x) at rear-side width extension Min. 25 mm x 5 mm at rear-side 1-hole module plate 50 mm x 10 mm (2x) at rear-side 2-hole module plate Min. 60 mm x 10 mm at rear-side width extension Max. 50 mm x 10 mm (2x) direct at switch rear-side connection M10 at rear-side screw connection |
| Terminal capacity (copper solid conductor/cable) | 120 mm² - 300 mm² (1x) at rear-side 1-hole module plate 95 mm² - 185 mm² (2x) at rear-side 2-hole module plate 95 mm² - 300 mm² (2x) at rear-side 1-hole module plate 35 mm² - 185 mm² (4x) at rear-side 2-hole module plate 50 mm² - 240 mm² (4x) at 4-hole tunnel terminal 300 mm² (4x) at rear-side width extension 95 mm² - 240 mm² (6x) at rear-side width extension |
| Terminal capacity (copper stranded conductor/cable) | 50 mm² - 185 mm² (4x) direct at switch rear-side connection 120 mm² - 185 mm² (1x) direct at switch rear-side connection |
| Terminal capacity (copper strip) | Min. 5 segments of 25 mm x 1 mm at rear-side connection (punched) 10 segments of 50 mm x 1 mm (2x) at 1-hole module plate 10 segments of 80 mm x 1 mm (2x) at rear-side width extension Max. 10 segments of 32 mm x 1 mm (2x) at flat conductor terminal Min. 6 segments of 16 mm x 0.8 mm at flat conductor terminal Max. 10 segments of 50 mm x 1 mm (2x) at rear-side connection (punched) |
Design verification as per IEC/EN 61439 - technical data
| Rated operational current for specified heat dissipation (In) | 1400 A |
| Equipment heat dissipation, current-dependent | 217.56 W |
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 70 °C |
| Ambient storage temperature - min | 40 °C |
| Ambient storage temperature - max | 70 °C |
Design verification as per IEC/EN 61439
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
Additional information
| Functions | Phase failure sensitive Motor protection |
| Caractéristique | Valeur |
|---|---|
| Réglage de courant du déclencheur de surcharge (EF002336) | 560 A |
| Plage de réglage du déclencheur de court-circuit non retardé (EF007131) | 2 A |
| Avec protection thermique (EF006233) | Oui |
| Sensible à une défaillance de phase (EF007400) | Oui |
| Technique de déclenchement (EF007007) | Électronique |
| Tension de fonctionnement normale (EF001435) | 690 V |
| Puissance de fonctionnement nominale, CA-3, 230 V (EF007025) | 450 kW |
| Puissance de fonctionnement nominale, CA-3, 400 V (EF001364) | 800 kW |
| Type de raccordement du circuit principal (EF006819) | Borne à vis |
| Finition de l'élément d'actionnement (EF006976) | Levier |
| Type de construction de l'appareil (EF008240) | Technique d'encastrement fixe pour appareil encastré |
| Avec commutateur auxiliaire intégré (EF001387) | Non |
| Avec déclencheur à sous-tension intégré (EF001390) | Non |
| Nombre de pôles (EF001391) | 3 |
| Courant de commutation de court-circuit limite nominal Icu à 400 V, CA (EF007049) | 26 kA |
| Classe de protection (IP) (EF005474) | IP20 |
| Hauteur (EF000040) | 170 mm |
| Largeur (EF000008) | 210 mm |
| Profondeur (EF000049) | 375 mm |
