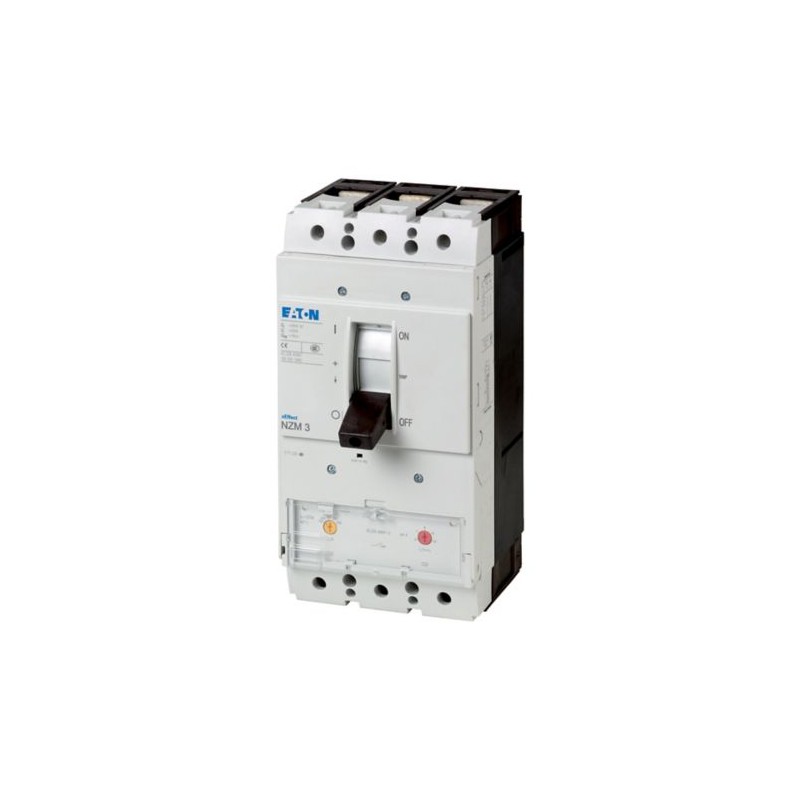

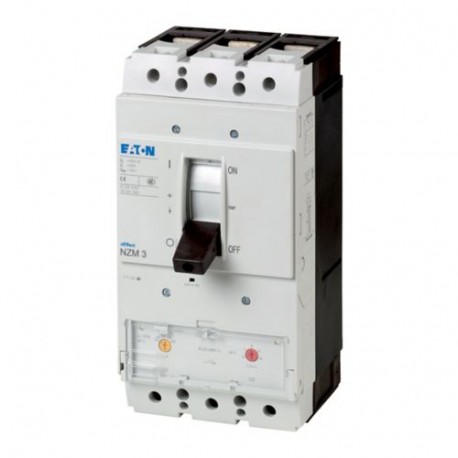

NZMC3-A400 109666 Y7-109666 EATON ELECTRIC NZM Auto Int., 3P, Iu : 400A
NZMC3-A400
109666
Y7-109666
EATON-MOELLER
NZM Auto Int., 3P, Iu : 400A
Int. automatique NZM, 3P, Ui: 400A
Eaton Moeller series NZM - Molded Case Circuit Breaker. Circuit-breaker, 3p, 400A, A400
Disjoncteur NZM3, 3 pôles, Capacité de commutation 400/415 V 50 Hz( Icu ) : 36 kA, Courant nominal = courant nominal ininterrompu Courant nominal = courant nominal ininterrompu( In = Iu) ) : 400 A, Type d’installation : Fixe, Raccord à vis, Norme/Homologation : IEC, Fonction de protection : Protection du système et des câbles
Appareillage industriel basse tension > Disjoncteur pour protection de transformateur, de générateur et d'installation
Commutateurs automatiques à boîtier moulé NZM
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Related products
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
| Product Name | Eaton Moeller series NZM molded case circuit breaker thermo-magnetic |
| Catalog Number | 109666 |
| Model Code | NZMC3-A400 |
| EAN | 4015081092529 |
| Product Length/Depth | 166 mm |
| Product Height | 275 mm |
| Product Width | 140 mm |
| Product Weight | 5.8 kg |
| Compliances | RoHS conform |
| Certifications | IEC IEC/EN 60947 |
Delivery program
| Application | Use in unearthed supply systems at 690 V |
| Type | Circuit breaker |
| Circuit breaker frame type | NZM3 |
| Number of poles | Three-pole |
| Amperage Rating | 400 A |
| Release system | Thermomagnetic release |
| Features | Motor drive optional Protection unit |
| Special features |
|
Technical Data - Electrical
| Voltage rating | 690 V - 690 V |
| Rated impulse withstand voltage (Uimp) at auxiliary contacts | 6000 V |
| Rated impulse withstand voltage (Uimp) at main contacts | 8000 V |
| Rated short-time withstand current (t = 0.3 s) | 3.3 kA |
| Rated short-time withstand current (t = 1 s) | 3.3 kA |
| Amperage Rating | 400 A |
| Instantaneous current setting (Ii) - min | 2400 A |
| Instantaneous current setting (Ii) - max | 4000 A |
| Overload current setting (Ir) - min | 320 A |
| Overload current setting (Ir) - max | 400 A |
| Short-circuit release non-delayed setting - min | 2400 A |
| Short-circuit release non-delayed setting - max | 4000 A |
| Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz | 55 kA |
| Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz | 36 kA |
| Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz | 22.5 kA |
| Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz | 9 kA |
| Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz | 4 kA |
| Rated short-circuit making capacity Icm at 240 V, 50/60 Hz | 121 kA |
| Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz | 76 kA |
| Rated short-circuit making capacity Icm at 440 V, 50/60 Hz | 63 kA |
| Rated short-circuit making capacity Icm at 525 V, 50/60 Hz | 24 kA |
| Rated short-circuit making capacity Icm at 690 V, 50/60 Hz | 14 kA |
| Short-circuit total breaktime | < 10 ms |
| Electrical connection type of main circuit | Screw connection |
| Isolation | 300 V AC (between the auxiliary contacts) 500 V AC (between auxiliary contacts and main contacts) |
| Number of operations per hour - max | 60 |
| Handle type | Rocker lever |
| Utilization category | A (IEC/EN 60947-2) |
| Overvoltage category | III |
| Pollution degree | 3 |
| Lifespan, electrical | 5000 operations at 400 V AC-1 3000 operations at 690 V AC-1 2000 operations at 690 V AC-3 5000 operations at 415 V AC-1 2000 operations at 415 V AC-3 2000 operations at 400 V AC-3 |
| Direction of incoming supply | As required |
Technical Data - Mechanical
| Mounting Method | Fixed Built-in device fixed built-in technique |
| Mounting Method | Fixed Built-in device fixed built-in technique |
| Degree of protection | IP20 (basic degree of protection, in the operating controls area) IP20 |
| Degree of protection (IP), front side | IP66 (with door coupling rotary handle) IP40 (with insulating surround) |
| Degree of protection (terminations) | IP00 (terminations, phase isolator and strip terminal) IP10 (tunnel terminal) |
| Protection against direct contact | Finger and back-of-hand proof to DIN EN 50274/VDE 0106 part 110 |
| Shock resistance | 20 g (half-sinusoidal shock 20 ms) |
| Number of auxiliary contacts (change-over contacts) | 0 |
| Number of auxiliary contacts (normally closed contacts) | 0 |
| Number of auxiliary contacts (normally open contacts) | 0 |
| Position of connection for main current circuit | Front side |
| Climatic proofing | Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78 |
| Special features |
|
| Lifespan, mechanical | 15000 operations |
Technical Data - Mechanical - Terminals
| Standard terminals | Screw terminal |
| Optional terminals | Box terminal. Connection on rear. Tunnel terminal |
| Terminal capacity (control cable) | 0.75 mm² - 1.5 mm² (2x) 0.75 mm² - 2.5 mm² (1x) |
| Terminal capacity (aluminum solid conductor/cable) | 16 mm² (1x) at tunnel terminal |
| Terminal capacity (aluminum stranded conductor/cable) | 50 mm² - 240 mm² (2x) at 2-hole tunnel terminal 50 mm² - 240 mm² (1x) at 2-hole tunnel terminal 25 mm² - 185 mm² (1x) at tunnel terminal |
| Terminal capacity (copper busbar) | Min. 20 mm x 5 mm direct at switch rear-side connection Max. 10 mm x 50 mm (2x) at rear-side width extension M10 at rear-side screw connection Max. 30 mm x 10 mm + 30 mm x 5 mm direct at switch rear-side connection |
| Terminal capacity (copper solid conductor/cable) | 16 mm² (2x) at box terminal 16 mm² (2x) direct at switch rear-side connection 16 mm² (1x) at tunnel terminal 300 mm² (2x) at rear-side width extension 16 mm² (1x) direct at switch rear-side connection |
| Terminal capacity (copper stranded conductor/cable) | 35 mm² - 240 mm² (1x) at box terminal 16 mm² - 185 mm² (1x) at 1-hole tunnel terminal 25 mm² - 120 mm² (2x) at box terminal 25 mm² - 240 mm² (1x) direct at switch rear-side connection 25 mm² - 240 mm² (2x) direct at switch rear-side connection |
| Terminal capacity (copper strip) | 10 segments of 50 mm x 1 mm (2x) at rear-side width extension Max. 10 segments of 32 mm x 1 mm + 5 segments of 32 mm x 1 mm at rear-side connection (punched) Min. 6 segments of 16 mm x 0.8 mm at rear-side connection (punched) Max. 10 segments of 24 mm x 1 mm + 5 segments of 24 mm x 1 mm Max. 8 segments of 24 mm x 1 mm (2x) at box terminal Min. 6 segments of 16 mm x 0.8 mm at box terminal |
Design verification as per IEC/EN 61439 - technical data
| Rated operational current for specified heat dissipation (In) | 400 A |
| Equipment heat dissipation, current-dependent | 72.48 W |
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 70 °C |
| Ambient storage temperature - min | 40 °C |
| Ambient storage temperature - max | 70 °C |
Design verification as per IEC/EN 61439
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
Additional information
| Functions | System and cable protection |
| Caractéristique | Valeur |
|---|---|
| Courant permanent nominal Iu (EF001389) | 400 A |
| Tension assignée (EF003977) | 690 V |
| Courant de commutation de court-circuit limite nominal Icu à 400 V, 50 Hz (EF007048) | 36 kA |
| Réglage de courant du déclencheur de surcharge (EF002336) | 320 A |
| Plage de réglage du déclencheur de court-circuit retardé de courte durée (EF007129) | 0 A |
| Plage de réglage du déclencheur de court-circuit non retardé (EF007131) | 2400 A |
| Type de construction de l'appareil (EF008240) | Technique d'encastrement fixe pour appareil encastré |
| Protection intégrée contre les mises à la terre accidentelles (EF007296) | Non |
| Type de raccordement du circuit principal (EF006819) | Borne à vis |
| Adapté à un montage de profilés chapeaux (EF007250) | Non |
| Montage de profilés chapeaux en option (EF008904) | Non |
| Nombre de contacts auxiliaires à ouverture (EF001377) | 0 |
| Nombre de contacts auxiliaires à fermeture (EF001376) | 0 |
| Nombre de contacts auxiliaires à deux directions (EF003531) | 0 |
| Relais de signalisation de déclenchement disponible (EF007006) | Non |
| Avec déclencheur à sous-tension intégré (EF001390) | Non |
| Nombre de pôles (EF001391) | 3 |
| Position du raccordement de circuit principal (EF006671) | Avant |
| Finition de l'élément d'actionnement (EF006976) | Levier |
| Appareil complet avec unité de protection (EF008906) | Oui |
| Commande motorisée intégrée (EF006697) | Non |
| Commande motorisée en option (EF007386) | Oui |
| Classe de protection (IP) (EF005474) | IP20 |
