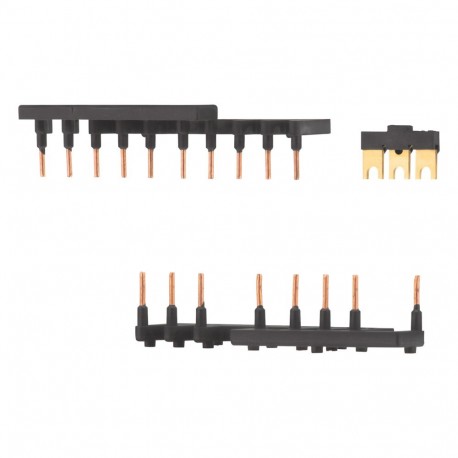

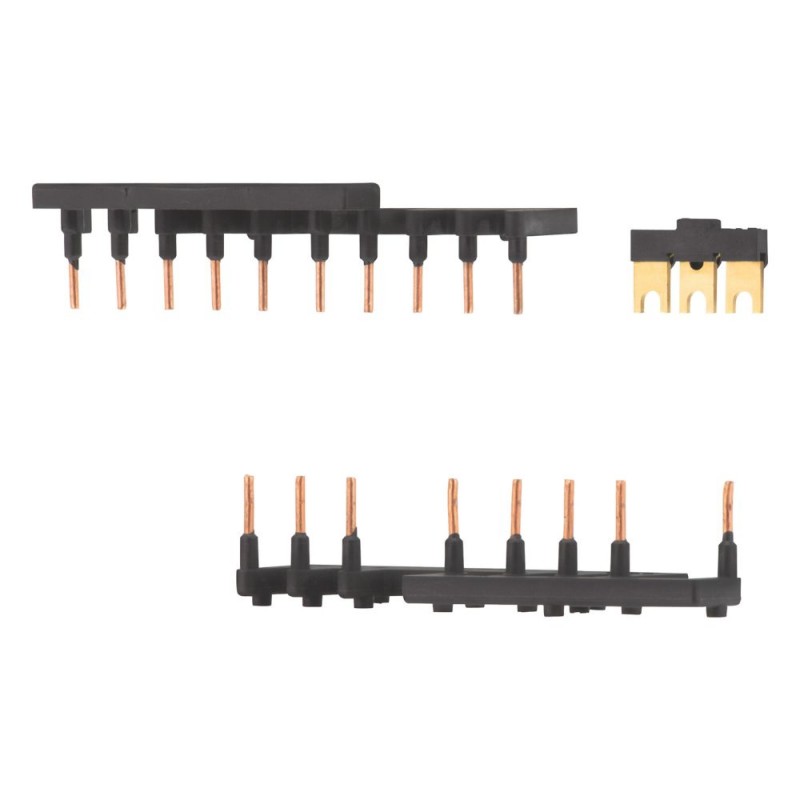

MVS-SB-EM 220213 Y7-220213 EATON ELECTRIC Secondaire terminal kit de fil, étoile-triangle, pour DILEM Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

MVS-SB-EM 220213 Y7-220213 EATON ELECTRIC Secondaire terminal kit de fil, étoile-triangle, pour DILEM

MVS-SB-EM

220213

Y7-220213

EATON-MOELLER

Secondaire terminal kit de fil, étoile-triangle, pour DILEM

MVS-SB-EM

Eaton Moeller® series MVS Secondary terminal wire kit, star-delta, for DILEM

Kit de câblage étoile-triangle pour les tailles de cadre DILEE-DILE

Plus de détails


Appareillage industriel basse tension > Accessoires pour connectique basse tension

Contacteurs jusqu'à 170A

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $21.15
Prix unitaire: $21.15
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Related products

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series MVS Accessory Wiring kit
Catalog Number
220213
Model Code
MVS-SB-EM
EAN
4015082202132
Product Length/Depth
84 mm
Product Height
28 mm
Product Width
21 mm
Product Weight
0.029 kg
Certifications
CSA-C22.2 No. 14-05
IEC/EN 60947-4-1
CSA Class No.: 3211-06
CSA
UL
CSA File No.: 012528
UL File No.: E36332
CE
UL 508
UL Category Control No.: NLRV7
Catalog Notes
The following control cables are integrated in addition to electrical interlock:

Features & Functions

Fitted with:
Control cables: Q13: A1 - Q15: 21
Control cables: Q13: 21 - Q15: A1
Control cables: Q13: A2 - Q15: A2
Functions
For star-delta combination incl. star-point bridge

General

Accessory/spare part type
Connecting bridge

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
2.1 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.7 W
Rated operational current for specified heat dissipation (In)
22 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 220213 Appareillage industriel basse tension (EC002498)
Caractéristique Valeur
Type d'accessoire (EF000215) Pont de liaison
Accessoire (EF013236) Oui
Pièce détachée (EF013237) Non

Datasheet - PDF

▲
Titre: Taille: Type:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
MVS-SB-EM Y7-220213 220213 ES_220209.pdf 957 Kbytes MVS-SB-EM Y7-220213 220213 ES_220209.pdf
