DILM12-XDSB0/3 240084 Y7-240084 EATON ELECTRIC Jeu de barres triphasé pour 3 DILM7-12 Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

DILM12-XDSB0/3 240084 Y7-240084 EATON ELECTRIC Jeu de barres triphasé pour 3 DILM7-12

DILM12-XDSB0/3

240084

Y7-240084

EATON-MOELLER

5

Jeu de barres triphasé pour 3 DILM7-12

DILM12-XDSB0/3

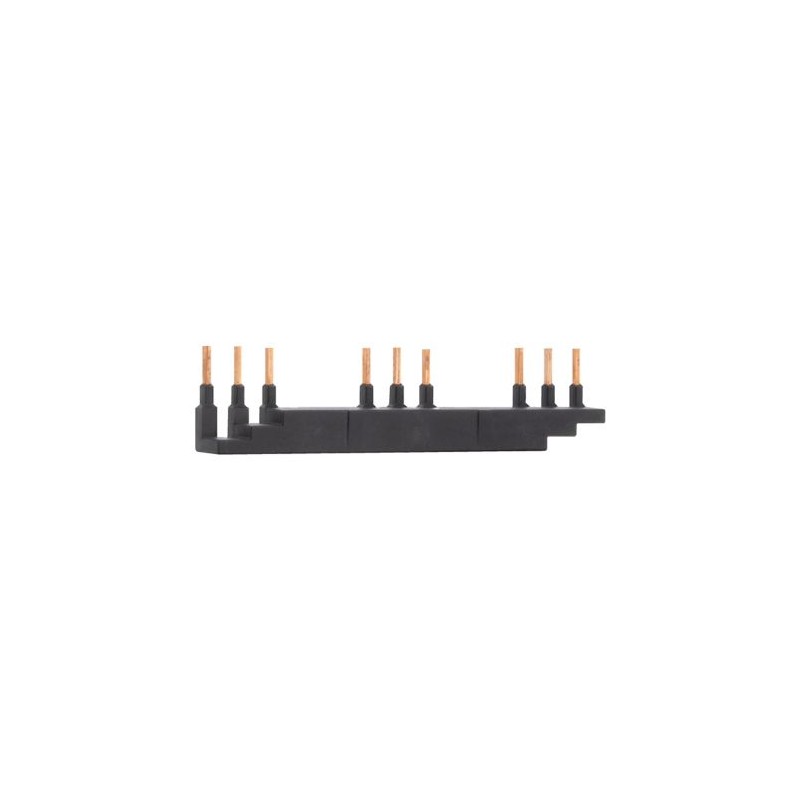

Eaton Moeller® series DILM Three-phase busbar link for 3 DILM7-12

Câblage rapide à l’aide de liaisons de jeux de barres triphasés

Plus de détails


Appareillage industriel basse tension > Peigne de raccordement

Contacteurs jusqu'à 170A

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $121.84
Prix unitaire: $24.37
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Les plus vendus

En savoir plus



Spécifications générales

Product Name
Eaton Moeller® series DILM three-phase busbar link
Catalog Number
240084
Model Code
DILM12-XDSB0/3
EAN
4015082400842
Product Length/Depth
112 mm
Product Height
12 mm
Product Width
25 mm
Product Weight
0.037 kg
Certifications
CE
CSA Class No.: 2411-03
UL Category Control No.: NLRV
UL 508
UL File No.: E36332
CSA-C22.2 No. 14-05
CSA
UL
CSA File No.: 012528
IEC/EN 60947-4-1

Features & Functions

Features
Insulated
Functions
Can be extended by rotating installation (∑ Iu ≤ 35 A)
Number of poles
Three-pole
Number of phases
3
Color
Black
Electric connection type
Pin

General

Product category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Electrical Rating

Rated operational voltage (Ue) - max
690 V
Rated uninterrupted current (Iu)
35 A

Short-circuit rating

Rated conditional short-circuit current (Iq)
0 kA
Rated short-time withstand current (Icw)
0 kA

Design verification

Equipment heat dissipation, current-dependent Pvid
1.8 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.6 W
Rated operational current for specified heat dissipation (In)
35 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 240084 Appareillage industriel basse tension (EC000215)
Caractéristique Valeur
Nombre de phases (EF000351) 3
Nombre de pôles (EF001391) 3
Adapté au nombre d'appareils (EF007241) 3
Dimension du pas (EF007504) 45 mm
Section transversale (EF000649) 0 mm²
Longueur (EF001438) 112 mm
Découpable à taille voulue (EF015250) Non
Largeur dans les unités de partition (EF002950) 6.2
Courant permanent nominal Iu (EF001389) 35 A
Finition du raccordement électrique (EF003961) Broche
Isolé (EF000019) Oui
Tension nominale de tenue aux chocs (EF002993) 0 kV
Intensité de court-circuit nominale conditionnelle Iq (EF001444) 0 kA
Tension de fonctionnement nominale max. Ue (EF007357) 690 V
Courant nominal de courte durée admissible Icw (EF007050) 0 kA
Adapté à des appareils équipés d'un conducteur N (EF007218) Non
Adapté à des appareils équipés d'un commutateur auxiliaire (EF007217) Non
Couleur (EF000007) Noir
