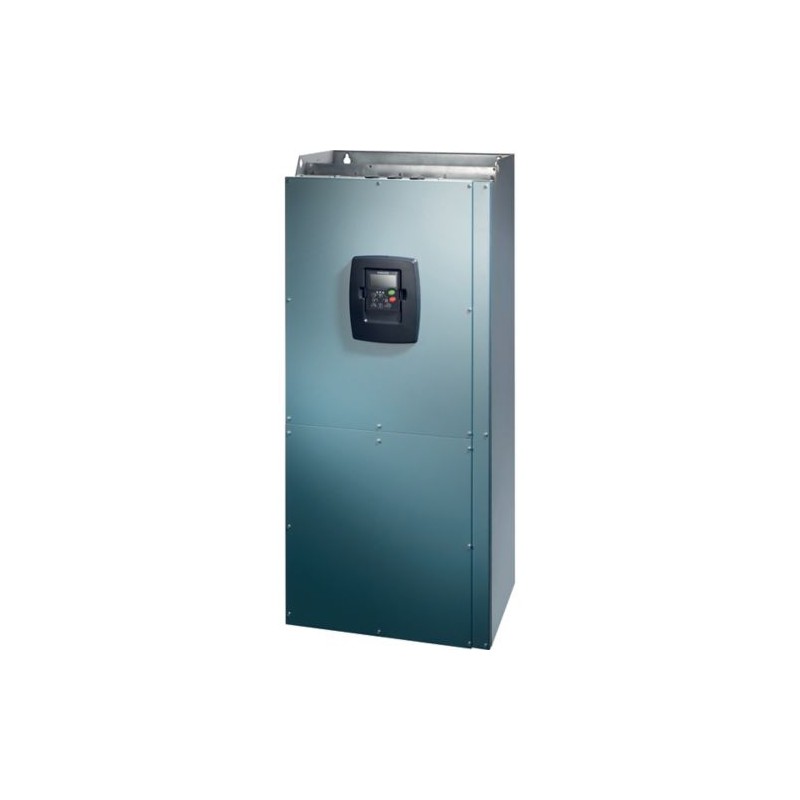

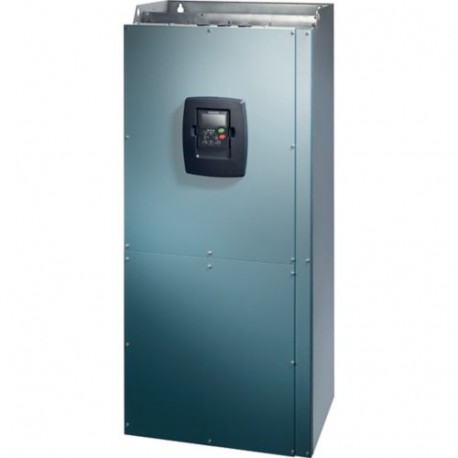

SVX100A2-5A4N1 125788 EATON ELECTRIC Convertisseur de fréquence, 600 V AC, triphasé, 100 A, IP54, Filtre d'a.. Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

SVX100A2-5A4N1 125788 EATON ELECTRIC Convertisseur de fréquence, 600 V AC, triphasé, 100 A, IP54, Filtre d'a..

SVX100A2-5A4N1

125788

EATON-MOELLER

Convertisseur de fréquence, 600 V AC, triphasé, 100 A, IP54, Filtre d'antiparasitage, Affichage OLED, Inductance du circuit intermédiaire, FR9

Convertisseur de fréquence ; 125 A ; 110 kW ; IP54 ; 690 V CA ; Filtre CEM de classe C3

Convertisseur de fréquence, 600 V AC, triphasé, 100 A, IP54, Filtre d'antiparasitage, Affichage OLED, FR9

Plus de détails


Convertisseurs de fréquence Eaton

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

* Cet article est peut-être obsolète. Si vous êtes intéressé, demandez-nous un devis et nous vous dirons s'il y a des unités disponibles. S'il n'y en a plus, un de nos techniciens recherchera une alternative livrable présentant des caractéristiques similaires.

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton SVX Variable frequency drive
Catalog Number
125788
Model Code
SVX100A2-5A4N1
EAN
4015081233984
Product Length/Depth
1150 mm
Product Height
362 mm
Product Width
480 mm
Product Weight
58 kg
Certifications
IEC/EN 61800-3
RCM
Safety: EN 61800-5-1: 2003
CSA Class No.: 3211-06
DNV
RoHS, ISO 9001
IEC/EN61800-5
UL 508C
CSA-C22.2 No. 14
Certified by UL for use in Canada
IEC/EN61800-3
Specification for general requirements: IEC/EN 61800-2
UL
CE
CUL
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
UL File No.: E134360
UL report applies to both US and Canada

General

Communication interface
PROFIBUS-DP
BACnet/IP, optional
DeviceNet, optional
CANopen®, optional
LonWorks, optional
Modbus-TCP, optional
BACnet MS/TP, optional
EtherCAT, optional
Ethernet IP, optional
Modbus-RTU, optional
PROFINET, optional
Connection to SmartWire-DT
No
Degree of protection
IP54
NEMA Other
Electromagnetic compatibility
1st and 2nd environments (according to EN 61800-3)
Fitted with:
OLED display
Radio interference suppression filter
DC link choke
IGBT inverter
Internal DC link
Frame size
FR9
Mounting position
Vertical
Product Category
Variable frequency drives
Protection
Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)
Radio interference class
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Suitable for
Branch circuits, (UL/CSA)

Climatic environmental conditions

Altitude
Max. 3000 m
Above 1000 m with 1 % performance reduction per 100 m
Max. 1000 m
Ambient operating temperature - min
-10 °C
Ambient operating temperature - max
50 °C
Ambient operating temperature at 150% overload - min
-10 °C
Ambient operating temperature at 150% overload - max
50 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
< 95 % relative humidity, no condensation, no corrosion, no dripping water

Main circuit

Mains voltage - min
525 V
Mains voltage - max
690 V
Operating mode
U/f control
Sensorless vector control (SLV)
Output frequency - min
0 Hz
Output frequency - max
320 Hz
Output voltage (U2)
600 V AC, 3-phase
690 V AC, 3-phase
Rated control supply voltage
10 V DC (Us, max. 10 mA)
Rated frequency - min
45 Hz
Rated frequency - max
66 Hz
Rated operational current (Ie) at 110% overload
125 A
Rated operational current (Ie) at 150% overload
100 A
Rated operational power at 690 V, 50 Hz
90 kW
Rated operational power at 690 V, 50 Hz, 110% overload
110 kW
Rated operational voltage
600 V AC, 3-phase
690 V AC, 3-phase
Resolution
0.01 Hz (Frequency resolution, setpoint value)
Supply frequency
50/60 Hz
Switching frequency
1.5 kHz, 1 - 6 kHz adjustable, fPWM, Power section, Main circuit
System configuration type
AC supply systems with earthed center point
Voltage rating - max
690 VAC

Motor rating

Assigned motor current IM at 690 V, 50 Hz, 110% overload
114 A
Assigned motor current IM at 690 V, 50 Hz, 150% overload
93 A
Assigned motor current IM at 690 V, 60 Hz, 110% overload
109 A
Assigned motor current IM at 690 V, 60 Hz, 150% overload
86 A
Assigned motor power at 690 V, 60 Hz
100 HP
Assigned motor power at 690 V, 60 Hz, 110% overload
125 HP

Control circuit

Number of inputs (analog)
2 (parameterizable, 0 - 10 V DC, 0/4 - 20 mA)
Number of inputs (digital)
6 (parameterizable, max. 30 V DC)
Number of outputs (analog)
1
Number of outputs (digital)
1 (parameterizable, 48 V DC/50 mA)
Number of relay outputs
2 (parameterizable, N/O, 8 A (24 V DC) / 8 A (250 V AC) / 0,4 A (125 V DC))
Rated control voltage (Uc)
24 V DC (external, max. 250 mA)

Design verification

Equipment heat dissipation, current-dependent Pvid
2250 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
100 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
