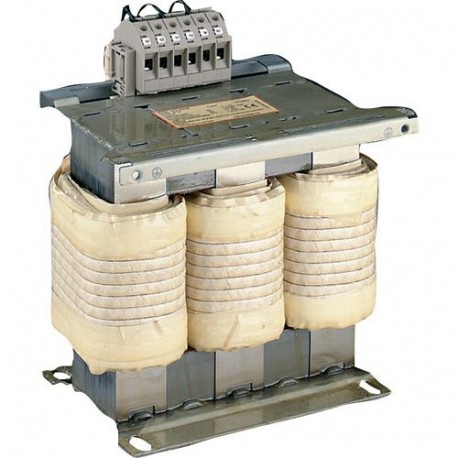

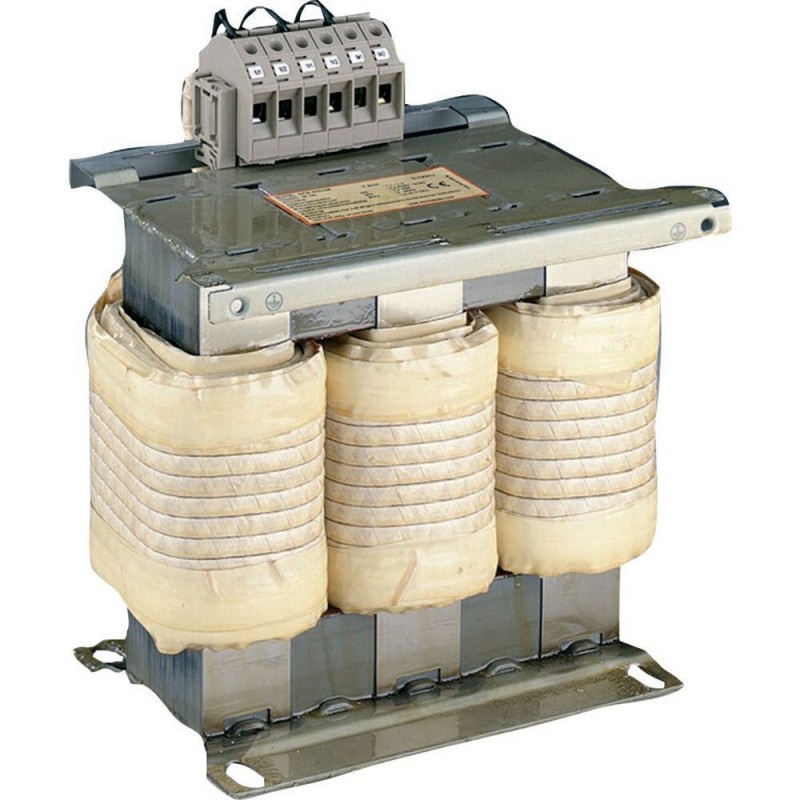

DX-SIN3-032 271594 Y7-271594 EATON ELECTRIC Filtre sinus, 3p, 400VAC, 32A, pour FU Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

DX-SIN3-032 271594 Y7-271594 EATON ELECTRIC Filtre sinus, 3p, 400VAC, 32A, pour FU

DX-SIN3-032

271594

Y7-271594

EATON-MOELLER

Filtre sinus, 3p, 400VAC, 32A, pour FU

DX-SIN3-032

Eaton DX Sine filter, three-phase, 500 V + 0% (50/60 Hz) V AC, 32 A, For use with: DA1, DL1, DG1, SVX, SPX

Filtre sinusoïdal, Description : triphasé, Courant nominal de fonctionnement : Ie= 32 A, Pour une utilisation avec : DA1, DL1, DG1, SVX, SPX

Plus de détails


Appareillage industriel basse tension > Accessoires pour convertisseur de fréquence

Convertisseurs de fréquence Eaton

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $1,367.50
Prix unitaire: $1,367.50
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton DX Sine filter
Catalog Number
271594
Model Code
DX-SIN3-032
EAN
4015082715946
Product Length/Depth
240 mm
Product Height
280 mm
Product Width
200 mm
Product Weight
19.7 kg
Certifications
UL 508C
IEC/EN61800-5
UL
CE
Certified by UL for use in Canada
UL File No.: E300273
CSA-C22.2 No. 14
IEC/EN61800-3
UL Category Control No.: NMTR2, NMTR8
UL report applies to both US and Canada

Spécifications du produit

Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
PE stud
Terminations
Used with
DC1
DA1
DM1
DG1
Accessory/spare part type
Filter
Altitude
Max. 1000 m
Max. 4000 m with current reduction
Ambient operating temperature - max
45 °C
Ambient operating temperature - min
-10 °C
Rated frequency - max
120 Hz
Rated frequency - min
0 Hz
Rated inductance
2 mH
Ambient storage temperature - max
85 °C
Ambient storage temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
100 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Number of phases
3
Mounting position
Free surrounding areas < 100 mm
Standing vertically
Suspended horizontally
Duty factor
100 %
Degree of protection
IP00
Terminal capacity
20 - 6 AWG
Insulation class
F
Rated operational voltage (Ue) - max
400 V
Rated operational current (Ie) - max
32 A
Operating temperature details
-10 - 45 °C (up to 70 °C with current derating)
Rated operational current for specified heat dissipation (In)
32 A
Static heat dissipation, non-current-dependent Pvs
0 W
Voltage rating - max
480 V
Voltage sag Uk
8.7 %
Permissible connection voltage
Max. 500 V AC (5 - 150 Hz)
Suitable for
Branch circuits, (UL/CSA)
Tightening torque
1.5 Nm, Screw terminals

ETIM for 271594 Appareillage industriel basse tension (EC002025)
Caractéristique Valeur
Type d'accessoire (EF000215) Filtre
Accessoire (EF013236) Oui
Pièce détachée (EF013237) Non

Datasheet - PDF

▲
Titre: Taille: Type:
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 37 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DX-SIN3-032 Y7-271594 271594 FR_730-32034-00P.pdf 4 Mbytes DX-SIN3-032 Y7-271594 271594 FR_730-32034-00P.pdf
