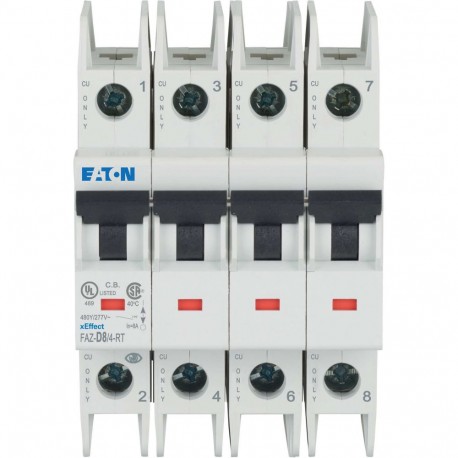

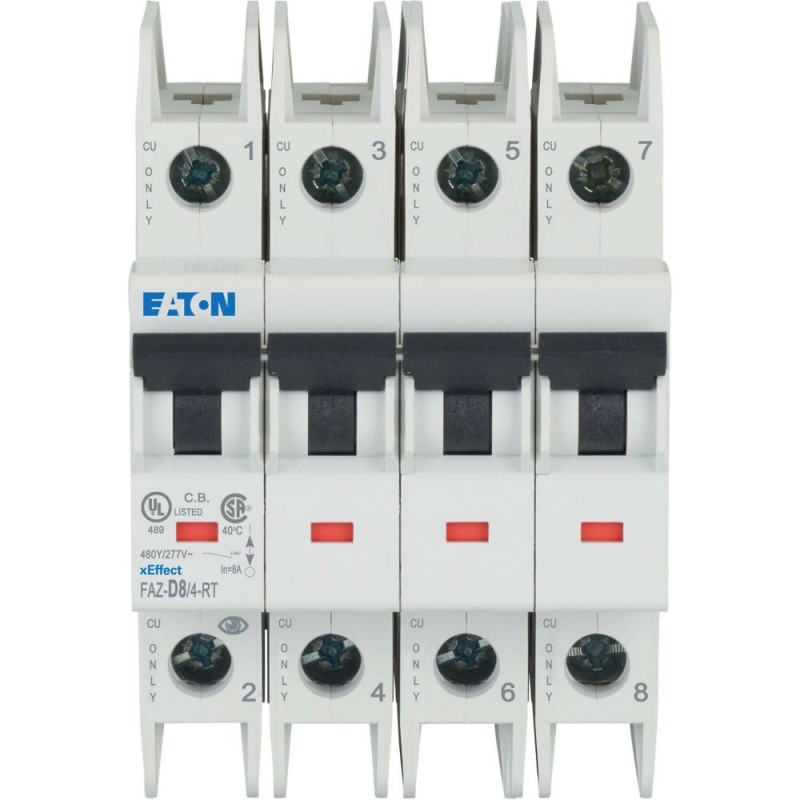

FAZ-D8/4-RT 190892 Y7-190892 EATON ELECTRIC Disjoncteur intérieur FAZ-RT, 8A, 4P, D courbe
FAZ-D8/4-RT
190892
Y7-190892
EATON-MOELLER
Disjoncteur intérieur FAZ-RT, 8A, 4P, D courbe
Int. disjoncteur FAZ-RT, 8A, 4P, D courbe
Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB. Miniature circuit breaker (MCB), 8 A, 4p, characteristic: D, ring tongue
Disjoncteur miniature de haute qualité, conforme aux normes UL 489, CSA C22.2 n° 5 et CEI 60947-2, pour les applications autorisées pour UL 1077 ou CSA C22.2 n° 235, interrupteur auxiliaire et déclencheurs de tension adaptés à une installation ultérieure, avec vis de raccordement amovibles pour une utilisation avec cosse de câble annulaire, indicateur de position de contact rouge - vert, montage facile sur rail DIN
Appareils de protection des installations, des équipements et des personnes > Disjoncteur
Appareillage Modulaire - Industriel
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB
Catalog Number
190892
Model Code
FAZ-D8/4-RT
EAN
4015081905393
Product Length/Depth
105 mm
Product Height
75.5 mm
Product Width
70.8 mm
Product Weight
0.489 kg
Compliances
RoHS conform
Certifications
UL 489
IEC 60947-2
Specially designed for North America, suitable as BCPD
CSA-C22.2 No. 5-09
IEC/EN 60947-2
North America (UL listed, CSA certified)
CE marking
UL (File No. E235139)
CSA (File No. 204453)
CSA (Class No. 1432-01)
UL (Category Control Number DIVQ)
UL 489, CSA C22.2 No. 5
EN45545-2
IEC 61373
IEC 60947-2
Specially designed for North America, suitable as BCPD
CSA-C22.2 No. 5-09
IEC/EN 60947-2
North America (UL listed, CSA certified)
CE marking
UL (File No. E235139)
CSA (File No. 204453)
CSA (Class No. 1432-01)
UL (Category Control Number DIVQ)
UL 489, CSA C22.2 No. 5
EN45545-2
IEC 61373
Delivery program
Application
Number of poles
Four-pole
Number of poles (total)
4
Number of poles (protected)
4
Tripping characteristic
D
Release characteristic
D
Amperage Rating
8 A
Type
- FAZ-RT
- Miniature circuit breaker
Technical data - electrical
Voltage type
AC
Voltage rating
277 V AC / 480 V AC
Voltage rating at DC
60 V DC
Voltage rating (IEC/EN 60947-2)
415 V
Voltage rating (UL)
480Y/277 V
Rated operational voltage (Ue) - max
240 V
Rated insulation voltage (Ui)
440 V
Rated impulse withstand voltage (Uimp)
4 kV
Frequency rating - min
50 Hz
Frequency rating - max
60 Hz
Rated switching capacity (IEC/EN 60947-2)
15 kA
Operational switching capacity
7.5 kA
Rated short-circuit breaking capacity (EN 60898) at 230 V
10 kA
Rated short-circuit breaking capacity (EN 60898) at 400 V
15 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 230 V
10 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 400 V
14 kA
Admissible back-up fuse - max
125 A gL/gG
Selectivity class
3
Overvoltage category
III
Pollution degree
2
Lifespan, electrical
min. 6000 operations (UL)
min. 1500 operations
min. 1500 operations
Direction of incoming supply
As required
Technical data - mechanical
Frame
45 mm
Enclosure width
105 mm
Width in number of modular spacings
4
Built-in depth
60 mm
Mounting width per pole
17.7 mm
Mounting width
17.7 mm
Mounting Method
Top-hat rail IEC/EN 60715
Mounting position
As required
Degree of protection
IP20 (IEC)
IP40 (when fitted)
UL/CSA Type: -
IP20
IP40 (when fitted)
UL/CSA Type: -
IP20
Terminals (top and bottom)
Lift terminal / ring-tongue
Connectable conductor cross section (solid-core) - min
1 mm²
Connectable conductor cross section (solid-core) - max
25 mm²
Connectable conductor cross section (multi-wired) - min
1 mm²
Connectable conductor cross section (multi-wired) - max
25 mm²
Terminal capacity of screw terminals for main cable
10 mm² (2x)
Terminal capacity (control cable)
25 mm² (1x)
Terminal protection
Finger and hand touch safe, DGUV VS3, EN 50274
Contact position indicator color
Red / green
Tightening torque
Max. 2.4 Nm
UL: 2.4 Nm (21 lb-in) for AWG 18 - AWG 12
UL: 2.8 Nm (25 lb-in) for AWG 10 - AWG 8
UL: 4 Nm (36 lb-in) for AWG 6
UL: 2.4 Nm (21 lb-in) for AWG 18 - AWG 12
UL: 2.8 Nm (25 lb-in) for AWG 10 - AWG 8
UL: 4 Nm (36 lb-in) for AWG 6
Lifespan, mechanical
10000 operations
Design verification as per IEC/EN - technical data
Rated operational current for specified heat dissipation (In)
8 A
Heat dissipation per pole, current-dependent
0 W
Static heat dissipation, non-current-dependent
0 W
Heat dissipation capacity
0 W
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
75 °C
Ambient operating temperature (UL) - min
-5 °C
Ambient operating temperature (UL) - max
40 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional information
Accessories required
Z-IHK-NA 113895
Current limiting class
3
Features
Additional equipment possible
Fitted with:
Z-IS/SPE-1TE 274418
Functions
Current limiting circuit breaker
Internal resistance at room temperature (single-pole, 50 Hz)
19 mΩ
Special features
- Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
- Tripping signal contact for subsequent installation Z-NHK 248434
Suitable for
Flush-mounted installation
Used with
FAZ-XAA-NA110-415V AC 102036 (Shunt trip release)FAZ-XAA-NA12-110V AC 102037 (Shunt trip release)
Miniature circuit breaker
FAZ-RT
Miniature circuit breaker
FAZ-RT
| Caractéristique | Valeur |
|---|---|
| Profondeur d'encastrement (EF000218) | 60 mm |
| Caractéristique de déclenchement (EF000889) | D |
| Nombre de pôles (total) (EF008618) | 4 |
| Nombre de pôles protégés (EF005548) | 4 |
| Courant nominal assigné (EF000227) | 8 A |
| Tension assignée (EF000228) | 240 V |
| Tension d'isolation assignée Ui (EF001366) | 440 V |
| Tension nominale de tenue aux chocs Uimp (EF011980) | 4 kV |
| Pouvoir de coupure assigné Icn selon EN 60898 à 230 V (EF009556) | 10 kA |
| Type de tension (EF000187) | CA |
| Pouvoir de coupure assigné Icn selon EN 60898 à 400 V (EF009555) | 15 kA |
| Pouvoir de coupure assigné Icu selon IEC 60947-2 à 230 V (EF009557) | 10 kA |
| Pouvoir de coupure assigné Icu selon IEC 60947-2 à 400 V (EF009558) | 14 kA |
| Fréquence (EF000416) | 50 Hz |
| Puissance dissipée (EF005387) | 5.2 W |
| Classe de limitation d'énergie (EF002568) | 3 |
| Montage encastré (EF007517) | Oui |
| Conducteur neutre branché simultanément (EF005997) | Non |
| Catégorie de surtension (EF002569) | 3 |
| Degré de pollution (EF002570) | 2 |
| Dispositifs auxiliaires possibles (EF008148) | Oui |
| Largeur dans les unités de partition (EF002950) | 4 |
| Classe de protection (IP) (EF005474) | IP20 |
| Température ambiante en fonctionnement (EF007515) | -25 °C |
| Section de conducteur connectable multifilaire (EF007343) | 1 mm² |
| Section de conducteur connectable monofilaire (EF007337) | 1 mm² |
| Antidéflagration (EF004663) | Non |
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| FAZ-D8/4-RT Y7-190892 190892 EN_190783.pdf | 80 Kbytes |
|
