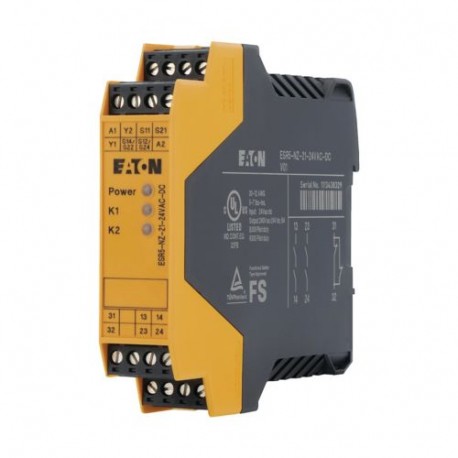

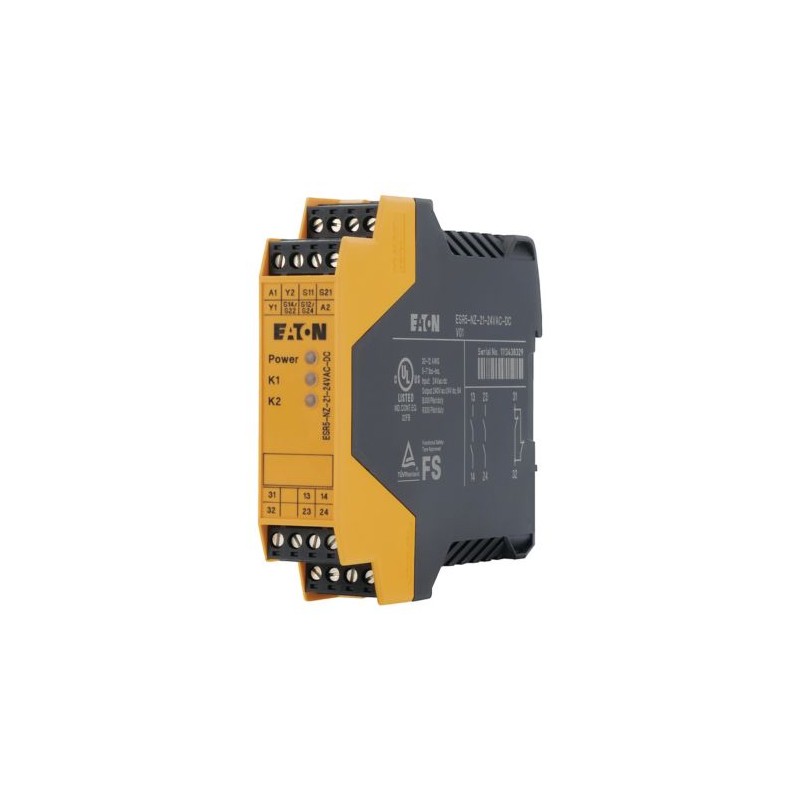

ESR5-NZ-21-24VAC-DC 118703 Y7-118703 EATON ELECTRIC Relais pour commande bimanuelle, 24VDC/AC, 2 canals, 2 c..
ESR5-NZ-21-24VAC-DC
118703
Y7-118703
EATON-MOELLER
Relais pour commande bimanuelle, 24VDC/AC, 2 canals, 2 circuits de validation
ESR5-NZ-21-24VAC-DC
Eaton ESR5 Safety two-hand relay, 24VDC/AC, 2-channel, 2 enabling paths
Relais bimain double voie, pour la mise en œuvre des fonctions de base Porte de protection et fonction bimain, tension d’alimentation 24VDC ou 24VAC 50/60Hz, 2 chemins de courant d’activation (IEC/EN 60204 catégorie d’arrêt 0), 1 chemin de courant de signal, carénage d’étiquette de jeu de barres selon EN 50274 avec actionnement vertical par la face avant - étanche aux doigts et au dos de la main, adapté aux applications selon EN574 TypIIIC, cat. 4 selon EN 954-1 / PL e selon EN ISO 13849-1 / SILCL 3 selon IEC 62061 / SIL 3 selon IEC 61508, degré de protection IP20, emplacement d’installation IP54 minimum, testé TÜV, tension d’impulsion nominale 6 kV / isolation de sécurité, isolation renforcée
Relais > Commutateur bi-manuel
Relais temporisés (KETR, KEMR, KESR)
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Related products
▲Achetés habituellement ensemble
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton ESR5 Safety relay
Catalog Number
118703
Model Code
ESR5-NZ-21-24VAC-DC
EAN
4015081168439
Product Length/Depth
114.5 mm
Product Height
99 mm
Product Width
22.5 mm
Product Weight
0.165 kg
Certifications
IEC 62061
UL
CSA-C22.2 No. 14-95
EN 50178
CE
UL Category Control No.: NKCR; NKCR7
UL 508
UL report applies to both US and Canada
UL File No.: E29184
IEC 61508, Parts 1-7
2014/30/EU
IEC/EN 60204
CSA Class No.: 3211-83; 3211-03
EN 574 Part no. IIIC
Certified by UL for use in Canada
EN ISO 13849-1
Machines 2006/42/EG
UL
CSA-C22.2 No. 14-95
EN 50178
CE
UL Category Control No.: NKCR; NKCR7
UL 508
UL report applies to both US and Canada
UL File No.: E29184
IEC 61508, Parts 1-7
2014/30/EU
IEC/EN 60204
CSA Class No.: 3211-83; 3211-03
EN 574 Part no. IIIC
Certified by UL for use in Canada
EN ISO 13849-1
Machines 2006/42/EG
Feature & Functions
Electric connection type
Screw connection
Features
Reinforced insulation
Automatic start
2 Non-delayed enable current paths
Basic insulation
Monitoring of external contactor/expansion unit
Safe insulation
Automatic start
2 Non-delayed enable current paths
Basic insulation
Monitoring of external contactor/expansion unit
Safe insulation
Fitted with:
Approval according to UL
Detachable clamps
Feedback circuit
Approval for TÜV
Detachable clamps
Feedback circuit
Approval for TÜV
Functions
2-channel
Two-hand function
Two-hand function
Material
Contacts: silver tin oxide, gold plated (AgSnO2, 0.2 µm Au)
Enclosure: Polyamide (PA), not reinforced
Enclosure: Polyamide (PA), not reinforced
General information
Connection type
M3 screw terminals
Current consumption
60 mA, DC
125 mA, AC
125 mA, AC
Degree of protection
IP20
Terminals: IP20
Installation location: ≥ IP54
Enclosure: IP20
Terminals: IP20
Installation location: ≥ IP54
Enclosure: IP20
Duty factor
100 %
Emitted interference
According to EN 61000-6-4
Interference immunity
According to EN 61000-6-2
LED indicator
Status indication of SmartWire-DT network: Green LED
Lifespan, mechanical
10,000,000 Operations
Lifetime
240 month
Mounting method
Rail mounting possible
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Mounting width
22.5 mm
Overvoltage category
III
Pollution degree
2
Power loss
Normally 5.16 W
Product category
Electronic safety relays
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
Recovery time
< 1000 ms
Safety performance level (EN ISO 13849-1)
Level e
Safety parameter (IEC 62061)
SILCL 3, Safety integrity level claim limit
EN 574 Type III C
SIL 3, Safety integrity level, In accordance with IEC 61508
Cat. 4, Category
12.1 x 10-10, PFHd, Probability of failure per hour
SIL 3, Safety integrity level
EN 574 Type III C
SIL 3, Safety integrity level, In accordance with IEC 61508
Cat. 4, Category
12.1 x 10-10, PFHd, Probability of failure per hour
SIL 3, Safety integrity level
Stop category (IEC 60204)
0
Suitable for
Safety functions
Module used to safely interrupt electrical circuits
Safety relay for monitoring two-hand control per EN 574 Type IIIC and protective door switches
Module used to safely interrupt electrical circuits
Safety relay for monitoring two-hand control per EN 574 Type IIIC and protective door switches
Switching frequency
Max. 0.5 Hz, Input data
Type
Voltage type
AC/DC
Ambient conditions, mechanical
Mounting position
As required
Prooftest
240 Months (High Demand)
Switching capacity
5 A at 3600 O/h, AC-15 at 230 V, Outputs
In accordance with IEC 60947-5-1, Outputs
0.4 W
5 A at 3600 O/h, DC-13 at 24 V, Outputs
In accordance with IEC 60947-5-1, Outputs
0.4 W
5 A at 3600 O/h, DC-13 at 24 V, Outputs
Vibration resistance
10 - 150 Hz, Amplitude: 0.15 mm, Acceleration: 2 g, (IEC/EN 60068-2-6)
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Altitude
Max. 2000 m
Ambient operating temperature - min
-20 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
Dry heat to IEC 60068-2-2
Damp heat, constant, to IEC 60068-2-3
Damp heat, constant, to IEC 60068-2-3
Environmental conditions
Condensation: Non-condensing
Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2, No. 14-95
Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2, No. 14-95
Operating temperature - min
-20 °C
Operating temperature - max
55 °C
Relative humidity
< 75 %
Terminal capacities
Terminal capacity
1 x (0.2 – 2.5) mm², solid
2 x (0.2 – 1) mm², solid
2 x (0.25 – 1) mm², flexible with ferrule
24 - 12 AWG, solid or stranded
1 x (0.25 – 2.5) mm², flexible with ferrule
2 x (0.2 – 1) mm², solid
2 x (0.25 – 1) mm², flexible with ferrule
24 - 12 AWG, solid or stranded
1 x (0.25 – 2.5) mm², flexible with ferrule
Stripping length (main cable)
7 mm
Screwdriver size
0.6 x 3.5 mm, Terminal screws
2, Terminal screw, Pozidriv screwdriver
2, Terminal screw, Pozidriv screwdriver
Tightening torque
0.6 Nm, Screw terminals
Electrical rating
Inrush current
0.025 - 6 A
Power supply circuit
3 W (AC operated 50/60 Hz)
1.5 W (DC operated)
1.5 W (DC operated)
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
24 V
Rated control supply voltage (Us) at AC, 60 Hz - min
20.4 V
Rated control supply voltage (Us) at AC, 60 Hz - max
24 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
24 V
Rated insulation voltage (Ui)
250 V
Rated operational voltage
24 V AC/DC (power supply)
230 V AC
Approx. 24 V DC at input, starting and feedback circuit
230 V AC
Approx. 24 V DC at input, starting and feedback circuit
Short-circuit current
2.3 A, Input data
Short-circuit protection
Short-circuit proof, 24 V, Fuse for control circuit supply, Control circuit
Fuse 6 A gL/gG, For output circuits, External
Fuse 6 A gL/gG, For output circuits, External
Short-circuit protection rating
6A gL/gG, NEOZED (N/C), Output fuse, External, Output data
10A gL/gG, NEOZED (N/O), Output fuse, External, Output data
10A gL/gG, NEOZED (N/O), Output fuse, External, Output data
Input/Output
Breaking power
110 W max., resistive load (τ = 0 ms), at 110 V DC
42 W max., inductive load (τ = 40 ms), at 110 V DC
42 W max., inductive load (τ = 40 ms), at 220 V DC
144 W max., resistive load (τ = 0 ms), at 24 V DC
288 W max., resistive load (τ = 0 ms), at 48 V DC
42 W max., inductive load (τ = 40 ms), at 24 V DC
1500 VA, max., resistive load (τ = 0 ms), at 250 V AC
42 W max., inductive load (τ = 40 ms), at 48 V DC
88 W max., resistive load (τ = 0 ms), at 220 V DC
42 W max., inductive load (τ = 40 ms), at 110 V DC
42 W max., inductive load (τ = 40 ms), at 220 V DC
144 W max., resistive load (τ = 0 ms), at 24 V DC
288 W max., resistive load (τ = 0 ms), at 48 V DC
42 W max., inductive load (τ = 40 ms), at 24 V DC
1500 VA, max., resistive load (τ = 0 ms), at 250 V AC
42 W max., inductive load (τ = 40 ms), at 48 V DC
88 W max., resistive load (τ = 0 ms), at 220 V DC
Input
< 500 ms, Simultaneity for inputs 1/2
Nominal current
60 A
Number of outputs (safety related, delayed) with contact
0
Number of outputs (safety related, undelayed) with contact
2
Number of outputs (signaling function, delayed) with contact
0
Number of outputs (signaling function, undelayed) with contact
1
Permissible total cable resistance
50 Ω (input and starting circuits for UN)
Pick-up time
50 ms typ. (at Uₑ in automatic mode)
50 ms typ. (K1, K2 - for UN automatic mode)
50 ms typ. (K1, K2 - for UN manual operation)
50 ms typ. (at Uₑ in manual mode)
50 ms typ. (K1, K2 - for UN automatic mode)
50 ms typ. (K1, K2 - for UN manual operation)
50 ms typ. (at Uₑ in manual mode)
Quadratic summation current
72 A² (ITH² = I1² + I2²)
Reset time
Normally 20 ms
Resistance
22 Ω (impedance)
Switching voltage
250 V
Uninterrupted current
6 A N/O, Limiting continuous current
6 A N/C, Limiting continuous current
6 A N/C, Limiting continuous current
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
5.16 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caractéristique | Valeur |
|---|---|
| Finition du raccordement électrique (EF003961) | Screw connection |
| Montage possible sur barres profilées (EF003972) | true |
| Avec pinces amovibles (EF003340) | true |
| Type de tension d'alimentation (EF002991) | AC/DC |
| Tension d'alimentation CA 50 Hz (EF007532) | 24 V |
| Tension d'alimentation CA 60 Hz (EF007533) | 24 V |
| Tension d'alimentation CC (EF007534) | 24 V |
| Finition de la fonction de commutation des entrées (EF006969) | Normally closed contact and normally open contact |
| Avec boucle de retour (EF003343) | true |
| Avec entrée de démarrage (EF003342) | false |
| Type de tension de commande 1 (EF002954) | AC/DC |
| Tension de commande 1 (EF002952) | 24 V |
| Type de tension de commande 2 (EF002955) | AC/DC |
| Tension de commande 2 (EF002953) | 24 V |
| Nombre de sorties, orientées sur la sécurité, non retardées, avec contact (EF003344) | 2 |
| Nombre de sorties, orientées sur la sécurité, retardées, avec contact (EF003345) | 0 |
| Nombre de sorties, orientées sur la sécurité, non retardées, semiconducteur (EF003346) | 0 |
| Nombre de sorties, orientées sur la sécurité, retardées, semiconducteur (EF003347) | 0 |
| Nombre de sorties, fonction de signalisation, non retardées, avec contact (EF003348) | 1 |
| Nombre de sorties, fonction de signalisation, retardées, avec contact (EF003349) | 0 |
| Nombre de sorties, fonction de signalisation, non retardées, semiconducteur (EF003350) | 0 |
| Nombre de sorties, fonction de signalisation, retardées, semiconducteur (EF003351) | 0 |
| Type de tension de fonctionnement (EF005294) | AC/DC |
| Tension de fonctionnement CA 50 Hz (EF008206) | 24 V |
| Tension de fonctionnement CA 60 Hz (EF008207) | 24 V |
| Tension de fonctionnement CC (EF008208) | 24 V |
| Courant de commutation assigné (EF006706) | 5 A |
| Adapté aux fonctions de sécurité (EF001597) | true |
| Classe d'exigences de sécurité conformément à l'EN 574 (EF003435) | Type III C |
| SIL conformément à IEC 61508 (EF009889) | 3 |
| Niveau de performance selon EN ISO 13849-1 (EF007399) | Level e |
| Avec homologation BG BIA (EF004145) | false |
| Avec homologation selon UL (EF001783) | true |
| Largeur (EF000008) | 22.5 mm |
| Hauteur (EF000040) | 99 mm |
| Profondeur (EF000049) | 114.5 mm |
| With approval for TÜV (EFDE0031) | true |
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF EATON EMR ERT EMT EN.pdf | 3 Mbytes |
|
| PDF EATON SAFETY RELAYS ESR5 EN.pdf | 1 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| ESR5-NZ-21-24VAC-DC Y7-118703 118703 ES_118703.pdf | 719 Kbytes |
|
Commentaires: (0) ▲
Aucun commentaire sur le produit encore.
Écrire commentaire
Sous forme de peau
| Score: |
|
| Nom: | |
| Email: | |
| Titre: | |
| Commentaire: | |
| Recommandez-vous acheter ce produit? | |
|
|
|
| Écrire commentaire | |
Toutes les évaluations que nous recevons des articles que nous proposons sont réels et vérifiés. Un petit geste, mais très précieux. Je vous remercie pour cette minute que vous passez à nous laisser votre avis et note sur les produits, car il nous aide à continuer à améliorer et à offrir encore plus la qualité de service.
