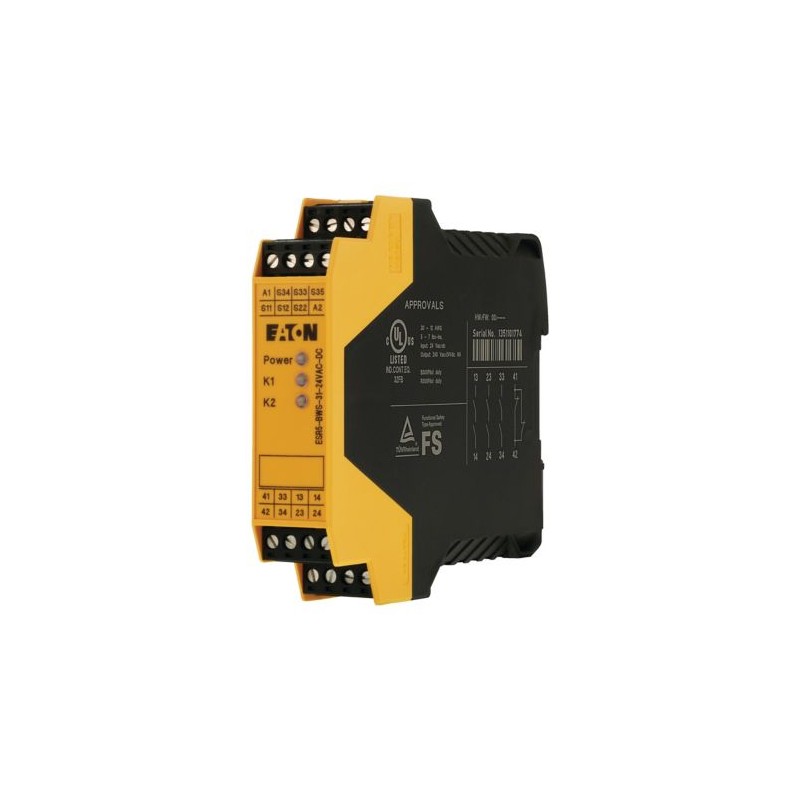

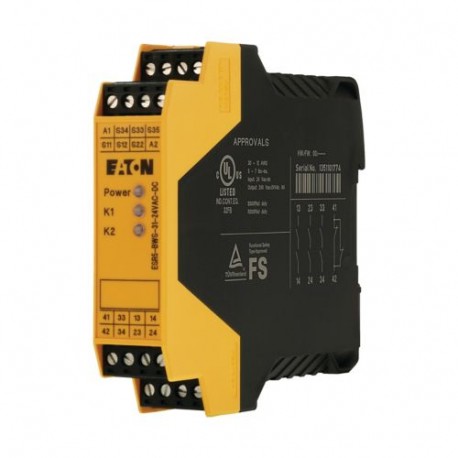

ESR5-BWS-31-24VAC-DC 180413 Y7-180413 EATON ELECTRIC Modules de sécurité pour surveillance des arrêts d'urge..
ESR5-BWS-31-24VAC-DC
180413
Y7-180413
EATON-MOELLER
Modules de sécurité pour surveillance des arrêts d'urgence/protecteurs mobiles/barrières lumineuses, 24 V DC/AC, 3 circuits de validation
ESR5-BWS-31-24VAC-DC
Eaton ESR5 Safety relays for controlled stop/protective door/light curtain monitoring, 24 V DC/AC, 3 enabling paths
Relais de sécurité pour la mise en œuvre de l’arrêt d’urgence / de la surveillance des portes de protection et des barrières immatérielles fonctions de base jusqu’à SIL 3 ou Cat. 4, PL e selon EN ISO 13849, fonctionnement monocanal ou double canal, 3 voies de courant d’activation, tension nominale d’entrée 24 V AC/DC
Relais > Appareil de surveillance de circuit électrique à sécurité intrinsèque
Relais temporisés (KETR, KEMR, KESR)
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton ESR5 Safety relay
Catalog Number
180413
Model Code
ESR5-BWS-31-24VAC-DC
EAN
4015081755677
Product Length/Depth
114.5 mm
Product Height
99 mm
Product Width
22.5 mm
Product Weight
0.165 kg
Certifications
UL Category Control No.: NKCR; NKCR7
UL report applies to both US and Canada
UL File No.: E29184
CSA-C22.2 No. 14-95
EN ISO 13849-1
IEC/EN 61000-6-4
CE
IEC 62061
2014/30/EU
IEC/EN 60204
IEC/EN 61000-6-2
UL
Certified by UL for use in Canada
CSA Class No.: 3211-83; 3211-03
UL 508
Machines 2006/42/EG
UL report applies to both US and Canada
UL File No.: E29184
CSA-C22.2 No. 14-95
EN ISO 13849-1
IEC/EN 61000-6-4
CE
IEC 62061
2014/30/EU
IEC/EN 60204
IEC/EN 61000-6-2
UL
Certified by UL for use in Canada
CSA Class No.: 3211-83; 3211-03
UL 508
Machines 2006/42/EG
Feature & Functions
Electric connection type
Screw connection
Features
External contactor monitoring
Safe insulation
6 kV between input circuit and enable current paths
Basic insulation
Automatic/manually controlled start
Feedback current path
3 Non-delayed enable current paths
Reinforced insulation
Safe insulation
6 kV between input circuit and enable current paths
Basic insulation
Automatic/manually controlled start
Feedback current path
3 Non-delayed enable current paths
Reinforced insulation
Fitted with:
Feedback circuit
Detachable clamps
Approval for TÜV
Approval according to UL
Detachable clamps
Approval for TÜV
Approval according to UL
Functions
2-channel
1-channel
1-channel
General information
Connection type
M3 screw terminals
Current consumption
150 mA, AC
70 mA, DC
70 mA, DC
Degree of protection
Terminals: IP20
Installation location: ≥ IP54
Enclosure: IP20
IP20
Installation location: ≥ IP54
Enclosure: IP20
IP20
Emitted interference
According to EN 61000-6-4
Interference immunity
According to EN 61000-6-2
LED indicator
Status indication of SmartWire-DT network: Green LED
Model
Basic device
Mounting method
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Rail mounting possible
Rail mounting possible
Mounting width
22.5 mm
Overvoltage category
III
Pollution degree
2
Power loss
Normally 5.16 W
Product category
Electronic safety relays
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
4000 V AC
Recovery time
1000 ms
Safety performance level (EN ISO 13849-1)
Level e
Safety parameter (IEC 62061)
Cat. 4, Category
SILCL 3, Safety integrity level claim limit
SIL 3, Safety integrity level
EN 574 Type III C
SIL 3, Safety integrity level, In accordance with IEC 61508
5.56 x 10-10, PFHd, Probability of failure per hour
SILCL 3, Safety integrity level claim limit
SIL 3, Safety integrity level
EN 574 Type III C
SIL 3, Safety integrity level, In accordance with IEC 61508
5.56 x 10-10, PFHd, Probability of failure per hour
Stop category (IEC 60204)
0
Suitable for
Module used to safely interrupt electrical circuits
Monitoring of position switches
Safety relay for monitoring emergency stop and protective door switch and light curtains
Monitoring of emergency-stop circuits
Monitoring of position switches
Safety relay for monitoring emergency stop and protective door switch and light curtains
Monitoring of emergency-stop circuits
Type
Voltage type
AC/DC
Ambient conditions, mechanical
Mounting position
As required
Prooftest
75 Months (Low Demand)
240 Months (High Demand)
240 Months (High Demand)
Switching capacity
5 A at 360 O/h, AC-15 at 230 V, Outputs
3 A at 3600 O/h, DC-13 at 24 V, Outputs
6 A at 360 O/h, DC-13 at 24 V, Outputs
In accordance with IEC 60947-5-1, Outputs
3 A at 3600 O/h, AC-15 at 230 V, Outputs
3 A at 3600 O/h, DC-13 at 24 V, Outputs
6 A at 360 O/h, DC-13 at 24 V, Outputs
In accordance with IEC 60947-5-1, Outputs
3 A at 3600 O/h, AC-15 at 230 V, Outputs
Vibration resistance
10 - 150 Hz, Amplitude: 0.15 mm, Acceleration: 2 g, (IEC/EN 60068-2-6)
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Altitude
Max. 2000 m
Ambient operating temperature - min
-20 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Environmental conditions
Condensation: Non-condensing
Clearance in air and creepage distances according to EN 50178
Clearance in air and creepage distances according to EN 50178
Operating temperature - min
-20 °C
Operating temperature - max
55 °C
Relative humidity
< 75 %
Terminal capacities
Terminal capacity
2 x (0.25 – 1) mm², flexible with ferrule
2 x (0.2 – 1) mm², solid
1 x (0.2 – 2.5) mm², solid
24 - 12 AWG, solid or stranded
1 x (0.25 – 2.5) mm², flexible with ferrule
2 x (0.2 – 1) mm², solid
1 x (0.2 – 2.5) mm², solid
24 - 12 AWG, solid or stranded
1 x (0.25 – 2.5) mm², flexible with ferrule
Stripping length (main cable)
7 mm
Screwdriver size
2, Terminal screw, Pozidriv screwdriver
0.6 x 3.5 mm, Terminal screws
0.6 x 3.5 mm, Terminal screws
Tightening torque
0.6 Nm, Screw terminals
Electrical rating
Inrush current
0.4 A
Rated control supply voltage (Us) at AC, 50 Hz - min
20.4 V
Rated control supply voltage (Us) at AC, 50 Hz - max
26.4 V
Rated control supply voltage (Us) at AC, 60 Hz - min
20.4 V
Rated control supply voltage (Us) at AC, 60 Hz - max
24 V
Rated control supply voltage (Us) at DC - min
24 V
Rated control supply voltage (Us) at DC - max
24 V
Rated operational voltage
Approx. 24 V DC at input, starting and feedback circuit
24 V AC/DC (power supply)
24 V AC/DC (power supply)
Short-circuit protection
Fuse 10 A gL/gG NEOZED, For output circuits, External
Short-circuit protection rating
10A gL/gG, NEOZED (N/O), Output fuse, External, Output data
Input/Output
Breaking power
288 W max., resistive load (τ = 0 ms), at 48 V DC
33 W max., inductive load (τ = 40 ms), at 220 V DC
144 W max., resistive load (τ = 0 ms), at 24 V DC
77 W max., resistive load (τ = 0 ms), at 110 V DC
1500 VA, max., resistive load (τ = 0 ms), at 250 V AC
48 W max., inductive load (τ = 40 ms), at 24 V DC
40 W max., inductive load (τ = 40 ms), at 48 V DC
35 W max., inductive load (τ = 40 ms), at 110 V DC
88 W max., resistive load (τ = 0 ms), at 220 V DC
33 W max., inductive load (τ = 40 ms), at 220 V DC
144 W max., resistive load (τ = 0 ms), at 24 V DC
77 W max., resistive load (τ = 0 ms), at 110 V DC
1500 VA, max., resistive load (τ = 0 ms), at 250 V AC
48 W max., inductive load (τ = 40 ms), at 24 V DC
40 W max., inductive load (τ = 40 ms), at 48 V DC
35 W max., inductive load (τ = 40 ms), at 110 V DC
88 W max., resistive load (τ = 0 ms), at 220 V DC
Input
∞ ms, Simultaneity for inputs 1/2
Number of inputs
One- and two-channel
Number of outputs (safety related, delayed) with contact
0
Number of outputs (safety related, undelayed) with contact
0
Number of outputs (signaling function, delayed) with contact
0
Number of outputs (signaling function, undelayed) with contact
1
Pick-up time
25 ms typ. (K1, K2 - for UN manual operation)
100 ms typ. (K1, K2 - for UN automatic mode)
100 ms typ. (at Uₑ in automatic mode)
25 ms typ. (at Uₑ in manual mode)
100 ms typ. (K1, K2 - for UN automatic mode)
100 ms typ. (at Uₑ in automatic mode)
25 ms typ. (at Uₑ in manual mode)
Quadratic summation current
72 A² (ITH² = I1² + I2² + I3²)
Reset time
Normally 10 ms
Switching voltage
250 V
Uninterrupted current
6 A N/C, Limiting continuous current
6 A N/O, Limiting continuous current
6 A N/O, Limiting continuous current
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
5.16 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caractéristique | Valeur |
|---|---|
| Modèle (EF000010) | Appareil de base |
| Montage possible sur barres profilées (EF003972) | Oui |
| Avec pinces amovibles (EF003340) | Oui |
| Finition du raccordement électrique (EF003961) | Borne à vis |
| Type de tension d'alimentation (EF002991) | CA/CC |
| Tension d'alimentation CA 50 Hz (EF007532) | 24 V |
| Tension d'alimentation CA 60 Hz (EF007533) | 24 V |
| Tension d'alimentation CC (EF007534) | 24 V |
| Adapté à la surveillance de commutateurs de position (EF007270) | Oui |
| Adapté à la surveillance de circuits d'arrêt d'urgence (EF007268) | Oui |
| Adapté à la surveillance de vannes (EF007272) | Non |
| Adapté à la surveillance d'équipements de protection optoélectroniques (EF007269) | Non |
| Adapté à la surveillance de capteurs tactiles (EF007271) | Non |
| Adapté à la surveillance de commutateurs magnétiques (EF007266) | Non |
| Adapté à la surveillance de commutateurs de proximité (EF007267) | Non |
| Évaluation des entrées (EF008245) | À un et deux canaux |
| Puissance absorbée (EF000346) | 5.16 W |
| Avec entrée de démarrage (EF003342) | Non |
| Avec fonction silence (EF004057) | Non |
| Avec boucle de retour (EF003343) | Oui |
| Retardement du déclenchement (EF001129) | 0 s |
| Type de tension de commande 1 (EF002954) | CA/CC |
| Tension de commande 1 (EF002952) | 24 V |
| Type de tension de commande 2 (EF002955) | CA/CC |
| Tension de commande 2 (EF002953) | 24 V |
| Nombre de sorties, orientées sur la sécurité, non retardées, avec contact (EF003344) | 0 |
| Nombre de sorties, orientées sur la sécurité, retardées, avec contact (EF003345) | 0 |
| Nombre de sorties, orientées sur la sécurité, non retardées, semiconducteur (EF003346) | 0 |
| Nombre de sorties, orientées sur la sécurité, retardées, semiconducteur (EF003347) | 0 |
| Nombre de sorties, fonction de signalisation, non retardées, avec contact (EF003348) | 1 |
| Nombre de sorties, fonction de signalisation, retardées, avec contact (EF003349) | 0 |
| Nombre de sorties, fonction de signalisation, non retardées, semiconducteur (EF003350) | 0 |
| Nombre de sorties, fonction de signalisation, retardées, semiconducteur (EF003351) | 0 |
| Type de tension de fonctionnement (EF005294) | CA/CC |
| Tension de fonctionnement CA 50 Hz (EF008206) | 24 V |
| Tension de fonctionnement CA 60 Hz (EF008207) | 24 V |
| Tension de fonctionnement CC (EF008208) | 24 V |
| Courant de commutation assigné (EF006706) | 6 A |
| Type de sécurité selon IEC 61496-1 (EF004105) | Sans |
| Catégorie d'arrêt selon IEC 60204 (EF007498) | 0 |
| Niveau de performance selon EN ISO 13849-1 (EF007399) | Niveau e |
| SIL conformément à IEC 61508 (EF009889) | 3 |
| Avec homologation BG BIA (EF004145) | Non |
| Avec homologation selon UL (EF001783) | Oui |
| Largeur (EF000008) | 22.5 mm |
| Hauteur (EF000040) | 99 mm |
| Profondeur (EF000049) | 114.5 mm |
| With approval for TÜV (EFDE0031) | Oui |
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF EATON EMR ERT EMT EN.pdf | 3 Mbytes |
|
| PDF EATON SAFETY RELAYS ESR5 EN.pdf | 1 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| ESR5-BWS-31-24VAC-DC Y7-180413 180413 ES_180413.pdf | 766 Kbytes |
|
Commentaires: (0) ▲
Aucun commentaire sur le produit encore.
Écrire commentaire
Sous forme de peau
| Score: |
|
| Nom: | |
| Email: | |
| Titre: | |
| Commentaire: | |
| Recommandez-vous acheter ce produit? | |
|
|
|
| Écrire commentaire | |
Toutes les évaluations que nous recevons des articles que nous proposons sont réels et vérifiés. Un petit geste, mais très précieux. Je vous remercie pour cette minute que vous passez à nous laisser votre avis et note sur les produits, car il nous aide à continuer à améliorer et à offrir encore plus la qualité de service.
