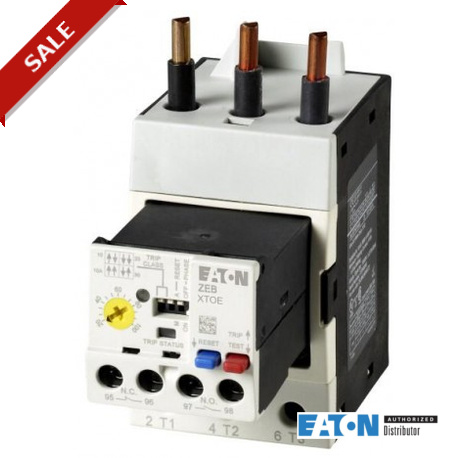

ZEB150-100-GF 136507 Y7-136507 EATON ELECTRIC Relais de surcharge, électronique, 20-100A, +protection contre.. Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

ZEB150-100-GF 136507 Y7-136507 EATON ELECTRIC Relais de surcharge, électronique, 20-100A, +protection contre..

ZEB150-100-GF

136507

Y7-136507

EATON-MOELLER

Relais de surcharge, électronique, 20-100A, +protection contre les défauts à la terre

Relais thermique électronique; 1 NON + 1 NC; 20-100 A; Avec détection des défauts de mise à la terre

Eaton Moeller® series ZEB Overload relay, Direct mounting, Earth-fault protection: with, Ir= 20 - 100 A, 1 N/O, 1 N/C ZEB150-100-GF

Relais de surcharge, Gamme de produits : Relais de surcharge électroniques, Sensibilité aux pannes de phase : IEC/EN 60947, VDE 0660 partie 102, Description : Bouton de test/arrêt, Bouton-poussoir de réinitialisation, Réinitialisation manuelle/automatique sélectionnable, Protection en cas de démarrage sous charge (classe 10 à classe 20), Type de montage : Montage direct, Contacts auxiliaires N/O = Normalement ouvert : 1 N/O, Contacts auxiliaires N/C = Normalement fermé : 1 N/C, À utiliser avec : DILM80, DILM95, DILM115, DILM150, DIULM80, DIULM95, DIULM115, DIULM150, SDAINLM140, SDAINLM165, SDAINLM200, SDAINLM260, Normes : IEC/EN 60947, VDE 0660, UL, CSA, Indice de protection : IP20

Plus de détails


Appareillage industriel basse tension > Relais électronique de protection contre les surcharges

Interrupteurs de protection de moteur électroniques

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $612.51
Prix unitaire: $612.51
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Related products

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series ZEB Electronic overload relay
Catalog Number
136507
Model Code
ZEB150-100-GF
EAN
4015081332878
Product Length/Depth
140.5 mm
Product Height
120 mm
Product Width
56 mm
Product Weight
0.74 kg
Certifications
UL Category Control No.: NKCR
UL File No.: E1230
UL 508
VDE 0660
CSA-C22.2 No. 14
CE
CSA Class No.: 3211-03
CSA
IEC/EN 60947
IEC/EN 60947-4-1
UL
CSA File No.: 2290956
Catalog Notes
Rated operational current: Switch-on and switch-off conditions based on DC-13, time constant as specified.

Features & Functions

Earth fault protection
Trip at approx. > 0.5 x Ir in 2 s
Yes
Trip at approx. > 1.5 x Ir in 1 s
Features
Phase-failure sensitivity (according to IEC/EN 60947, VDE 0660 Part 102)
Functions
Filament bulb (24 V)

General

Class
Adjustable
Degree of protection
IP20
Mounting method
Direct attachment
Direct mounting
Overload release current setting - min
20 A
Overload release current setting - max
100 A
Overvoltage category
III
Pollution degree
3
Product Category
Electronic overload relays ZEB
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
6000 V (auxiliary circuits)
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Shock duration 10 ms
Suitable for
Branch circuits, (UL/CSA)
Voltage type
Self powered

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
65 °C
Ambient operating temperature (enclosed) - max
45 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Terminal capacities

Terminal capacity (flexible with ferrule)
2 x (0.75 - 2.5) mm², Control circuit cables
Terminal capacity (solid)
1 x (16 - 50) mm², Main cables
2 x (0.75 - 4) mm², Control circuit cables
Terminal capacity (solid/stranded AWG)
1 x (6 - 1), Main cables
2 x (18 - 12), Control circuit cables
Stripping length (main cable)
14 mm
Stripping length (control circuit cable)
8 mm
Screw size
M3.5, Terminal screw, Control circuit cables
Screwdriver size
1 x 6 mm, Terminal screw, Control circuit cables, Standard screwdriver
2, Terminal screw, Control circuit cables, Pozidriv screwdriver
Tightening torque
7 lb-in, Screw terminals
0.8 - 1.2 Nm, Screw terminals, Control circuit cables

Electrical rating

Conventional thermal current ith of auxiliary contacts (1-pole, open)
5 A
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V
Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Rated operational current (Ie) at AC-15, 120 V
1.5 A
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
1.5 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
0.9 A
Rated operational current (Ie) at DC-13, 110 V
0.4 A
Rated operational current (Ie) at DC-13, 220 V, 230 V
0.2 A
Rated operational current (Ie) at DC-13, 24 V
0.9 A
Rated operational current (Ie) at DC-13, 60 V
0.75 A
Rated operational voltage (Ue) at AC - max
690 V
Short-circuit protection rating
Max. 6 A gG/gL, fuse, Without welding, Auxiliary and control circuits
Short-circuit current rating (high fault at 600 V)
100 kA, Fuse, SCCR (UL/CSA)
200 A, Class J, max. Fuse, SCCR (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
R300, DC operated (UL/CSA)
B600, AC operated (UL/CSA)

Contacts

Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
1
Number of auxiliary contacts (normally open contacts)
1
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1

Design verification

Equipment heat dissipation, current-dependent Pvid
25.4 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
8.47 W
Rated operational current for specified heat dissipation (In)
100 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM only

Electrical connection type of main circuit
Screw connection
Adjustable current range - min
20 A
Adjustable current range - max
100 A
Reset function
Push-button
Automatic

ETIM for 136507 Appareillage industriel basse tension (EC001080)
Caractéristique Valeur
Type de montage (EF000003) Montage direct
Type de raccordement du circuit principal (EF006819) Borne à vis
Plage de courant ajustable (EF008211) 20 A
Alimentation externe requise (EF003292) Non
Tension d'alimentation de courant nominal à CA 50 Hz (EF003978) 0 V
Tension d'alimentation de courant nominal à CA 60 Hz (EF003979) 0 V
Tension d'alimentation de courant nominal CC (EF003980) 0 V
Nombre de contacts auxiliaires à ouverture (EF001377) 1
Nombre de contacts auxiliaires à fermeture (EF001376) 1
Nombre de contacts auxiliaires à deux directions (EF003531) 0
Type de tension de fonctionnement (EF005294) CA
Tension de fonctionnement CA 50 Hz (EF008206) 230 V
Tension de fonctionnement CA 60 Hz (EF008207) 230 V
Tension de fonctionnement CC (EF008208) 0 V
Classe de déclenchement (EF006668) Ajustable
Fonction de réinitialisation automatique (EF011941) Oui
Entrée de fonction de réinitialisation (EF011940) Non
Bouton-poussoir de réinitialisation automatique (EF011942) Oui
Largeur (EF000008) 56 mm
Hauteur (EF000040) 120 mm
Profondeur (EF000049) 140.5 mm

Datasheet - PDF

▲
Titre: Taille: Type:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
ZEB150-100-GF Y7-136507 136507 ES_136480.pdf 463 Kbytes ZEB150-100-GF Y7-136507 136507 ES_136480.pdf
