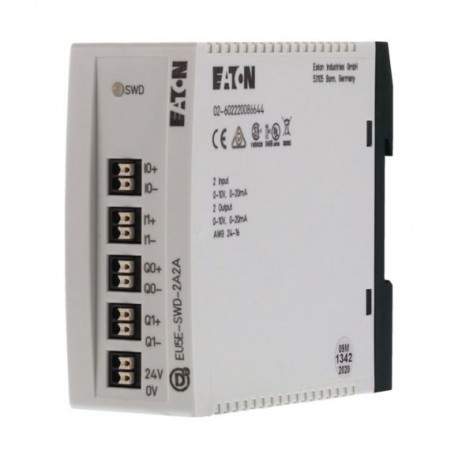

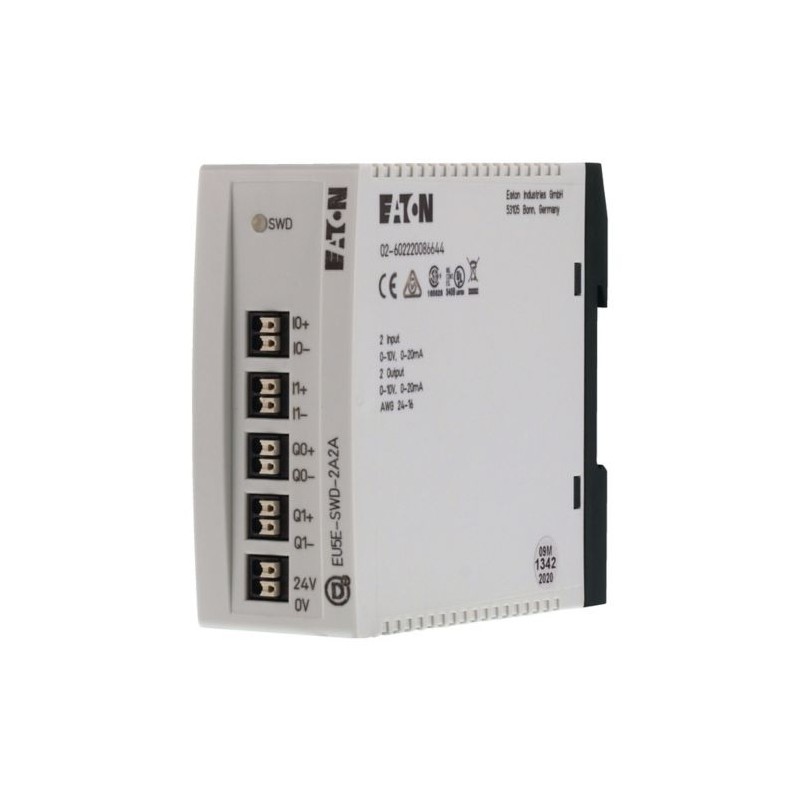

EU5E-SWD-2A2A 144063 Y7-144063 EATON ELECTRIC Module d'entrée/sortie, SmartWire-DT,24V DC,2entr. analog,2sor..
EU5E-SWD-2A2A
144063
Y7-144063
EATON-MOELLER
Module d'entrée/sortie, SmartWire-DT,24V DC,2entr. analog,2sort. analog,entr. analog/sort. analog. config. 0-10V/0-20mA
EU5E-SWD-2A2A
Eaton EU5E SWD I/O module, 2 analog inputs, 2 analog outputs, parameterizable 0-10V/0-20mA
Commande industrielle API > Bus de terrain, périphérie déc. - module entrée/sortie analogique
Smartwire Darwin
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Achetés habituellement ensemble
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton EU5E I/O module
Catalog Number
144063
Model Code
EU5E-SWD-2A2A
EAN
4015081405930
Product Length/Depth
102 mm
Product Height
90 mm
Product Width
35 mm
Product Weight
0.09 kg
Certifications
UL Category Control No.: NKCR
IEC/EN 61131-2
UL
CSA
UL File No.: E29184
CSA Class No.: 3211-07
CSA File No.: 2324643
IEC/EN 61131-2
UL
CSA
UL File No.: E29184
CSA Class No.: 3211-07
CSA File No.: 2324643
Catalog Notes
alog outputs 0?10V or 0?20 mA
Features & Functions
Electric connection type
Flat plug-in connection
Features
Output, current
Fieldbus connection over separate bus coupler possible
Input, current
Analog outputs configurable
Output signal configurable
Input, voltage
Output, voltage
Analog inputs configurable
Fieldbus connection over separate bus coupler possible
Input, current
Analog outputs configurable
Output signal configurable
Input, voltage
Output, voltage
Analog inputs configurable
Functions
Adjustable parameter settings
For connection of analog I/O signals
For connection of analog I/O signals
General
Current consumption
22 mA, SmartWire-DT network
Degree of protection
IP20
NEMA 1
NEMA 1
Mounting method
Wall mounting/direct mounting
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Rail mounting possible
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Rail mounting possible
Overvoltage category
II
Pollution degree
2
Product category
SmartWire-DT slave
Repetition accuracy
0.5 % (Analog inputs)
0.5 % (Analog outputs)
0.5 % (Analog outputs)
Residual ripple
≤ 5 % (input voltage)
Terminal capacity
0.25 - 1.5 mm² (24 - 16 AWG), flexible with ferrule, Terminal for I/O sensor
0.2 - 1.5 mm² (AWG 24 - 16), solid, Terminal for I/O sensor
0.2 - 1.5 mm² (AWG 24 - 16), solid, Terminal for I/O sensor
Type
Voltage type
DC
Ambient conditions, mechanical
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Mounting position
As required
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Dry heat to IEC 60068-2-2
Dry heat to IEC 60068-2-2
Environmental conditions
Condensation: prevent with appropriate measures
Operating temperature - min
-25 °C
Operating temperature - max
55 °C
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Electro magnetic compatibility
Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Burst impulse
2 kV, Signal cable, according to IEC/EN 61131-2, Level 3
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
2 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
2 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Electromagnetic fields
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Radio interference class
Class B (EN 55011)
Surge rating
1 kV, Surge power cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC
1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC
1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC
Electrical rating
Input current
0 - 20 mA (Analog inputs)
Input voltage
0 - 10 V (Analog inputs)
Output current
0 - 20 mA, Analog outputs
Max. 10 mA
Max. 10 mA
Output voltage
0 - 10 V (analog outputs)
Power loss
1.5 W
Rated operational voltage
24 V DC (-15 %/+ 20 % - power supply)
Short-circuit protection
Yes, Short-circuit proof, Analog outputs
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
0 VDC
Supply voltage at DC - max
0 VDC
Communication
Connection to SmartWire-DT
Yes
Connection type
Plug, 8-pole, SmartWire-DT
Push in terminals, Supply and I/O sensor
Connection plug: external device plug SWD4-8SF2-5, SmartWire-DT
Push in terminals, Supply and I/O sensor
Connection plug: external device plug SWD4-8SF2-5, SmartWire-DT
Data transfer rate
Setting automatically
250 kBit/s, SmartWire-DT
250 kBit/s, SmartWire-DT
LED indicator
Status indication of SmartWire-DT network: Green LED
Protocol
Other bus systems
Station
SmartWire-DT slave, SmartWire-DT network
Input/Output
Conversions
20 ms, Analog inputs
20 ms, Analog outputs
20 ms, Analog outputs
Dielectric strength
30 kV/mm, according to IEC 60243-1
Input
Current
Inputs configurable (0 - 10 V, 0 - 20 mA)
Voltage
Inputs configurable (0 - 10 V, 0 - 20 mA)
Voltage
Input impedance
< 250 Ω
Load resistance
< 500 Ω
Number of inputs (analog)
2
Number of outputs (analog)
2
Output
Outputs configurable (0 - 10 V, 0 - 20 mA)
Resolution
- 12 Bit (Analog inputs)
- 12 Bit (Analog outputs)
Total error
± 1 %, Outputs
± 1 %, Inputs
± 1 %, Inputs
Safety
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Inputs for SmartWire-DT: yes
Outputs to SmartWire-DT: yes
Outputs to SmartWire-DT: yes
Protection against polarity reversal
Yes
Yes, for supply voltage (Siemens MPI optional)
Yes, for supply voltage (Siemens MPI optional)
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1.5 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
