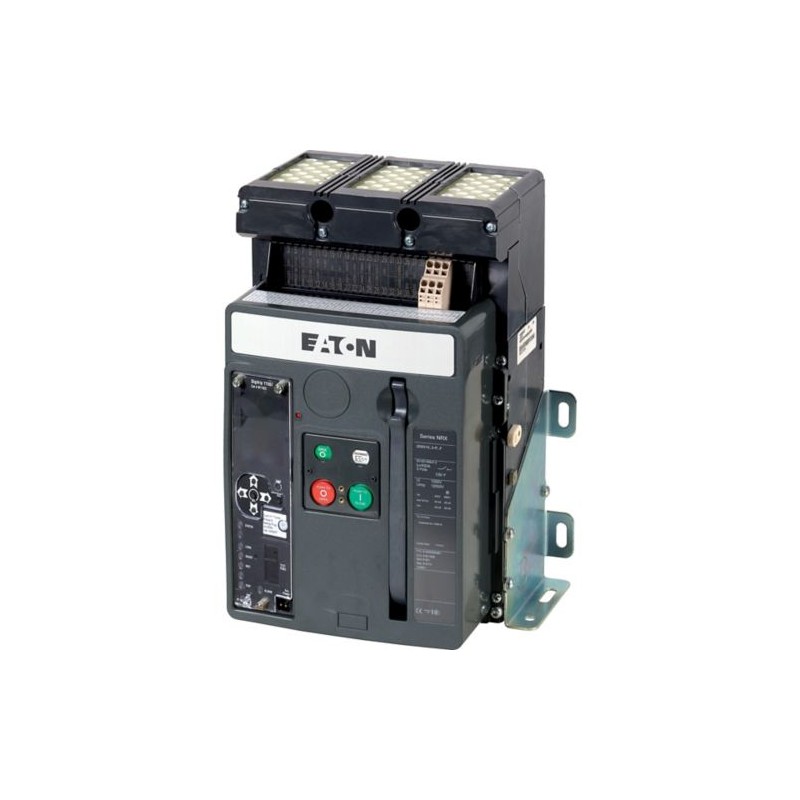

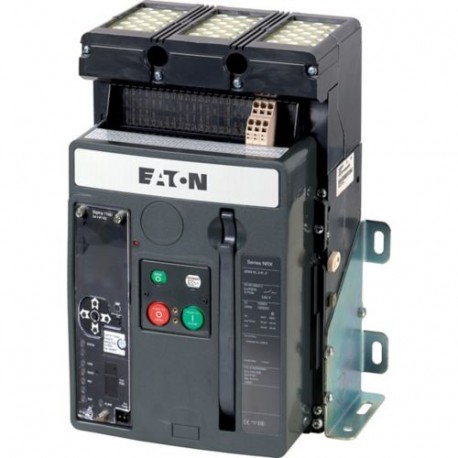

IZMX16B3-P06F 123356 EATON ELECTRIC Disjoncteur 3p, 630A, fixe
IZMX16B3-P06F
123356
EATON-MOELLER
Disjoncteur 3p, 630A, fixe
Disjoncteur IZMX16 (Disjoncteurs à air/interrupteurs-sectionneurs), 3 pôles, Plage de courant : Jusqu’à 4000 A, Courant nominal = courant nominal ininterrompu( In = Iu) : 630 A, jusqu’à 440 V 50/60 Hz( Icu) : 42 kA, jusqu’à 440 V 50/60 Hz( Ics) : 42 kA, Déclenchement de surcharge, min.( Ir) : 315 A, Déclencheur de surcharge, max.( Ir) : 630 A, Type d’installation : Fixe, Standard/Homologation : IEC, Fonction de protection : Protection professionnelle
Appareillage industriel basse tension > Disjoncteur pour protection de transformateur, de générateur et d'installation
Home > EATON - MOELLER
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton Moeller series IZMX/INX circuit-breaker
Catalog Number
123356
Model Code
IZMX16B3-P06F
EAN
4015081209613
Product Length/Depth
584 mm
Product Height
597 mm
Product Width
521 mm
Product Weight
18.715 kg
Compliances
IEC/EN 60947
IEC
IEC
Delivery program
Type
Frame
IZMX16
Number of poles
Three-pole
Amperage Rating
630 A
Release system
Electronic release
Technical data - electrical
Voltage rating at AC
690 V AC
Rated insulation voltage (Ui)
1000 V
Rated impulse withstand voltage (Uimp)
12 kV AC
Rated uninterrupted current (Iu)
630 A
Rated uninterrupted current (Iu) at 50°C
630 A
Rated uninterrupted current (Iu) at 60°C
630 A
Rated uninterrupted current (Iu) at 70°C
630 A
Rated short-time withstand current (t = 1 s)
42 kA
Overload release current setting - min
315 A
Overload release current setting - max
630 A
Short-circuit release delayed setting - min
630 A
Short-circuit release delayed setting - max
6300 A
Short-circuit release non-delayed setting
2 - 10 x Ir
Short-circuit release non-delayed setting - min
0 A
Short-circuit release non-delayed setting - max
7560 A
Adjustment range short-term delayed short-circuit release - min
1260 A
Adjustment range short-term delayed short-circuit release - max
6300 A
Adjustment range undelayed short-circuit release - min
1260 A
Adjustment range undelayed short-circuit release - max
7560 A
Rated short-circuit breaking capacity at 400 V, 50 Hz
42 kA
Rated short-circuit making capacity up to 440 V, 50/60 Hz
88 kA
Rated short-circuit making capacity up to 690 V, 50/60 Hz
88 kA
Closing delay via spring release
30 ms
Electrical connection type of main circuit
Rail connection
Number of standard mechanical operations per hour - max
60
Operating sequence up to 690 V, 50/60 Hz (IEC/EN 60947)
42 kA
Utilization category
B
Overvoltage category
III
Pollution degree
3
Direction of incoming supply
As required
Lifespan, electrical
10000 operations (switching capacity)
10000 operations (switching cycles ON/OFF, with maintenance)
10000 operations (switching cycles ON/OFF, with maintenance)
Technical data - mechanical
Device construction
Built-in device fixed built-in technique
Mounting Method
Fixed
Degree of protection
IP41 with door sealing frame
IP20
IP55 with protective cover
IP20
IP55 with protective cover
Protection
Professional protection
Number of auxiliary contacts (change-over contacts)
2
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Position of connection for main current circuit
Back side
Weight of fixed mounting version (3-pole)
19 kg
Weight of fixed mounting version (4-pole)
24 kg
Actuator type
Push button
Terminal capacity (copper bar)
5 mm x 50 mm (2x) for withdrawable units (black)
5 mm x 50 mm (2x) for fixed mounting (black)
5 mm x 50 mm (2x) for fixed mounting (black)
Lifespan, mechanical
20000 operations (switching capacity, with maintenance)
12500 switching cycles (ON/OFF)
12500 switching cycles (ON/OFF)
Design verification as per IEC/EN 61439 - technical data
Rated operational current for specified heat dissipation (In)
630 A
Equipment heat dissipation, current-dependent
36 W
Heat dissipation at rated current with fixed mounting
36 W
Ambient operating temperature details
Device with LCD-display -20 °C - 70 °C
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
-25 °C
Ambient storage temperature - max
70 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional information
Features
Motor drive optional
Fitted with:
Switched-off indicator
Special features
- IZMX-DTP-PTM external voltage measuring module required
- suitable for zone selectivity
- suitable for communication
- with integrated system monitor
- with integrated test possibility
- with graphic LCD color display
- optionally fittable by user with comprehensive accessories
- These are values used in separate switchgear. The actual values will depend on the temperature around the circuit-breaker, which is influenced by the ambient temperature, the degree of protection (IP), the mounting height, the partitions, and any external ventilation. Depending on the specific switchgear design, this may result in derating, which can then be compensated for by increasing the cross-sectional area. Temperature rise tests in the specific switchgear can provide specific and detailed information.
Suitable for
Main conducting paths with 23 kA in IT electrical power networks up to U = 440 V
Used with
Air circuit breakers/switch-disconnector
Open circuit breaker
Open circuit breaker
| Caractéristique | Valeur |
|---|---|
| Courant permanent nominal Iu (EF001389) | 630 A |
| Courant de commutation de court-circuit limite nominal Icu à 400 V, 50 Hz (EF007048) | 42 kA |
| Réglage de courant du déclencheur de surcharge (EF002336) | 315 A |
| Plage de réglage du déclencheur de court-circuit retardé de courte durée (EF007129) | 1260 A |
| Plage de réglage du déclencheur de court-circuit non retardé (EF007131) | 1260 A |
| Type de construction de l'appareil (EF008240) | Technique d'encastrement fixe pour appareil encastré |
| Protection intégrée contre les mises à la terre accidentelles (EF007296) | Non |
| Type de raccordement du circuit principal (EF006819) | Raccordement par rail |
| Adapté à un montage de profilés chapeaux (EF007250) | Non |
| Montage de profilés chapeaux en option (EF008904) | Non |
| Nombre de contacts auxiliaires à ouverture (EF001377) | 0 |
| Nombre de contacts auxiliaires à fermeture (EF001376) | 0 |
| Nombre de contacts auxiliaires à deux directions (EF003531) | 2 |
| Relais de signalisation de déclenchement disponible (EF007006) | Oui |
| Avec déclencheur à sous-tension intégré (EF001390) | Non |
| Nombre de pôles (EF001391) | 3 |
| Position du raccordement de circuit principal (EF006671) | Arrière |
| Finition de l'élément d'actionnement (EF006976) | Contact à poussoir |
| Appareil complet avec unité de protection (EF008906) | Non |
| Commande motorisée intégrée (EF006697) | Non |
| Commande motorisée en option (EF007386) | Oui |
| Classe de protection (IP) (EF005474) | IP20 |
