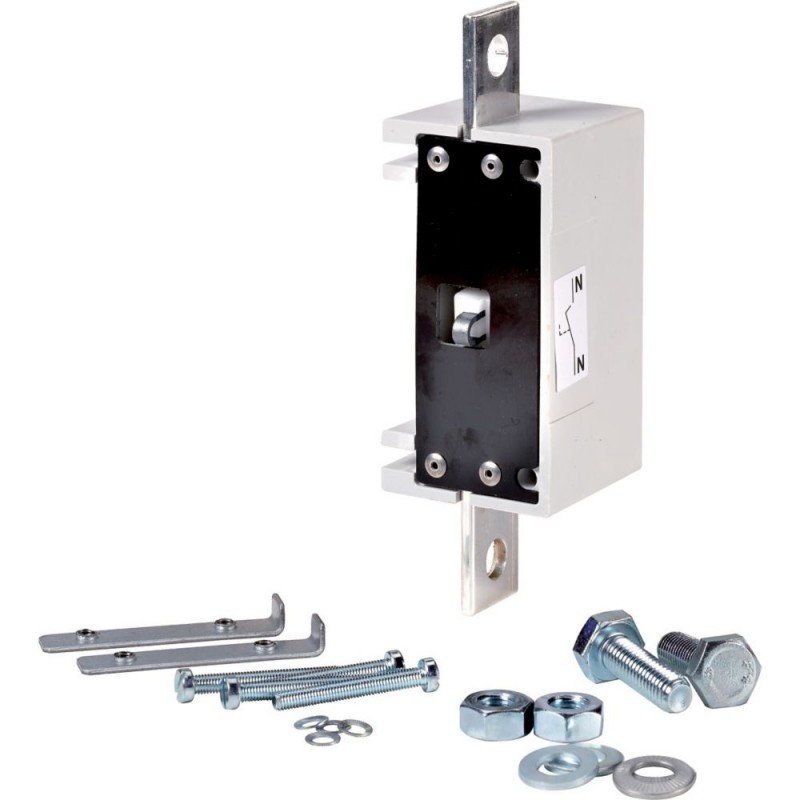

QSANS40/63A 1319462 Y8-1319462 EATON ELECTRIC Conducteur neutre, commutable, 40/63A Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

QSANS40/63A 1319462 Y8-1319462 EATON ELECTRIC Conducteur neutre, commutable, 40/63A

QSANS40/63A

1319462

Y8-1319462

EATON-MOELLER

Conducteur neutre, commutable, 40/63A

QSANS40/63A

Eaton QSA Neutral conductor, switched neutral, 40/63A

Conducteur neutre (commuté), 40/63 A, pour QSA réf. 40N0-QSA 63N0 63N1-QSA

Plus de détails


Appareillage industriel basse tension > Accessoires pour connectique basse tension

DUMECO Interrupteurs-sectionneurs

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $86.33
Prix unitaire: $86.33
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton QSA Accessory Neutral conductor
Catalog Number
1319462
Model Code
QSANS40/63A
EAN
8711426842175
Product Length/Depth
123 mm
Product Height
55 mm
Product Width
57 mm
Product Weight
0.23 kg
Compliances
CE

General

Accessory/spare part type
Neutral terminal
Mounting method
Side mounting
Type

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
4.5 W
Rated operational current for specified heat dissipation (In)
63 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 1319462 Appareillage industriel basse tension (EC002498)
Caractéristique Valeur
Type d'accessoire (EF000215) Borne de neutre
Accessoire (EF013236) Oui
Pièce détachée (EF013237) Non

Datasheet - PDF

▲
Titre: Taille: Type:
PDF EATON INDUSTRIAL SWITCH DISCONNECTORS EN.pdf 8 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
QSANS40/63A Y8-1319462 1319462 FR_1320207.pdf 2 Mbytes QSANS40/63A Y8-1319462 1319462 FR_1320207.pdf
