> EATON - MOELLER>Boites isolantes>CI-K2-145-TS 206883 Y7-206883 ELECTRIC Coffret isolant, HxLxP 160x100x145mm, +profilé-support
ANUNCIAR
Produit précédent Produit suivant

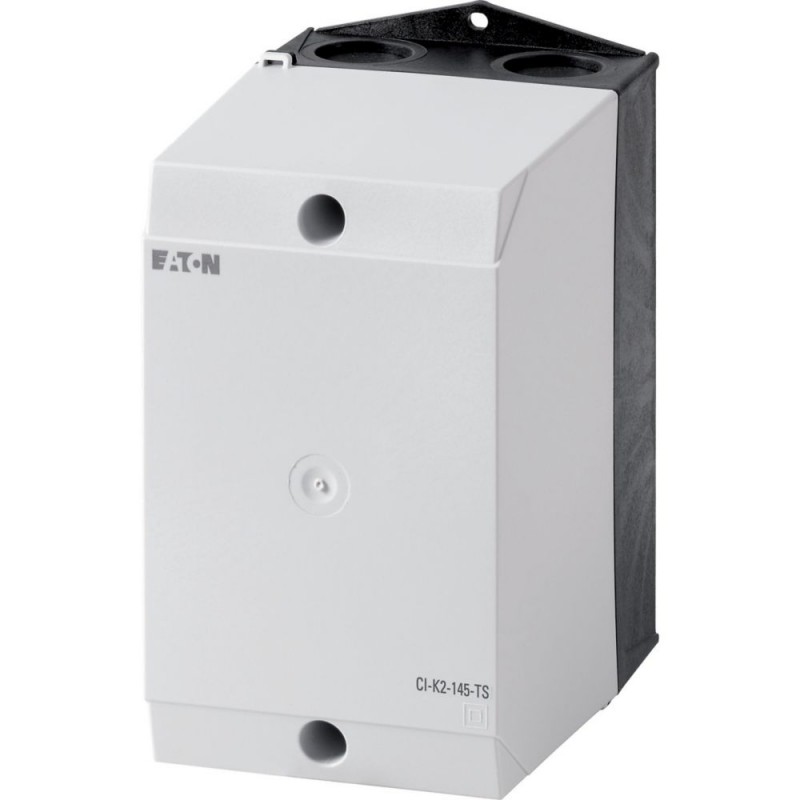

CI-K2-145-TS 206883 Y7-206883 EATON ELECTRIC Coffret isolant, HxLxP 160x100x145mm, +profilé-support Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

CI-K2-145-TS 206883 Y7-206883 EATON ELECTRIC Coffret isolant, HxLxP 160x100x145mm, +profilé-support

CI-K2-145-TS

206883

Y7-206883

EATON-MOELLER

Coffret isolant, HxLxP=160x100x145mm, +profilé-support

CI-K2-145-TS

Eaton Moeller® series CI-K Insulated enclosure, HxWxD=160x100x145mm, +mounting rail CI-K2-145-TS

Boîtier isotherme, Avec rail de montage selon IEC/EN 60715, Gamme de produits : Petits boîtiers CI-K, Boîtiers de base, Unité unique, Degré de protection : Avant IP65, IP65, avec entrée de câble traversante, Matériau : Polycarbonate renforcé de fibres de verre, Couleur : Base de boîtier RAL 9005, noir, Opérateur uniquement RAL 7035, gris clair, Description : Débouchures métriques d’entrée de câble en haut, en bas et dans la plaque arrière, Entrée du câble de commande, Indicateur de lampe L‐... peut être monté dans la base défonçable M20/M25, Entrée de câble : membrane d’entrée de câble enfonçable, Dimensions Largeur : 100 mm, Hauteur : 160 mm, Profondeur : 145 mm, Profondeur de montage pour rail de montage 7,5 mm Hauteur : 118 mm , Normes : IEC/EN 60529, DIN EN 62208

Plus de détails


Appareillage industriel basse tension > Enveloppe vide pour amoire de distribution

Boites isolantes

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $37.37
Prix unitaire: $37.37
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Related products

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series CI-K Insulated enclosure
Catalog Number
206883
Model Code
CI-K2-145-TS
EAN
4015082068837
Product Length/Depth
181 mm
Product Height
145 mm
Product Width
100 mm
Product Weight
0.495 kg
Certifications
UL94: VO/1.5 mm thickness
UL94: HB
IEC 60068-2-11
IEC/EN 60529
DIN EN 62208
Catalog Notes
Lamp indicator L‐… can be mounted in base knock-out M20/M25

Spécifications du produit

Type
Basic enclosure
Features
Halogen free
UV resistance beneath protective shield
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Not applicable.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
Fitted with:
Control cable entry
Mounting rail to IEC/EN 60715
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Enclosure material
1 Ω x 10¹³ (Surface resistance to IEC 60093)
Plastic
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
18.5 W
Heat dissipation per pole, current-dependent Pvid
0 W
Mounting depth
118 mm
Mounting weight capacity - max
0.7 kg
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
Empty enclosures
Enclosure color
Light gray, Cover (RAL 7035)
Black (RAL 9005)
Light gray, Operator (RAL 7035)
Environmental resistance
Resistant against gasoline
Chemical resistant (Base, Cover)
Not resistant to alkalis
Resistant against salt solutions
Not resistant to Mineral oil
Resistant against benzene
Chemical resistant (Push-through membrane (CI-K1/CI-K2) and sealing material)
Resistant against mineral oil
Partly resistant to benzene
Resistant against acids (< 10%)
Partly resistant to acids (> 10%)
Resistant against alkalis
Not resistant to benzene
Resistant against alcohol
Partly resistant to alcohol
Partly resistant to greases
Resistant against greases
Cover material
Glass-fiber reinforced polycarbonate
Degree of protection
IP65
NEMA Other
Model
Surface mounting
Dielectric strength
30 kV/mm, according to IEC 60243-1
Degree of protection (front side)
IP65
Temperature resistance
-40 - 80 °C (gasket)
-40 - 120 °C (enclosure)
Suitable for
Emergency stop
Knockouts
Push-through cable entry diaphragm
Metric cable entry knockouts at the top, bottom and back plate
Radiated heat dissipation with separate mounting
18.5 W (at an ambient temperature of 20 °C)
Surface treatment
Resistant to corrosion
Track resistance
CTI 175 (base, to IEC 60112)
CTI 175 (cover, to IEC 60112)
Water consumption
0.29 % (According to DIN EN ISO 62)

ETIM for 206883 Appareillage industriel basse tension (EC000712)
Caractéristique Valeur
Matériau du boîtier (EF001596) Plastique
Largeur (EF000008) 100 mm
Hauteur (EF000040) 145 mm
Profondeur (EF000049) 181 mm
Avec couvercle transparent (EF001094) Non
Adapté à un arrêt d'urgence (EF001433) Oui
Modèle (EF000010) Montage en saillie
Classe de protection (IP) (EF005474) IP65
Classe de protection (NEMA) (EF011959) Autre

Datasheet - PDF

▲
Titre: Taille: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
CI-K2-145-TS Y7-206883 206883 ES_225325.pdf 1 Mbytes CI-K2-145-TS Y7-206883 206883 ES_225325.pdf
