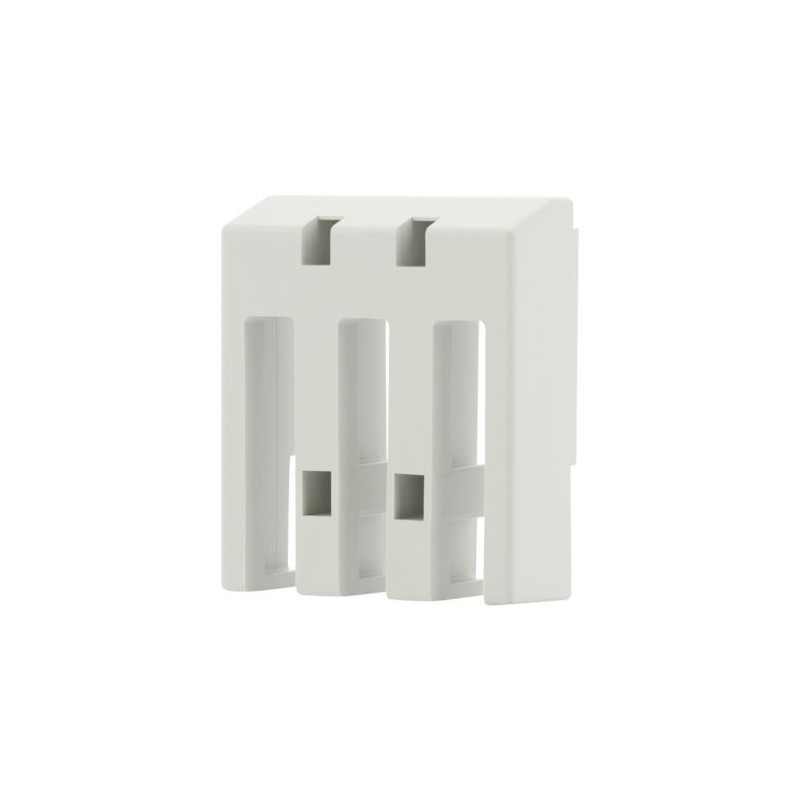

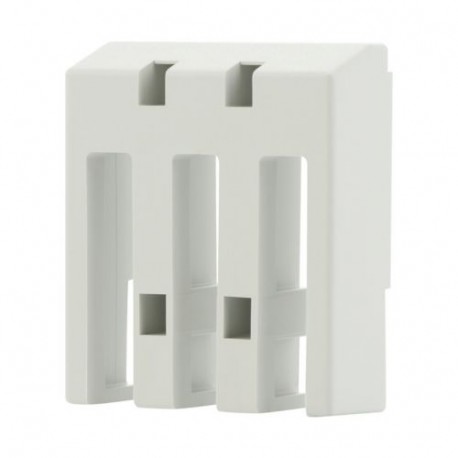

HB-PKZ4 256581 Y7-256581 EATON ELECTRIC Cache de protection, pour PKZ4 Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

HB-PKZ4 256581 Y7-256581 EATON ELECTRIC Cache de protection, pour PKZ4

HB-PKZ4

256581

Y7-256581

EATON-MOELLER

Cache de protection, pour PKZ4

HB-PKZ4

Eaton Moeller® series PKZ4 Shroud, for PKZ4

Enveloppe de borne pour augmenter le degré de protection du PKZM4 sur IP2x, adaptée au raccordement de câbles d’un diamètre extérieur max. de 9,5 mm

Plus de détails


Appareillage industriel basse tension > Accessoires pour connectique basse tension

Interrupteurs de protection moteur

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $5.66
Prix unitaire: $5.66
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Related products

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series PKZ4 Accessory Shroud
Catalog Number
256581
Model Code
HB-PKZ4
EAN
4015082565817
Product Length/Depth
65 mm
Product Height
22.6 mm
Product Width
55 mm
Product Weight
0.024 kg
Certifications
CSA Class No.: 3211-06
UL
CE
UL File No.: E36332
CSA-C22.2 No. 14
UL 508
IEC/EN 60947-4-1
CSA
CSA File No.: 165628
UL Category Control No.: NLRV

Features & Functions

Functions
For increasing the degree of protection of the PKZM4 to to IP2X

General

Accessory/spare part type
Cover
Product category
Accessories
Suitable for
Connecting cables with a max. external diameter of 9.5 mm

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 256581 Appareillage industriel basse tension (EC002498)
Caractéristique Valeur
Type d'accessoire (EF000215) Couvercle
Accessoire (EF013236) Oui
Pièce détachée (EF013237) Non

Datasheet - PDF

▲
Titre: Taille: Type:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
HB-PKZ4 Y7-256581 256581 FR_256581.pdf 109 Kbytes HB-PKZ4 Y7-256581 256581 FR_256581.pdf
